AL-KO Powerline 5300 - 119307 - Main Assembly: 1.2011 - 4.2011

Name: AL-KO Powerline 5300 - 119307 - Main Assembly: 1.2011 - 4.2011
SKU: AK119307_1_1_2011_4_2011-group
Price: 0.65 GBP
Availability: InStock

Part No. AK119307_1_1_2011_4_2011-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline 5300 - 119307 - Main Assembly: 1.2011 - 4.2011

Description

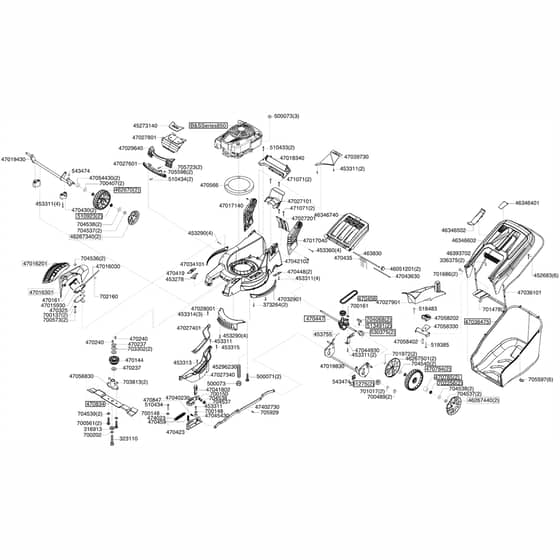

AL-KO Powerline 5300 - 119307 - Main Assembly - Parts Diagram

1.2011 - 4.2011

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
323110	AK457347 Available to backorder	Use Ak457347	£3.20 £2.67
336375	AK336375 Available to backorder	Screw 14mm	£0.82 £0.68
373264	AK373264 Available to backorder	Screw 16mm	£0.89 £0.74
452683	AK336003 Available to backorder	Screw	£1.04 £0.87
453278	AK453278 Available to backorder	Cover	£15.72 £13.10
453290	AK453290 Available to backorder	Screw M5x10	£1.01 £0.84
453311	AK453311 Available to backorder	Bolt	£1.15 £0.96
453313	AK49411802 Available to backorder	No Longer Available	£42.60 £35.50
453314	AK453314 Available to backorder	Screw	£0.86 £0.72
453315	AK453315 Available to backorder	Bolt	£2.22 £1.85
453360	AK453360 Available to backorder	Screw	£3.48 £2.90
453755	AK453755 Available to backorder	Bowden Drive Cable	£21.84 £18.20
462670	AK462670 In stock	Front Wheel - 200mm	£21.88 £18.23
463830	AK463830 Available to backorder	Bar	£2.03 £1.69
470144	AK470144 Available to backorder	Drive Pulley 22mm Centre	£29.64 £24.70
470161	AK470161 Available to backorder	Spring - Side Door	£5.52 £4.60
470237	AK470237 Available to backorder	Spacer 22mm	£1.18 £0.98
470240	AK470240 Available to backorder	Key	£1.08 £0.90
470325	AK470325 Available to backorder	Distance Plate	£2.03 £1.69
470419	AK470419 Available to backorder	Hv Lens / Cover	£5.22 £4.35
470423	AK470423 Available to backorder	Bearing Plate	£10.44 £8.70
470430	AK470430 Available to backorder	Front Axle Clamp	£1.66 £1.38
470435	AK470435 Available to backorder	Grass Flap Spring	£3.96 £3.30
470447	AK470447 Available to backorder	Transmission	£122.04 £101.70
470456	AK470456 Available to backorder	Belt	£19.80 £16.50
470459	AK470459 Available to backorder	Spring	£1.63 £1.36
470566	AK470566 Available to backorder	Cover	£5.76 £4.80
470784	AK474783 Available to backorder	Use Ak474783	£23.16 £19.30
470785	AK470785 Available to backorder	Wheel Spacer	£2.96 £2.47
470834	AK470834 Available to backorder	Blade	£44.16 £36.80
470847	AK47084730 Available to backorder	Use Ak47084730	£6.48 £5.40
471071	AK471071 Available to backorder	Screw M6x25	£1.01 £0.84
474023	AK474023 Available to backorder	Spring	£6.48 £5.40
500071	AK456208 Available to backorder	Ak500071	£1.22 £1.02
500073	AK500073 In stock	Nut	£1.48 £1.23
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.70 £1.42
510434	AK525779 Available to backorder	Use Ak525779	£1.56 £1.30
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
513491	AK513491 In stock	Spring	£0.88 £0.73
518483	AK518483 Available to backorder	Screw St4 x 35mm	£1.01 £0.84
519385	AK519385 Available to backorder	Screw	£1.42 £1.18
530375	AK530375 Available to backorder	Bush	£9.36 £7.80
531275	AK531275 Available to backorder	Pinion	£15.72 £13.10
543474	AK543474 In stock	Circlip	£0.88 £0.73
700137	AK700137 In stock	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700161	AK705986 Available to backorder	Roll Pin	£1.54 £1.28
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700407	AK700407 Available to backorder	Washer M12	£0.84 £0.70
700489	AK700489 In stock	Circlip	£0.89 £0.74
700561	AK700561 Available to backorder	Screw M10x25	£1.42 £1.18
700573	AK706086 Available to backorder	Use Ak706086	£0.84 £0.70
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.84 £0.70
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701686	AK701686 Available to backorder	Screw M5x16	£1.01 £0.84
701972	AK701972 Available to backorder	Washer 13mm	£0.82 £0.68
702160	AK702160 Available to backorder	E-Clip	£1.22 £1.02
702256	AK476715 Available to backorder	Use Ak476715	£8.63 £7.19
703302	AK703302 Available to backorder	Spacer 22mm	£4.68 £3.90
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.84 £0.70
704068	AK704068 In stock	Pawl	£0.88 £0.73
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704539	AK704539 Available to backorder	Washer	£0.78 £0.65
704540	AK704540 Available to backorder	Washer M12	£0.84 £0.70
705597	AK705597 Available to backorder	Clip	£1.06 £0.88
705598	AK705598VA Available to backorder	Nut	£0.86 £0.72
705723	AK705723 Available to backorder	Screw M6x10	£0.86 £0.72
705929	AK705929 Available to backorder	Roll Pin	£0.84 £0.70
45273140	AK45273140 Available to backorder	Alko Plate	£6.36 £5.30
45296230	AK45296230 Available to backorder	Screw	£6.36 £5.30
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.50 £1.25
46267340	AK46267340 Available to backorder	Wheel Cap - 200mm	£3.24 £2.70
46267440	AK46267440 Available to backorder	Wheel Cap	£7.08 £5.90
46267501	AK46267501 Available to backorder	Back Plate	£4.44 £3.70
46346401	AK46346401 Available to backorder	Cover	£1.32 £1.10
46346502	AK46346502 Available to backorder	Box Cover	£5.04 £4.20
46346602	AK46346602 Available to backorder	Upper Grass Box Red	£28.92 £24.10
46346740	AK46346701 In stock	Use Ak46346701	£15.00 £12.50
46393702	AK46393702 Available to backorder	Cover	£3.72 £3.10
47015930	AK47015930 Available to backorder	Side Flap Bracket	£6.60 £5.50
47016030	AK47016030 Available to backorder	Bearing Rod Side Door	£5.64 £4.70
47016201	AK47016201 Available to backorder	Mulch Cover	£11.76 £9.80
47016301	AK47016301 Available to backorder	Side Discharge Chute	£15.24 £12.70
47017040	AK47017040 Available to backorder	Handle Bracket L/H	£31.80 £26.50
47017140	AK47017140 Available to backorder	Handle Bracket R/H	£71.28 £59.40
47018340	AK47018301 In stock	Use Ak47018301	£16.28 £13.57
47019430	AK47019430 Available to backorder	Front Axle	£34.20 £28.50
47019830	AK47019830 Available to backorder	Rear Axle	£48.96 £40.80
47027101	AK47027101 Available to backorder	Transmission Cover	£12.96 £10.80
47027201	AK47027201 Available to backorder	Panel	£7.68 £6.40
47027340	AK47027340 Available to backorder	Case	£23.64 £19.70
47027401	AK47027401 Available to backorder	Cover	£8.88 £7.40
47027601	AK47027601 Available to backorder	Bumper	£8.76 £7.30
47027801	AK44128202 Available to backorder	Use Ak44128202	£15.48 £12.90
47027901	AK47027901 Available to backorder	Mulch Cover	£15.96 £13.30
47028001	AK47028001 Available to backorder	Bumper	£20.16 £16.80
47029640	AK47029601 Available to backorder	Cover	£31.08 £25.90
47032901	AK47032901 Available to backorder	Lh Bumper Cover	£10.56 £8.80
47034101	AK47034101 Available to backorder	R/H Bumper Cover	£7.32 £6.10
47036101	AK47036101 Available to backorder	Grass Box Frame	£53.88 £44.90
47036475	AK456024 Available to backorder	Use Ak456024	£45.60 £38.00
47040230	AK4704023010 Available to backorder	Use Ak4704023010	£10.80 £9.00
47041802	AK47041802 Available to backorder	Lever - Red Button	£1.74 £1.45
47043630	AK47043630 Available to backorder	Bar	£2.22 £1.85
47044930	AK47044930 Available to backorder	Bracket	£8.88 £7.40
47045430	AK47045430 In stock	Sleeve	Was £3.08 £2.57 Special Price £2.22 £1.85
47054430	AK47054430 Available to backorder	Spacer Ring	£4.44 £3.70
47056830	AK47056830 Available to backorder	Blade Boss 22mm	£63.60 £53.00
47058202	AK47058202 Available to backorder	Switch	£5.40 £4.50
47058330	AK47058330 Available to backorder	Plate	£13.92 £11.60
47058402	AK47058402 Available to backorder	Spacer	£3.14 £2.62
47402730	AK47402730 Available to backorder	Connecting Rod	£68.28 £56.90
