AL-KO Powerline 4700 - 119299 - Main Assembly

Name: AL-KO Powerline 4700 - 119299 - Main Assembly
SKU: AK119299_1-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline 4700 - 119299 - Main Assembly

Description

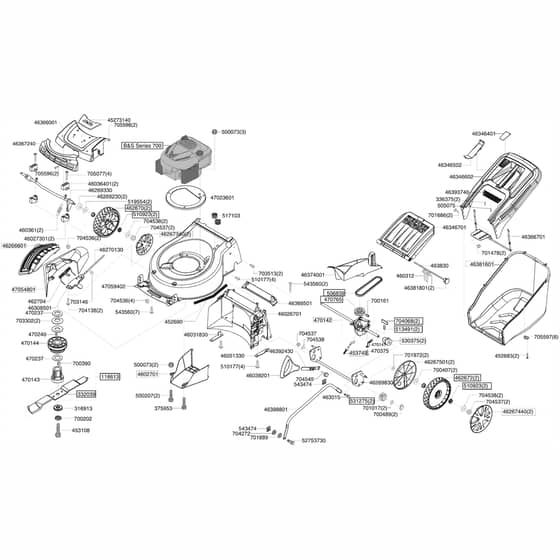

AL-KO Powerline 4700 - 119299 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
332039	AK440125 In stock	Blade 18"	£39.98 £33.32
336375	AK336375 Available to backorder	Screw 14mm	£0.68 £0.57
375953	AK375953 Available to backorder	Screw M8x40	£2.32 £1.93
452683	AK336003 Available to backorder	Screw	£0.84 £0.70
452690	AK452690 Available to backorder	Plate	£13.08 £10.90
453108	AK453108 Available to backorder	Screw 3/8 Unf - 50 (Wnu)	£3.42 £2.85
453749	AK453749 In stock	Bowden Cable Drive 1250mm Nhc	£23.92 £19.93
460312	AK460312 Available to backorder	Spring	£6.56 £5.47
460361	AK460361 Available to backorder	Spring	£2.03 £1.69
462670	AK462670 In stock	Front Wheel - 200mm	£22.80 £19.00
462672	AK474783 Available to backorder	Use Ak470784	£24.32 £20.27
462704	AK462704 Available to backorder	Spring	£8.80 £7.33
463015	AK463015 Available to backorder	Pin	£1.86 £1.55
463830	AK463830 Available to backorder	Bar	£1.92 £1.60
470142	AK470142 Available to backorder	Gear Box	£116.38 £96.98
470143	AK470143 Available to backorder	Blade Boss 22mm	£16.28 £13.57
470144	AK470144 Available to backorder	Drive Pulley 22mm Centre	£31.20 £26.00
470147	AK470147 Available to backorder	Bracket	£1.74 £1.45
470237	AK470237 Available to backorder	Spacer 22mm	£0.98 £0.82
470240	AK470240 Available to backorder	Key	£3.84 £3.20
470375	AK470375 Available to backorder	Screw 20mm	£0.70 £0.58
470765	AK470765 Available to backorder	Pulley	£24.58 £20.48
500073	AK500073 In stock	Nut	£1.28 £1.07
505075	AK505075 Available to backorder	Screw 15mm	£1.12 £0.93
506839	AK506839 Available to backorder	Belt	£18.24 £15.20
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
513491	AK513491 In stock	Spring	£0.78 £0.65
517103	AK517103 Available to backorder	Cable Grommet	£1.68 £1.40
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543474	AK543474 In stock	Circlip	£0.78 £0.65
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700489	AK700489 In stock	Circlip	£0.78 £0.65
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701686	AK701686 Available to backorder	Screw M5x16	£0.84 £0.70
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
703146	AK703146 Available to backorder	Clip	£0.68 £0.57
703302	AK703302 Available to backorder	Spacer 22mm	£4.58 £3.82
703513	AK706562 Available to backorder	Screw St4.8x25	£0.70 £0.58
704068	AK704068 In stock	Pawl	£0.80 £0.67
704138	AK705968 Available to backorder	Use Ak705968	£0.72 £0.60
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
705077	AK705077 Available to backorder	Screw M6x60	£1.02 £0.85
705596	AK705596 Available to backorder	Bolt	£0.73 £0.61
705597	AK705597 Available to backorder	Clip	£0.84 £0.70
705598	AK705598VA Available to backorder	Nut	£0.91 £0.76
45273140	AK45273140 Available to backorder	Alko Plate	£6.12 £5.10
46026701	AK46026701 In stock	Rear Frame	£30.30 £25.25
46027301	AK46027301 Available to backorder	Bearing	£2.36 £1.97
46031830	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
46036401	AK46036401 Available to backorder	Axle Block	£2.20 £1.83
46039201	AK46039201 Available to backorder	Black Handle Height Adj	£6.44 £5.37
46051330	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
46266601	AK44239401 Available to backorder	Flap	£10.36 £8.63
46267340	AK46267340 Available to backorder	Wheel Cap - 200mm	£3.05 £2.54
46267440	AK46267440 Available to backorder	Wheel Cap	£7.50 £6.25
46267501	AK46267501 Available to backorder	Back Plate	£4.28 £3.57
46269230	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
46269330	AK46269330 Available to backorder	Front Axle	£37.99 £31.66
46269830	AK46269830 Available to backorder	Rear Axle	£41.41 £34.51
46270130	AK462701 Available to backorder	Use Ak462701	£4.84 £4.03
46308501	AK46308530 Available to backorder	Use Ak46308530	£7.40 £6.17
46346401	AK46346401 Available to backorder	Cover	£1.04 £0.87
46346502	AK46346502 Available to backorder	Box Cover	£4.90 £4.08
46346602	AK46346602 Available to backorder	Upper Grass Box Red	£27.94 £23.28
46366701	AK46366701 Available to backorder	Bag Frame	£40.72 £33.93
46367240	AK46367240 Available to backorder	Cover	£32.58 £27.15
46369501	AK46369501 Available to backorder	Cover	£5.94 £4.95
46374001	AK46374001 Available to backorder	Mulch Wedge - 46cm	£17.46 £14.55
46381601	AK456010 Available to backorder	Use Ak456010	£38.66 £32.22
46381801	AK46051201 Available to backorder	Use Ak46051201	£1.32 £1.10
46392430	AK46392430 Available to backorder	Control Lever	£10.02 £8.35
46393740	AK46393740 Available to backorder	Cover	£2.74 £2.28
47023601	AK47023601 Available to backorder	Distance Ring	£16.14 £13.45
47059402	AK47059402 Available to backorder	Housing-Red	£130.56 £108.80
52753730	AK527537 In stock	Use Ak527537	£2.94 £2.45
