AL-KO Powerline 4700 - 118350 - Main Assembly: from 9.2004

Name: AL-KO Powerline 4700 - 118350 - Main Assembly: from 9.2004
SKU: AK118350_1_from_9_2004-group
Price: 0.34 GBP
Availability: InStock

Part No. AK118350_1_from_9_2004-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline 4700 - 118350 - Main Assembly: from 9.2004

Description

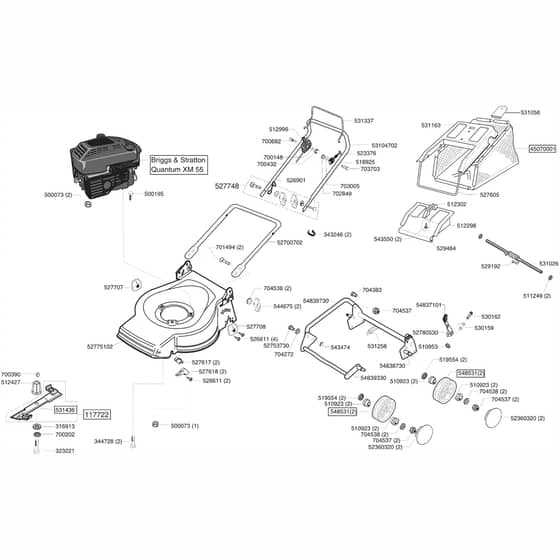

AL-KO Powerline 4700 - 118350 - Main Assembly - Parts Diagram

from 9.2004

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
323221	AK457347 Available to backorder	Bolt	£3.20 £2.67
343246	AK523982 Available to backorder	Use Ak523982	£0.41 £0.34
344728	AK344728 Available to backorder	Ak344728	£1.92 £1.60
500073	AK500073 In stock	Nut	£1.48 £1.23
500195	AK500195 Available to backorder	Screw	£2.42 £2.02
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
510953	AK510953 Available to backorder	Fastener M6	£1.01 £0.84
511249	AK511249 Available to backorder	Grip Fix Washer - 7mm	£1.44 £1.20
512298	AK51229801 Available to backorder	Use Ak51229801	£35.04 £29.20
512427	AK512427 Available to backorder	Blade Boss 22mm	£17.28 £14.40
512996	AK546493 Available to backorder	Use Ak546493	£20.28 £16.90
518925	AK474669 In stock	Cable Holder	£4.36 £3.63
519554	AK519554 In stock	Spacer	£1.55 £1.29
523376	AK525769 In stock	Use Ak525769	£21.64 £18.03
526611	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
526901	AK526901 Available to backorder	Guide	£3.10 £2.58
527617	AK527617 Available to backorder	Bracket	£2.35 £1.96
527618	AK527618 Available to backorder	Bracket	£2.38 £1.98
527707	AK527707 Available to backorder	Axle Bearing Rh	£2.03 £1.69
527708	AK527708 Available to backorder	Axle Bearing Lh	£2.80 £2.33
527748	AK527748 Available to backorder	Handle Fixing Kit	£6.12 £5.10
529192	AK529192 Available to backorder	Spring	£3.12 £2.60
529464	AK529464 Available to backorder	Cover	£11.40 £9.50
530159	AK530159 Available to backorder	Spring	£3.24 £2.70
530162	AK530162 Available to backorder	Pop Rivet	£1.25 £1.04
531026	AK531026 Available to backorder	Rod	£5.52 £4.60
531058	AK53105801 Available to backorder	Use Ak53105801	£5.52 £4.60
531163	AK53116301 Available to backorder	Use Ak53116301	£31.44 £26.20
531337	AK53133702 Available to backorder	Use Ak53133702	£20.52 £17.10
531436	AK470831 Available to backorder	Use Ak470831	£41.28 £34.40
543474	AK543474 In stock	Circlip	£0.88 £0.73
543550	AK543550 Available to backorder	Screw	£1.42 £1.18
544675	AK544675 Available to backorder	Wingnut M8 - Black	£3.04 £2.53
548531	AK548531 Available to backorder	No Longer Available	£22.44 £18.70
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700682	AK700682 Available to backorder	Bolt	£0.84 £0.70
701494	AK701494 Available to backorder	Bolt	£0.84 £0.70
702849	AK704536 Out of stock	Nut M6	£1.13 £0.94
703703	AK703703 Available to backorder	Screw	£1.01 £0.84
704272	AK704272 In stock	Washer 8mm	£1.09 £0.91
704383	AK704383 Available to backorder	Screw M8x22	£0.82 £0.68
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
52360320	AK52360320 Available to backorder	Wheel Cap	£3.96 £3.30
52700702	AK52700740 Available to backorder	Use Ak52700740	£33.72 £28.10
52753730	AK527537 In stock	Use Ak527537	£2.95 £2.46
54837101	AK54837101 Available to backorder	Grip	£6.48 £5.40
