AL-KO New Tec 2400 R Special - 112436 - Main Assembly

Name: AL-KO New Tec 2400 R Special - 112436 - Main Assembly
SKU: AK112436_1-group
Price: 0.68 GBP
Availability: InStock

Part No. AK112436_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO New Tec 2400 R Special - 112436 - Main Assembly

Description

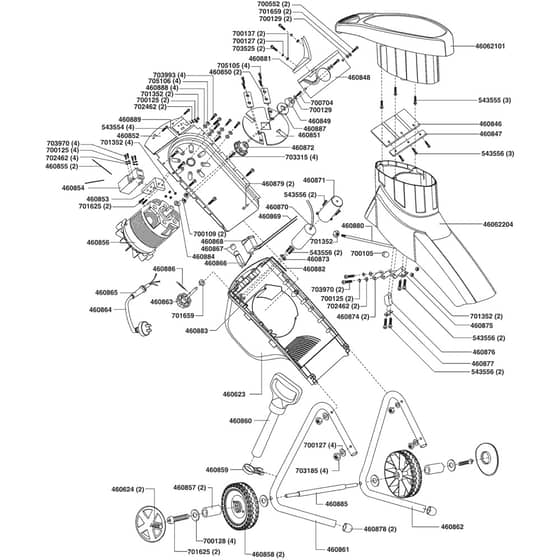

AL-KO New Tec 2400 R Special - 112436 - Main Assembly - Parts Diagram

	Part No.	Details
460850	AK460850 Available to backorder	Blade	£11.40 £9.50
460851	AK460851 Available to backorder	Plate	£33.84 £28.20
460854	AK460854 Available to backorder	Switch	£27.00 £22.50
460868	AK460868 Available to backorder	Switch	£30.48 £25.40
460874	AK460874 Available to backorder	Support	£1.15 £0.96
460875	AK460875 Available to backorder	Plug	£2.03 £1.69
460876	AK460876 Available to backorder	Fixing Bolt	£9.96 £8.30
460884	AK460884 Available to backorder	Disc	£1.01 £0.84
543554	AK543554 Available to backorder	Screw 22mm	£1.42 £1.18
543555	AK543555 Available to backorder	Screw 30mm	£0.82 £0.68
543556	AK543556 Available to backorder	Screw	£1.25 £1.04
700105	AK700105 Available to backorder	Nut	£1.01 £0.84
700109	AK704534 Available to backorder	Use Ak704534	£0.82 £0.68
700127	AK704746 Available to backorder	Use Ak704746	£0.84 £0.70
700128	AK700128 Available to backorder	Washer	£1.01 £0.84
700129	AK700129 Available to backorder	Spring Washer	£1.32 £1.10
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700552	AK700552 Available to backorder	Screw	£1.06 £0.88
700704	AK700704 Available to backorder	Screw M10x30	£1.63 £1.36
701352	AK701352 Available to backorder	Nut	£1.01 £0.84
701625	AK701625 Available to backorder	Screw	£2.22 £1.85
703185	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
703525	AK701850 Available to backorder	No Longer Available	£1.01 £0.84
703970	AK703970 Available to backorder	Screw	£3.48 £2.90
703993	AK703993 Available to backorder	Screw	£1.01 £0.84
705105	AK705105 Available to backorder	Blade Screw	£1.74 £1.45
