AL-KO New Tec 1800 R - 117420 - Main Assembly: from 10.1999

Description

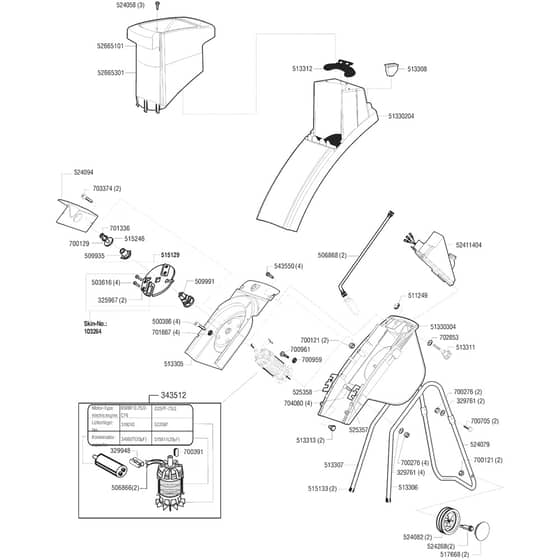

AL-KO New Tec 1800 R - 117420 - Main Assembly - Parts Diagram

from 10.1999

	Part No.	Details
103264	AK103264 Available to backorder	Blades & Screws Pre-Pack	£32.20 £26.83
325967	AK517828 Available to backorder	Use Ak517828	£13.56 £11.30
329761	AK329761 Available to backorder	Curved Washer	£1.76 £1.47
329948	AK329948 Available to backorder	Iso-Body Element 2-Pole	£1.86 £1.55
349827	AK462890 Available to backorder	Capacitor 20Uf	£18.00 £15.00
500386	AK450417 In stock	Use Ak450417	£0.84 £0.70
503616	AK503616 In stock	Blade Screw	£1.55 £1.29
506866	AK506866 Available to backorder	Motor Wires	£4.20 £3.50
509935	AK509935 Available to backorder	Retainer	£7.20 £6.00
511249	AK511249 Available to backorder	Grip Fix Washer - 7mm	£1.44 £1.20
513308	AK460362 Available to backorder	Use Ak460362	£4.80 £4.00
513311	AK51331110 Available to backorder	Use Ak51331110	£5.64 £4.70
513312	AK513312 Available to backorder	Rubber Flap	£4.68 £3.90
513313	AK460958 In stock	Use Ak460958	£1.30 £1.08
515246	AK51524630 In stock	Use Ak51524630	£1.90 £1.58
515811	AK515811 Available to backorder	Capacitor 25Uf	£26.88 £22.40
517668	AK52360004 Available to backorder	Use Ak52360004	£2.10 £1.75
524058	AK450742 Available to backorder	Use Ak450742	£0.82 £0.68
524082	AK526493 Available to backorder	Use Ak526493	£10.68 £8.90
524094	AK460098 Available to backorder	Use Ak460098	£31.08 £25.90
524268	AK524096 In stock	Use Ak524096	£3.41 £2.84
543550	AK543550 Available to backorder	Screw	£1.42 £1.18
700121	AK704537 In stock	Use Ak704537	£1.15 £0.96
700129	AK700129 Available to backorder	Spring Washer	£1.32 £1.10
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
700391	AK700391 Available to backorder	Keyway	£1.27 £1.06
700705	AK700705 Available to backorder	Screw M6x35	£0.82 £0.68
700959	AK700959 Available to backorder	Washer	£0.84 £0.70
700961	AK700961 Available to backorder	Screw	£0.84 £0.70
701336	AK701336 Available to backorder	Bolt 10x35	£1.68 £1.40
701667	AK701667 Available to backorder	Washer	£0.84 £0.70
702853	AK702853 Available to backorder	Washer M8	£0.84 £0.70
703374	AK700963 Available to backorder	Use Ak700963	£1.32 £1.10
704080	AK704080 Available to backorder	Screw	£1.15 £0.96
52665101	AK52665101 Available to backorder	Hopper Top	£25.80 £21.50
52665301	AK52665301 Available to backorder	Housing	£18.12 £15.10
