AL-KO New Tec 1600 R - 117418 - Main Assembly

Name: AL-KO New Tec 1600 R - 117418 - Main Assembly
SKU: AK117418_1-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO New Tec 1600 R - 117418 - Main Assembly

Description

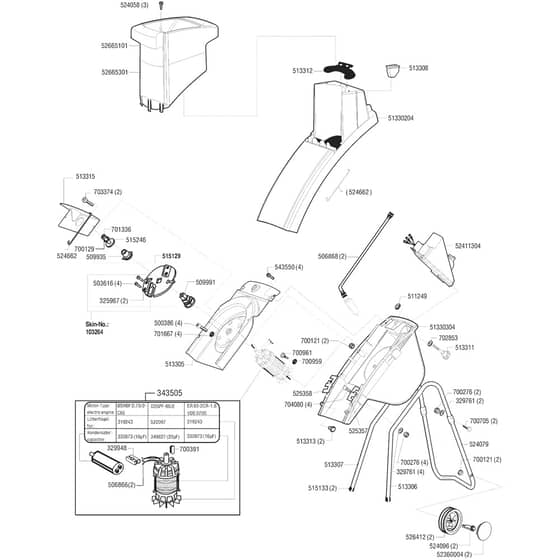

AL-KO New Tec 1600 R - 117418 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
103264	AK103264 Out of stock	Blades & Screws Pre-Pack	£30.82 £25.68
319243	AK319243 Out of stock	Fan	£15.90 £13.25
325967	AK517828 Out of stock	Use Ak517828	£13.22 £11.02
329761	AK329761 Out of stock	Curved Washer	£1.69 £1.41
329948	AK329948 Out of stock	Iso-Body Element 2-Pole	£1.76 £1.47
330873	AK330873 Out of stock	Condenser 16Mf D36	£23.69 £19.74
349827	AK349827 Out of stock	Capacitor 20Uf	£27.20 £22.67
500386	AK450417 Out of stock	Use Ak450417	£0.71 £0.59
503616	AK503616 Out of stock	Blade Screw	£1.25 £1.04
506866	AK506866 Out of stock	Motor Wires	£4.24 £3.53
506868	AK506868 Out of stock	Cable	£2.28 £1.90
509935	AK509935 Out of stock	Retainer	£7.22 £6.02
511249	AK511249 Out of stock	Grip Fix Washer - 7mm	£1.25 £1.04
513308	AK460362 Out of stock	Use Ak460362	£4.75 £3.96
513311	AK51331110 Out of stock	Use Ak51331110	£5.62 £4.68
513312	AK513312 Out of stock	Rubber Flap	£4.74 £3.95
513313	AK460958 Out of stock	Use Ak460958	£1.40 £1.17
513315	AK460098 Out of stock	Use Ak460098	£31.06 £25.88
515246	AK51524630 Out of stock	Use Ak51524630	£1.79 £1.49
524058	AK450742 Out of stock	Use Ak450742	£0.71 £0.59
524096	AK524096 In stock	Wheel Bolt	£3.23 £2.69
524662	AK524662 Out of stock	Bar	£1.92 £1.60
526412	AK526493 Out of stock	Use Ak526493	£10.70 £8.92
543550	AK543550 Out of stock	Screw	£1.24 £1.03
700121	AK704537 Out of stock	Use Ak704537	£1.09 £0.91
700129	AK700129 Out of stock	Spring Washer	£1.15 £0.96
700276	AK704536 In stock	Use Ak704536	Was £0.88 £0.73 Special Price £0.62 £0.52
700391	AK700391 Out of stock	Keyway	£1.10 £0.92
700705	AK700705 Out of stock	Screw M6x35	£0.71 £0.59
700959	AK700959 Out of stock	Washer	£0.73 £0.61
700961	AK700961 Out of stock	Screw	£0.73 £0.61
701336	AK701336 Out of stock	Bolt 10x35	£1.82 £1.52
701667	AK701667 Out of stock	Washer	£0.73 £0.61
702853	AK702853 Out of stock	Washer M8	£0.73 £0.61
703374	AK700963 Out of stock	Use Ak700963	£1.15 £0.96
704080	AK704080 Out of stock	Screw	£1.00 £0.83
51330204	AK51330204 Out of stock	Nla - Upper Housing	£44.00 £36.67
52360004	AK52360004 Out of stock	Wheel Cap	£1.99 £1.66
52411304	AK52411301 Out of stock	Use Ak52411301	£58.09 £48.41
52665101	AK52665101 Out of stock	Hopper Top	£25.79 £21.49
52665301	AK52665301 Out of stock	Housing	£18.11 £15.09
