AL-KO New Tec 1300 - 117881 - Main Assembly: 1.1998 - 10.1999

Name: AL-KO New Tec 1300 - 117881 - Main Assembly: 1.1998 - 10.1999
SKU: AK117881_1_1_1998_10_1999-group
Price: 0.68 GBP
Availability: InStock

Part No. AK117881_1_1_1998_10_1999-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO New Tec 1300 - 117881 - Main Assembly: 1.1998 - 10.1999

Description

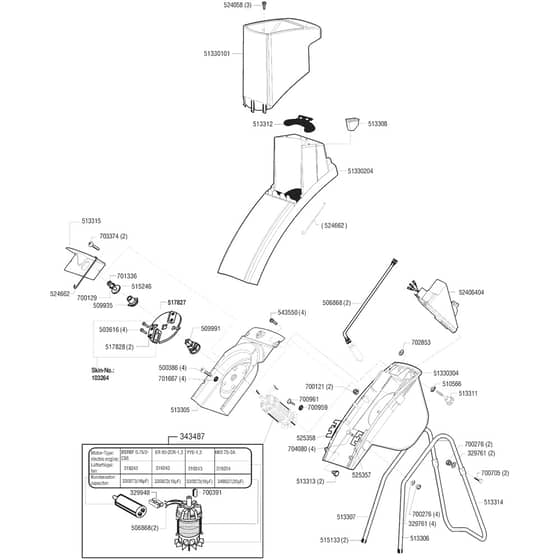

AL-KO New Tec 1300 - 117881 - Main Assembly - Parts Diagram

1.1998 - 10.1999

	Part No.	Details
103264	AK103264 Available to backorder	Blades & Screws Pre-Pack	£32.20 £26.83
329761	AK329761 Available to backorder	Curved Washer	£1.76 £1.47
329948	AK329948 Available to backorder	Iso-Body Element 2-Pole	£1.86 £1.55
330873	9409 In stock	Condenser 16Mf D36	£7.08 £5.90
349827	AK462890 Available to backorder	Capacitor 20Uf	£18.00 £15.00
500386	AK450417 In stock	Use Ak450417	£0.84 £0.70
503616	AK503616 In stock	Blade Screw	£1.55 £1.29
509935	AK509935 Available to backorder	Retainer	£7.20 £6.00
510566	AK510566 Available to backorder	Fastener 8mm	£1.42 £1.18
513308	AK460362 Available to backorder	Use Ak460362	£4.80 £4.00
513311	AK51331110 Available to backorder	Use Ak51331110	£5.64 £4.70
513312	AK513312 Available to backorder	Rubber Flap	£4.68 £3.90
513313	AK460958 In stock	Use Ak460958	£1.30 £1.08
513315	AK460098 Available to backorder	Use Ak460098	£31.08 £25.90
515246	AK51524630 In stock	Use Ak51524630	£1.90 £1.58
517828	AK517828 Available to backorder	Blade	£13.56 £11.30
524058	AK450742 Available to backorder	Use Ak450742	£0.82 £0.68
524662	AK524662 Available to backorder	Bar	£2.03 £1.69
543550	AK543550 Available to backorder	Screw	£1.42 £1.18
700121	AK704537 In stock	Use Ak704537	£1.15 £0.96
700129	AK700129 Available to backorder	Spring Washer	£1.32 £1.10
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
700391	AK700391 Available to backorder	Keyway	£1.27 £1.06
700705	AK700705 Available to backorder	Screw M6x35	£0.82 £0.68
700959	AK700959 Available to backorder	Washer	£0.84 £0.70
700961	AK700961 Available to backorder	Screw	£0.84 £0.70
701336	AK701336 Available to backorder	Bolt 10x35	£1.68 £1.40
701667	AK701667 Available to backorder	Washer	£0.84 £0.70
702853	AK702853 Available to backorder	Washer M8	£0.84 £0.70
703374	AK700963 Available to backorder	Use Ak700963	£1.32 £1.10
704080	AK704080 Available to backorder	Screw	£1.15 £0.96
52406404	AK46023401 Available to backorder	Use Ak46023401	£85.08 £70.90
