AL-KO Micro - 117512 - Main Assembly

Name: AL-KO Micro - 117512 - Main Assembly
SKU: AK117512_1-group
Price: 0.68 GBP
Availability: InStock

Part No. AK117512_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

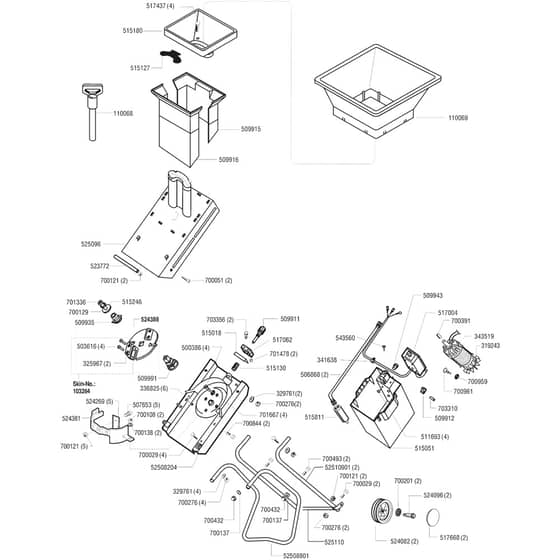

AL-KO Micro - 117512 - Main Assembly - Parts Diagram

	Part No.	Details
103264	AK103264 Available to backorder	Blades & Screws Pre-Pack	£32.20 £26.83
325967	AK517828 Available to backorder	Use Ak517828	£13.56 £11.30
329761	AK329761 Available to backorder	Curved Washer	£1.76 £1.47
336825	AK336825 Available to backorder	Screw	£1.34 £1.12
341638	AK341638 Available to backorder	Clip	£1.01 £0.84
500386	AK450417 In stock	Use Ak450417	£0.84 £0.70
503616	AK503616 In stock	Blade Screw	£1.55 £1.29
507653	AK452643 Available to backorder	Use Ak452643	£1.42 £1.18
509911	AK509911 Available to backorder	Handscrew	£5.64 £4.70
509935	AK509935 Available to backorder	Retainer	£7.20 £6.00
509943	AK509943 Available to backorder	Connector	£1.97 £1.64
511693	AK468878 Available to backorder	Use Ak468878	£0.86 £0.72
515018	AK515018 Available to backorder	Bracket	£3.14 £2.62
515051	AK515051 Available to backorder	Housing	£23.52 £19.60
515130	AK515130 Available to backorder	Spring	£1.86 £1.55
515246	AK51524630 In stock	Use Ak51524630	£1.90 £1.58
515811	AK515811 Available to backorder	Capacitor 25Uf	£26.88 £22.40
517668	AK52360004 Available to backorder	Use Ak52360004	£2.10 £1.75
524082	AK526493 Available to backorder	Use Ak526493	£10.68 £8.90
524096	AK524096 In stock	Wheel Bolt	£3.41 £2.84
524269	AK524269 Available to backorder	Blade	£7.68 £6.40
524381	AK524381 Available to backorder	Blade Mount	£34.20 £28.50
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
700029	AK700029 Available to backorder	Screw	£0.84 £0.70
700051	AK700051 Available to backorder	Screw M8x20	£0.82 £0.68
700108	AK704533 Available to backorder	Nut - M8	£0.82 £0.68
700121	AK704537 In stock	Use Ak704537	£1.15 £0.96
700129	AK700129 Available to backorder	Spring Washer	£1.32 £1.10
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700138	AK704538 In stock	Washer M8	£1.09 £0.91
700201	AK700201 Available to backorder	Grip Washer M8	£0.88 £0.73
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
700391	AK700391 Available to backorder	Keyway	£1.27 £1.06
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700493	AK700493 Available to backorder	Bolt	£1.42 £1.18
700844	AK704128 Available to backorder	Use Ak704128	£3.24 £2.70
700959	AK700959 Available to backorder	Washer	£0.84 £0.70
700961	AK700961 Available to backorder	Screw	£0.84 £0.70
701336	AK701336 Available to backorder	Bolt 10x35	£1.68 £1.40
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701667	AK701667 Available to backorder	Washer	£0.84 £0.70
703310	AK703310 Available to backorder	Pin	£1.01 £0.84
52508204	AK52508204 Available to backorder	Blade Casing	£61.80 £51.50
