AL-KO Husq 35-180 - 117883 - Main Assembly: from 10.1999

Name: AL-KO Husq 35-180 - 117883 - Main Assembly: from 10.1999
SKU: AK117883_1_from_10_1999-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Husq 35-180 - 117883 - Main Assembly: from 10.1999

Description

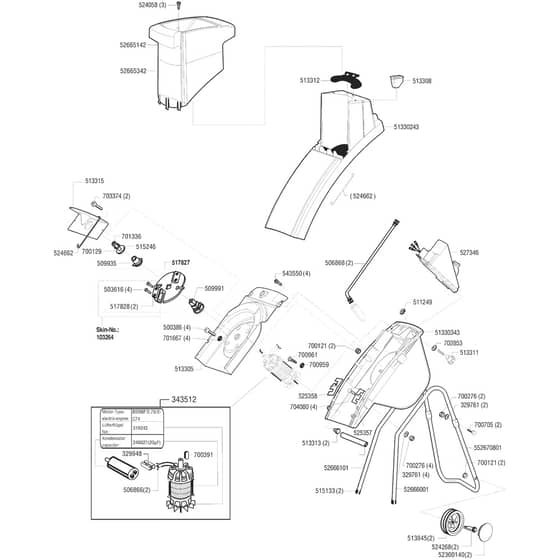

AL-KO Husq 35-180 - 117883 - Main Assembly - Parts Diagram

from 10.1999

Be the first to review this product

0 product questions

	Part No.	Details
103264	AK103264 Available to backorder	Blades & Screws Pre-Pack	£33.95 £28.29
329761	AK329761 Available to backorder	Curved Washer	£1.62 £1.35
329948	AK329948 Available to backorder	Iso-Body Element 2-Pole	£1.70 £1.42
349827	AK462890 Available to backorder	Capacitor 20Uf	£16.82 £14.02
500386	AK450417 Available to backorder	Use Ak450417	£0.64 £0.53
503616	AK503616 In stock	Blade Screw	£1.26 £1.05
506866	AK506866 Available to backorder	Motor Wires	£4.08 £3.40
509935	AK509935 Available to backorder	Retainer	£6.98 £5.82
511249	AK511249 Available to backorder	Grip Fix Washer - 7mm	£1.31 £1.09
513308	AK460362 Available to backorder	Use Ak460362	£4.60 £3.83
513311	AK51331110 Available to backorder	Use Ak51331110	£5.42 £4.52
513312	AK513312 Available to backorder	Rubber Flap	£4.58 £3.82
513313	AK460958 In stock	Use Ak460958	£6.04 £5.03
513315	AK460098 Available to backorder	Use Ak460098	£30.02 £25.02
513845	AK527823 Available to backorder	Use Ak527823	£18.98 £15.82
515246	AK51524630 Available to backorder	Use Ak51524630	£1.86 £1.55
517828	AK517828 Available to backorder	Blade	£12.78 £10.65
524058	AK450742 Available to backorder	Use Ak450742	£0.68 £0.57
524268	AK524096 In stock	Use Ak524096	£3.34 £2.78
524662	AK524662 Available to backorder	Bar	£1.86 £1.55
527346	AK46023401 Available to backorder	Use Ak46023401	£82.28 £68.57
543550	AK543550 Available to backorder	Screw	£1.18 £0.98
700121	AK704537 In stock	Use Ak704537	£1.04 £0.87
700129	AK700129 Available to backorder	Spring Washer	£1.10 £0.92
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700391	AK700391 Available to backorder	Keyway	£1.06 £0.88
700705	AK700705 Available to backorder	Screw M6x35	£0.68 £0.57
700959	AK700959 Available to backorder	Washer	£0.70 £0.58
700961	AK700961 Available to backorder	Screw	£0.70 £0.58
701336	AK701336 Available to backorder	Bolt 10x35	£1.52 £1.27
701667	AK701667 Available to backorder	Washer	£0.70 £0.58
702853	AK702853 Available to backorder	Washer M8	£0.70 £0.58
703374	AK700963 Available to backorder	Use Ak700963	£1.10 £0.92
704080	AK704080 Available to backorder	Screw	£0.96 £0.80
51330243	AK51330243 Available to backorder	Upper Section	£40.30 £33.58
52360140	AK52360140 Available to backorder	Cap	£2.54 £2.12
52665142	AK52665101 Available to backorder	Use Ak52665101	£24.92 £20.77
52665342	AK52665301 Available to backorder	Use Ak52665301	£17.50 £14.58
52666001	AK52666001 Available to backorder	Leg	£26.58 £22.15
