AL-KO Highline 523 SP - 119467 - Handle: 2.2013 - 5.2013

Name: AL-KO Highline 523 SP - 119467 - Handle: 2.2013 - 5.2013
SKU: AK119467_2_2_2013_5_2013-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Highline 523 SP - 119467 - Handle: 2.2013 - 5.2013

Description

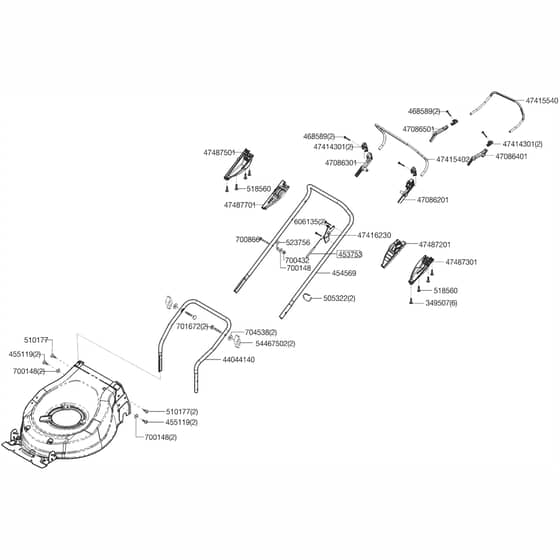

AL-KO Highline 523 SP - 119467 - Handle - Parts Diagram

2.2013 - 5.2013

Be the first to review this product

0 product questions

	Part No.	Details
349507	AK349507 Available to backorder	Screw 25mm	£0.68 £0.57
453753	AK453753 Available to backorder	Opc Cable	£19.06 £15.88
454569	AK454569 Available to backorder	Upper Handle	£38.10 £31.75
455119	AK510468 Available to backorder	Use Ak510468	£0.96 £0.80
468589	AK468589 Available to backorder	Screw	£0.68 £0.57
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
518560	AK518560 Available to backorder	Screw M4x16	£0.70 £0.58
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
704538	AK704538 In stock	Washer M8	£0.98 £0.82
44044140	AK4404414010 Available to backorder	Use Ak4404414010	£23.74 £19.78
47086201	AK47086201 Available to backorder	Bracket	£5.52 £4.60
47086301	AK47086301 Available to backorder	Bracket	£3.52 £2.93
47086401	AK47086401 Available to backorder	Lower Bracket	£5.76 £4.80
47086501	AK47086501 Available to backorder	Lower Bracket	£5.60 £4.67
47414301	AK455348 Available to backorder	Use Ak455348	£4.58 £3.82
47415540	AK45494540 Available to backorder	Use Ak45494540	£61.84 £51.53
47416230	AK474162 Available to backorder	Use Ak474162	£8.84 £7.37
47487201	AK47487201 Available to backorder	Cable Holder Upper	£4.70 £3.92
47487301	AK47487301 Available to backorder	Cable Holder Lower	£6.82 £5.68
47487501	AK47487501 Available to backorder	Cable Holder Lower	£7.98 £6.65
47487701	AK47487701 Available to backorder	Cable Holder Upper	£9.34 £7.78
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.94 £2.45
