AL-KO Highline 473 P - 119463 - Main Assembly

Name: AL-KO Highline 473 P - 119463 - Main Assembly
SKU: AK119463_1-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Highline 473 P - 119463 - Main Assembly

Description

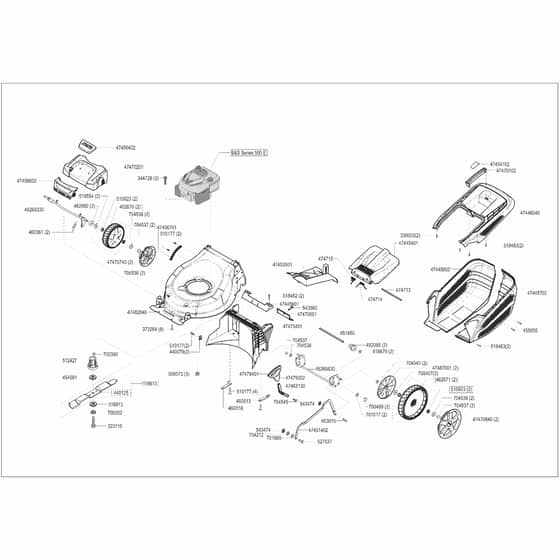

AL-KO Highline 473 P - 119463 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
118613	AK440125 In stock	Use Ak440125	£39.98 £33.32
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323110	AK457347 Available to backorder	Use Ak457347	£2.94 £2.45
336003	AK336003 Available to backorder	Screw 20mm	£0.84 £0.70
344728	AK344728 Available to backorder	Ak344728	£1.70 £1.42
373264	AK373264 Available to backorder	Screw 16mm	£0.70 £0.58
440079	AK440079 Available to backorder	Nut	£1.20 £1.00
451450	AK451450 Available to backorder	Axle	£4.84 £4.03
454981	AK454981 Available to backorder	Knife Holder Spacer	£11.68 £9.73
455055	AK455055 Available to backorder	Screw	£0.80 £0.67
460318	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
460361	AK460361 Available to backorder	Spring	£2.03 £1.69
460513	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
462670	AK462670 In stock	Front Wheel - 200mm	£22.80 £19.00
462671	AK462671 Available to backorder	Wheel	£33.60 £28.00
462692	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
463015	AK463015 Available to backorder	Pin	£1.86 £1.55
474713	AK474713 Available to backorder	Bar	£1.86 £1.55
474714	AK455308 Available to backorder	Spring	£5.60 £4.67
500073	AK500073 In stock	Nut	£1.28 £1.07
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
512427	AK512427 Available to backorder	Blade Boss 22mm	£16.76 £13.97
518482	AK518482 Available to backorder	Screw 18mm	£0.84 £0.70
518483	AK518483 Available to backorder	Screw St4 x 35mm	£0.84 £0.70
518670	AK518670 Available to backorder	Washer 12mm	£1.50 £1.25
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
527537	AK527537 In stock	Pin	£2.94 £2.45
543474	AK543474 In stock	Circlip	£0.78 £0.65
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700489	AK700489 In stock	Circlip	£0.78 £0.65
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704540	AK704540 Available to backorder	Washer M12	£0.68 £0.57
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
46269330	AK46269330 Available to backorder	Front Axle	£37.99 £31.66
46269830	AK46269830 Available to backorder	Rear Axle	£41.41 £34.51
47445401	AK47445401 Available to backorder	Grass Flap - Black	£15.95 £13.29
47445601	AK47445601 Available to backorder	Cover - Black	£5.78 £4.82
47445702	AK455543 Available to backorder	Use Ak455543	£20.54 £17.12
47445802	AK455635 Available to backorder	Use Ak455635	£20.90 £17.42
47446040	AK4408801014 Available to backorder	Use Ak44088040	£22.90 £19.08
47451402	AK47451402 Available to backorder	Connecting Rod	£23.08 £19.23
47453501	AK47453501 Available to backorder	Mulch Wedge	£19.86 £16.55
47454102	AK47454102 Available to backorder	Cover	£1.62 £1.35
47456602	AK47456602 Available to backorder	Bumper	£11.56 £9.63
47456701	AK47456701 Available to backorder	Hoc Bracket	£4.62 £3.85
47463130	AK47463130 In stock	Hoc Lever	£6.88 £5.73
47470001	AK47470001 Available to backorder	Flap	£3.48 £2.90
47470102	AK47470102 Available to backorder	Handle	£4.92 £4.10
47470201	AK47470201 In stock	Housing	£16.21 £13.51
47470740	AK46267340 Available to backorder	Use Ak46267340	£3.05 £2.54
47470840	AK46267440 Available to backorder	Hub Cap	£7.50 £6.25
47473401	AK47473401 Available to backorder	Rear Casing	£35.64 £29.70
47479302	AK454736 Available to backorder	Use Ak454736	£6.88 £5.73
47482840	AK47482840 Available to backorder	Housing	£93.30 £77.75
47487001	AK47487001 Available to backorder	Cover	£3.48 £2.90
47490402	AK47490402 Available to backorder	Decal	£5.94 £4.95
