AL-KO Highline 46.7 SPH - 119800 - Main Assembly: 2.2017 - 11.2017

Name: AL-KO Highline 46.7 SPH - 119800 - Main Assembly: 2.2017 - 11.2017
SKU: AK119800_1_2_2017_11_2017-group
Price: 0.68 GBP
Availability: InStock

Part No. AK119800_1_2_2017_11_2017-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Highline 46.7 SPH - 119800 - Main Assembly: 2.2017 - 11.2017

Description

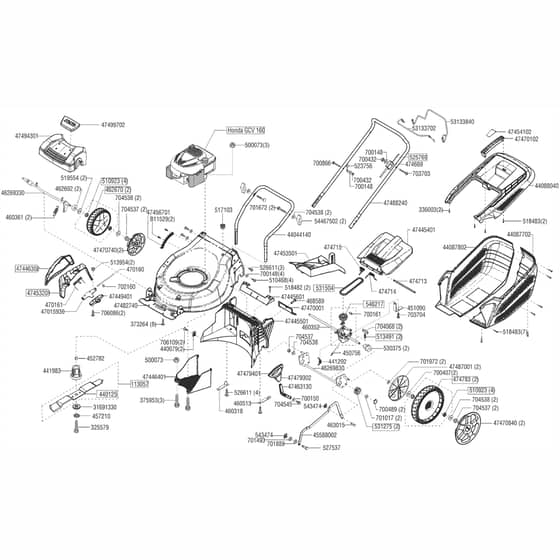

AL-KO Highline 46.7 SPH - 119800 - Main Assembly - Parts Diagram

2.2017 - 11.2017

	Part No.	Details
11529	AKB11529 Available to backorder	Screw 20mm	£5.64 £4.70
113057	AK440125 In stock	Blade	£38.66 £32.22
325579	AK457346 In stock	Use Ak457346	£2.50 £2.08
336003	AK336003 Available to backorder	Screw 20mm	£1.04 £0.87
373264	AK373264 Available to backorder	Screw 16mm	£0.89 £0.74
375953	AK375953 In stock	Screw M8x40	£2.36 £1.97
440079	AK440079 Available to backorder	Nut	£1.44 £1.20
441292	AK495369 In stock	Spring	£5.72 £4.77
441983	AK441983 Available to backorder	Blade Boss 25mm - 54.2 mm Deep	£19.68 £16.40
450756	AK450756 In stock	Gearbox Cable	£21.64 £18.03
451090	AK451090 Available to backorder	Bracket	£1.86 £1.55
452782	AK452782 Available to backorder	Key 3/16 x 5/8 In	£2.21 £1.84
457210	AK457210 Available to backorder	Washer	£1.01 £0.84
460318	AK460318 Available to backorder	Bracket R/H	£8.64 £7.20
460352	AK460352 In stock	Gearbox C/W Pulley	£72.62 £60.52
460361	AK460361 In stock	Spring	£2.04 £1.70
460513	AK460513 Available to backorder	Bracket L/H	£9.00 £7.50
462670	AK462670 In stock	Front Wheel - 200mm	£21.88 £18.23
462692	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
463015	AK463015 Available to backorder	Pin	£1.79 £1.49
468589	AK468589 Available to backorder	Screw	£0.82 £0.68
470160	AK470160 Available to backorder	Support Rod Side Flap Rsm 53	£3.24 £2.70
470161	AK470161 Available to backorder	Spring - Side Door	£5.52 £4.60
474669	AK474669 In stock	Cable Holder	£4.36 £3.63
474713	AK474713 Available to backorder	Bar	£1.98 £1.65
474714	AK455308 In stock	Spring	£6.35 £5.29
474783	AK474783 Available to backorder	Rear Wheel	£23.16 £19.30
500073	AK500073 In stock	Nut	£1.48 £1.23
510468	AK510468 Available to backorder	Screw M6x16	£1.15 £0.96
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
513491	AK513491 In stock	Spring	£0.88 £0.73
513954	AK513954 Available to backorder	Nut M6	£0.84 £0.70
517103	AK517103 Available to backorder	Cable Grommet	£1.92 £1.60
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
518483	AK518483 Available to backorder	Screw St4 x 35mm	£1.01 £0.84
519554	AK519554 In stock	Spacer	£1.55 £1.29
523756	AK523756 In stock	Guide	£2.57 £2.14
525769	AK525769 In stock	Opc Cable	£21.64 £18.03
526611	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
527537	AK527537 In stock	Pin	£2.95 £2.46
530375	AK530375 Available to backorder	Bush	£9.36 £7.80
531275	AK531275 Available to backorder	Pinion	£15.72 £13.10
531504	AK531504 In stock	Belt	£16.79 £13.99
543474	AK543474 In stock	Circlip	£0.88 £0.73
546217	AK546217 Available to backorder	Pulley	£14.40 £12.00
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700161	AK705986 Available to backorder	Roll Pin	£1.54 £1.28
700407	AK700407 Available to backorder	Washer M12	£0.84 £0.70
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700489	AK700489 In stock	Circlip	£0.89 £0.74
700866	AK700866 Available to backorder	Screw M6x30	£0.89 £0.74
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.84 £0.70
701493	AK701493 In stock	Washer M8	£0.89 £0.74
701672	AK701672 In stock	Screw M8x45	£1.72 £1.43
701889	AK701889 In stock	Washer 8mm	£1.38 £1.15
701972	AK701972 Available to backorder	Washer 13mm	£0.82 £0.68
702160	AK702160 Available to backorder	E-Clip	£1.22 £1.02
703703	AK703703 Available to backorder	Screw	£1.01 £0.84
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.82 £0.68
704068	AK704068 In stock	Pawl	£0.88 £0.73
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704545	AK704545 In stock	Screw M8x25	£1.03 £0.86
706086	AK706086 Available to backorder	Screw M6x20	£0.84 £0.70
706109	AK706577 Available to backorder	Screw 12mm	£0.84 £0.70
31691330	AK31691330 Available to backorder	Washer	£2.96 £2.47
44044140	AK4404414010 Available to backorder	Use Ak4404414010	£24.60 £20.50
44087702	AK455636 Available to backorder	Box Bottom L/H	£21.84 £18.20
44087802	AK455635 Available to backorder	Box Bottom R/H	£21.60 £18.00
44088040	AK4408801014 Available to backorder	Grassbox Top	£23.40 £19.50
45588002	AK45588002 Available to backorder	Height Adj Rod	£23.64 £19.70
46269330	AK46269330 Available to backorder	Front Axle	£39.36 £32.80
46269830	AK46269830 Available to backorder	Rear Axle	£38.88 £32.40
47015930	AK47015930 Available to backorder	Side Flap Bracket	£6.60 £5.50
47445401	AK47445401 Available to backorder	Grass Flap - Black	£15.00 £12.50
47445501	AK47445501 In stock	Rear Frame	£33.96 £28.30
47445601	AK47445601 In stock	Cover - Black	£5.52 £4.60
47446302	AK47446302 Available to backorder	Flap	£7.20 £6.00
47446401	AK44295401 In stock	Belt Cover	£11.94 £9.95
47449401	AK47449401 Available to backorder	Distance Plate	£2.80 £2.33
47453201	AK47453201 Available to backorder	Chute	£7.44 £6.20
47453501	AK47453501 Available to backorder	Mulch Wedge	£18.96 £15.80
47454102	AK47454102 In stock	Cover	£1.86 £1.55
47456701	AK47456701 Available to backorder	Hoc Bracket	£4.80 £4.00
47463130	AK47463130 In stock	Hoc Lever	£6.84 £5.70
47470001	AK47470001 Available to backorder	Flap	£3.72 £3.10
47470102	AK47470102 Available to backorder	Handle	£5.04 £4.20
47470740	AK46267340 Available to backorder	Use Ak46267340	£3.24 £2.70
47470840	AK46267440 Available to backorder	Hub Cap	£7.08 £5.90
47479302	AK454736 Available to backorder	Use Ak454736	£6.84 £5.70
47482740	AK4748271014 Available to backorder	Housing	£103.56 £86.30
47487001	AK47487001 Available to backorder	Cover	£3.60 £3.00
47488240	AK4748821014 Available to backorder	Upper Handle	£34.20 £28.50
47494301	AK47494301 Available to backorder	Front Cover	£12.84 £10.70
47499702	AK47499702 Available to backorder	Plate	£6.00 £5.00
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
53133840	AK5313381014 In stock	Drive Handle - Silver (Wnu)	£16.56 £13.80
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.95 £2.46
