AL-KO Highline 42.7 P-A - 119811 - Main Assembly: 2.2017 - 3.2018

Description

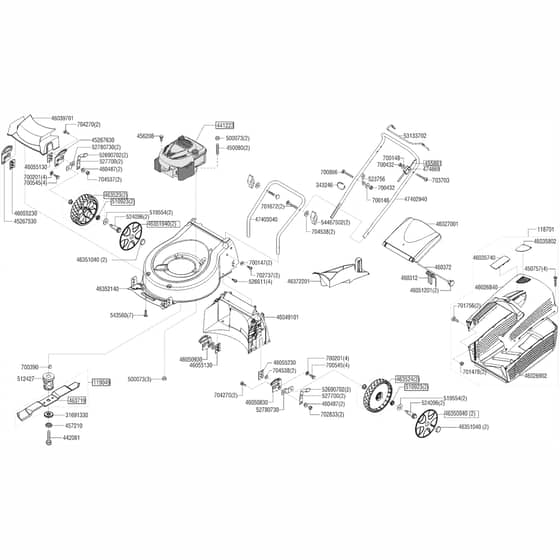

AL-KO Highline 42.7 P-A - 119811 - Main Assembly - Parts Diagram

2.2017 - 3.2018

Be the first to review this product

0 product questions

	Part No.	Details
52690702	AK526907 Available to backorder	Knob	£3.06 £2.55
118701	AK118701 Available to backorder	Grass Box Complete Black	£76.52 £63.77
119049	AK463719 Available to backorder	Use Ak463719	£35.29 £29.41
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
442061	AK457347 Available to backorder	Bolt	£2.94 £2.45
450080	AK450080 Available to backorder	Grubscrew	£1.60 £1.33
450757	AK450757 Available to backorder	Screw 20mm	£0.84 £0.70
455861	AK455861 Available to backorder	Cable	£22.08 £18.40
456208	AK456208 Available to backorder	Bolt - Thread Cutting	£1.02 £0.85
457210	AK457210 Available to backorder	Washer	£0.84 £0.70
460312	AK460312 Available to backorder	Spring	£6.56 £5.47
460372	AK460372 Available to backorder	Rod	£1.62 £1.35
463523	AK463523 In stock	Front Wheel - 180mm	£18.26 £15.22
463524	AK463524 Available to backorder	Rear Wheel Assy	£20.36 £16.97
474669	AK474669 In stock	Cable Holder	£4.61 £3.84
500073	AK500073 In stock	Nut	£1.28 £1.07
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
512427	AK512427 Available to backorder	Blade Boss 22mm	£16.76 £13.97
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
524096	AK524096 In stock	Wheel Bolt	£3.34 £2.78
526611	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
527700	AK52770030 Available to backorder	Use Ak52770030	£6.62 £5.52
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
700147	AK703451 Available to backorder	Washer	£3.26 £2.72
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700201	AK700201 Available to backorder	Washer M8	£0.77 £0.64
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700545	AK700545 Available to backorder	Bolt M8x16	£0.68 £0.57
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701756	AK701756 Available to backorder	Screw M5x10	£0.68 £0.57
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
702833	AK704537 In stock	Use Ak704537	£1.04 £0.87
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
704270	AK704270 Available to backorder	Screw M8x25	£0.84 £0.70
704538	AK704538 In stock	Washer M8	£0.98 £0.82
31691330	AK31691330 Available to backorder	Washer	£2.70 £2.25
45267530	AK45267530 Available to backorder	Height Quadrant	£7.12 £5.93
45267630	AK45267630 Available to backorder	Height Quadrant	£7.12 £5.93
46026902	AK46026902 Available to backorder	Grass Box (Red)	£23.44 £19.53
46027001	AK46027001 Available to backorder	Grassbox Flap	£13.96 £11.63
46035740	AK46035740 Available to backorder	Grass Top Cover	£1.04 £0.87
46035802	AK46035801 Available to backorder	Cover - Red	£1.25 £1.04
46039701	AK46026601 Available to backorder	Front Cover	£12.04 £10.03
46049101	AK46049101 In stock	Casing	£29.50 £24.58
46050830	AK46050830 Available to backorder	Quadrant	£7.64 £6.37
46050930	AK46050930 Available to backorder	Quadrant	£5.94 £4.95
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.32 £1.10
46055130	AK46055130 Available to backorder	Wheel Bracket	£6.28 £5.23
46055230	AK46055230 Available to backorder	Wheel Bracket	£6.54 £5.45
46350940	AK46350940 Available to backorder	Hub Cap	£2.54 £2.12
46351040	AK46351040 Available to backorder	Cap	£0.86 £0.72
46351940	AK46351940 Available to backorder	Wheel Cap - 150mm	£2.32 £1.93
46352140	AK4635211014 Available to backorder	Housing Silver	£83.74 £69.78
46372201	AK46372201 Available to backorder	Mulch Plug	£16.12 £13.43
47402940	AK453818 Available to backorder	Use Ak453818	£50.36 £41.97
47403040	AK47403040 Available to backorder	Lower Handle	£23.42 £19.52
52780730	AK52780730 Available to backorder	Bracket	£4.67 £3.89
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.94 £2.45
