AL-KO H2200 - 104617 - Main Assembly

Name: AL-KO H2200 - 104617 - Main Assembly
SKU: AK104617_1-group
Price: 0.48 GBP
Availability: InStock

Part No. AK104617_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

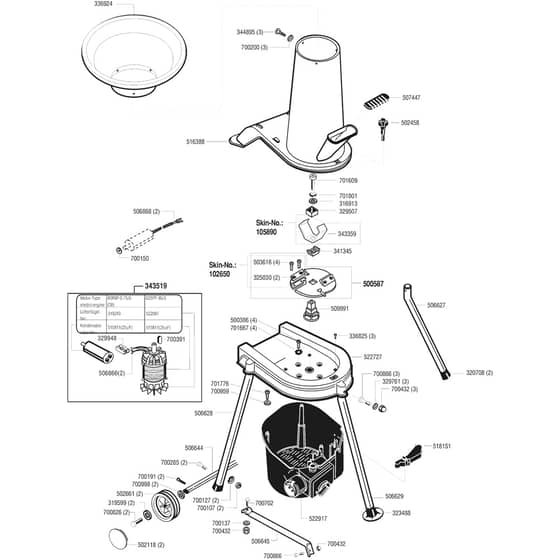

AL-KO H2200 - 104617 - Main Assembly - Parts Diagram

	Part No.	Details
102650	AK102650 In stock	Blades & Screws Pre-Pack	£26.10 £21.75
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
319599	AK319599 Available to backorder	Washer	£1.32 £1.10
320708	AK512564 Available to backorder	Use Ak512564	£1.34 £1.12
325030	AK325030 In stock	Blade	£11.69 £9.74
329761	AK329761 Available to backorder	Curved Washer	£1.76 £1.47
329948	AK329948 Available to backorder	Iso-Body Element 2-Pole	£1.86 £1.55
336825	AK336825 Available to backorder	Screw	£1.34 £1.12
344895	AK344895 Available to backorder	Screw	£0.84 £0.70
500386	AK450417 In stock	Use Ak450417	£0.84 £0.70
503616	AK503616 In stock	Blade Screw	£1.55 £1.29
506627	AK506627 Available to backorder	Right Leg	£16.68 £13.90
506866	AK506866 Available to backorder	Motor Wires	£4.20 £3.50
515811	AK515811 Available to backorder	Capacitor 25Uf	£26.88 £22.40
518151	AK518151 Available to backorder	Bracket	£4.80 £4.00
700107	AK704532 Available to backorder	Use Ak704532	£0.82 £0.68
700127	AK704746 Available to backorder	Use Ak704746	£0.84 £0.70
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700191	AK700191 Available to backorder	Pin	£0.58 £0.48
700200	AK700200 Available to backorder	Washer	£0.82 £0.68
700285	AK700553 In stock	Use Ak700553	£0.79 £0.66
700391	AK700391 Available to backorder	Keyway	£1.27 £1.06
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700702	AK700702 In stock	Screw M6x25	£0.72 £0.60
700826	AK700826 Available to backorder	Bolt	£1.79 £1.49
700866	AK700866 Available to backorder	Screw M6x30	£0.89 £0.74
700959	AK700959 Available to backorder	Washer	£0.84 £0.70
701667	AK701667 Available to backorder	Washer	£0.84 £0.70
701776	AK701776 Available to backorder	Screw	£0.84 £0.70
701801	AK701801 Available to backorder	M10 Spring Washer	£0.84 £0.70
