AL-KO H1500 S - 118004 - Main Assembly: 11.2002 - 2.2005

Name: AL-KO H1500 S - 118004 - Main Assembly: 11.2002 - 2.2005
SKU: AK118004_1_11_2002_2_2005-group
Price: 0.41 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO H1500 S - 118004 - Main Assembly: 11.2002 - 2.2005

Description

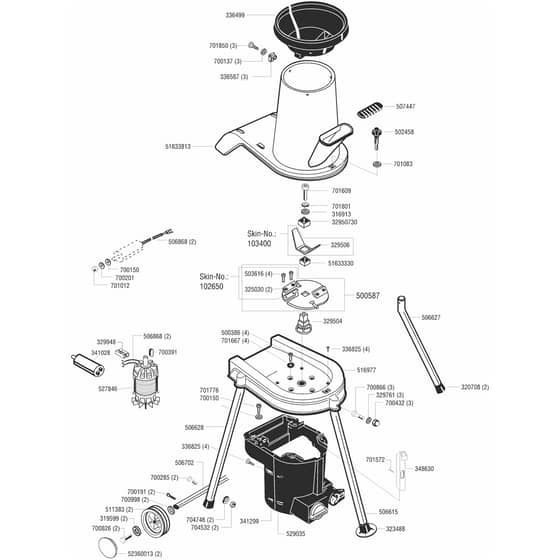

AL-KO H1500 S - 118004 - Main Assembly - Parts Diagram

11.2002 - 2.2005

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
319599	AK319599 Available to backorder	Washer	£1.10 £0.92
320708	AK512564 Available to backorder	Use Ak512564	£1.12 £0.93
325030	AK325030 Available to backorder	Blade	£11.16 £9.30
329506	4216 In stock	No Longer Available	£9.60 £8.00
329761	AK329761 Available to backorder	Curved Washer	£1.62 £1.35
329948	AK329948 Available to backorder	Iso-Body Element 2-Pole	£1.70 £1.42
336587	AK336587 Available to backorder	Clip Nut	£3.06 £2.55
336825	AK336825 Available to backorder	Screw	£1.32 £1.10
348630	AK348630 Available to backorder	Slide	£6.36 £5.30
500386	AK450417 Available to backorder	Use Ak450417	£0.64 £0.53
503616	AK503616 In stock	Blade Screw	£1.26 £1.05
506627	AK506627 Available to backorder	Right Leg	£16.18 £13.48
700137	AK700137 In stock	Washer M6	£0.97 £0.81
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700191	AK700191 Available to backorder	Pin	£0.49 £0.41
700201	AK700201 Available to backorder	Grip Washer M8	£0.77 £0.64
700285	AK700553 In stock	Use Ak700553	£0.72 £0.60
700391	AK700391 Available to backorder	Keyway	£1.06 £0.88
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700826	AK700826 Available to backorder	Bolt	£1.64 £1.37
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701012	AK701012 Available to backorder	Nut	£1.10 £0.92
701083	AK701083 Available to backorder	Washer	£0.68 £0.57
701572	AK701572 Available to backorder	Screw	£0.72 £0.60
701667	AK701667 Available to backorder	Washer	£0.70 £0.58
701776	AK701776 Available to backorder	Screw	£0.70 £0.58
701801	AK701801 Available to backorder	M10 Spring Washer	£0.68 £0.57
701850	AK701850 Available to backorder	Screw M6x16	£0.84 £0.70
704532	AK704532 Available to backorder	Nut M6	£0.68 £0.57
704746	AK704746 Available to backorder	Washer M6	£0.84 £0.70
52360013	AK52360013 Available to backorder	Wheel Cap	£3.46 £2.88
