AL-KO Garden Line GL 46 - 119919 - Main Assembly

Name: AL-KO Garden Line GL 46 - 119919 - Main Assembly
SKU: AK119919_1-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Garden Line GL 46 - 119919 - Main Assembly

Description

AL-KO Garden Line GL 46 - 119919 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
113057	AK440125 In stock	Blade	£39.98 £33.32
344728	AK344728 Available to backorder	Ak344728	£1.70 £1.42
375953	AK375953 Available to backorder	Screw M8x40	£2.32 £1.93
450756	AK450756 In stock	Gearbox Cable	£22.42 £18.68
451090	AK451090 Available to backorder	Bracket	£1.86 £1.55
451838	AK451838 Available to backorder	Coupling	£15.44 £12.87
451994	AK451994 In stock	Spring	£2.47 £2.06
452073	AK452073 Available to backorder	Handlebar Coupling - Lever	£15.44 £12.87
452740	AK452740 Available to backorder	Handle - Upper	£36.70 £30.58
457347	AK457347 Available to backorder	Bolt 3/8 Unf - 68	£2.94 £2.45
460312	AK460312 Available to backorder	Spring	£6.56 £5.47
460318	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
460352	AK460352 Available to backorder	Gearbox C/W Pulley	£76.58 £63.82
460361	AK460361 Available to backorder	Spring	£2.03 £1.69
460372	AK460372 Available to backorder	Rod	£1.62 £1.35
460376	AK460376 In stock	Belt	£17.82 £14.85
460513	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
463015	AK463015 Available to backorder	Pin	£1.86 £1.55
463962	AK463962 In stock	Blade Holder - 22mm	£20.78 £17.32

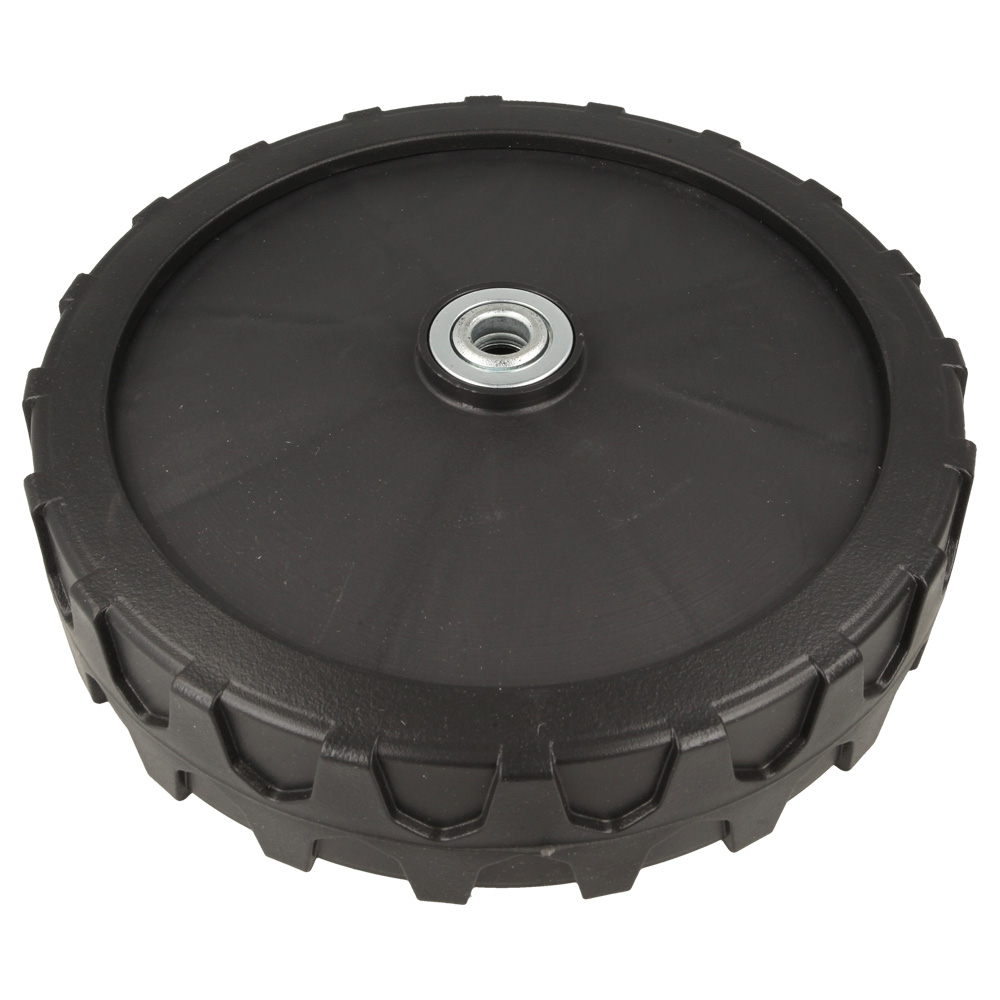

466243	AK466243 Available to backorder	Wheel	£15.62 £13.02
466244	AK466244 Available to backorder	Wheel	£31.08 £25.90
474669	AK474669 In stock	Cable Holder	£4.61 £3.84
500073	AK500073 In stock	Nut	£1.28 £1.07
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
513491	AK513491 In stock	Spring	£0.78 £0.65
517103	AK517103 Available to backorder	Cable Grommet	£1.68 £1.40
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
525769	AK525769 In stock	Opc Cable	£22.72 £18.93
526611	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543474	AK543474 In stock	Circlip	£0.78 £0.65
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
544675	AK544675 Available to backorder	Wingnut M8 - Black	£2.78 £2.32
546217	AK546217 Available to backorder	Pulley	£14.16 £11.80
700147	AK703451 Available to backorder	Washer	£3.26 £2.72
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700489	AK700489 In stock	Circlip	£0.78 £0.65
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701686	AK701686 Available to backorder	Screw M5x16	£0.84 £0.70
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
703884	AK703884 Available to backorder	Screw	£0.84 £0.70
704068	AK704068 In stock	Pawl	£0.80 £0.67
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
705077	AK705077 Available to backorder	Screw M6x60	£1.02 £0.85
706155	AK700427 Available to backorder	Screw St48x13 -C-Torx 7981 Vz	£0.89 £0.74
31691330	AK31691330 Available to backorder	Washer	£2.70 £2.25
45380340	AK45380340 Available to backorder	Part	£23.44 £19.53
46025801	AK46025801 Available to backorder	Deck Black	£89.42 £74.52
46026601	AK46026601 Available to backorder	Front Cover	£12.04 £10.03
46026701	AK46026701 In stock	Rear Frame	£30.30 £25.25
46027001	AK46027001 Available to backorder	Grassbox Flap	£13.96 £11.63
46027101	AK46027101 In stock	Belt Cover	£13.86 £11.55
46027301	AK46027301 Available to backorder	Bearing	£2.36 £1.97
46035701	AK46035701 Available to backorder	Cover	£1.18 £0.98
46035840	AK46035801 Available to backorder	Use Ak46035801	£1.25 £1.04
46036401	AK46036401 Available to backorder	Axle Block	£2.20 £1.83
46037930	AK46037930 Available to backorder	Grassbox Frame	£16.44 £13.70
46038201	AK46038201 Available to backorder	Lower Box	£27.80 £23.17
46039201	AK46039201 Available to backorder	Black Handle Height Adj	£6.44 £5.37
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.32 £1.10
46090730	AK460907 Available to backorder	Use Ak460907	£2.72 £2.27
46090830	AK460908 Available to backorder	Use Ak460908	£2.72 £2.27
46267501	AK46267501 Available to backorder	Back Plate	£4.28 £3.57
46269230	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
46269330	AK46269330 Available to backorder	Front Axle	£37.99 £31.66
46269830	AK46269830 Available to backorder	Rear Axle	£41.41 £34.51
46271330	AK46271330 In stock	Lever	£14.32 £11.93
46603840	AK46603840 Available to backorder	Hub Cap Silver	£3.62 £3.02
46624540	AK46624540 Available to backorder	Wheel Cover	£7.76 £6.47
47403040	AK47403040 Available to backorder	Lower Handle	£23.42 £19.52
52753730	AK527537 In stock	Use Ak527537	£2.94 £2.45
53133801	AK53133840 Available to backorder	Drive Handle Use Ak53133840	£15.92 £13.27
