AL-KO Energy Flex 46.9 Li SP - 113690 - Main Assembly: from 3.2022

Name: AL-KO Energy Flex 46.9 Li SP - 113690 - Main Assembly: from 3.2022
SKU: AK113690_1_from_3_2022-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Energy Flex 46.9 Li SP - 113690 - Main Assembly: from 3.2022

Description

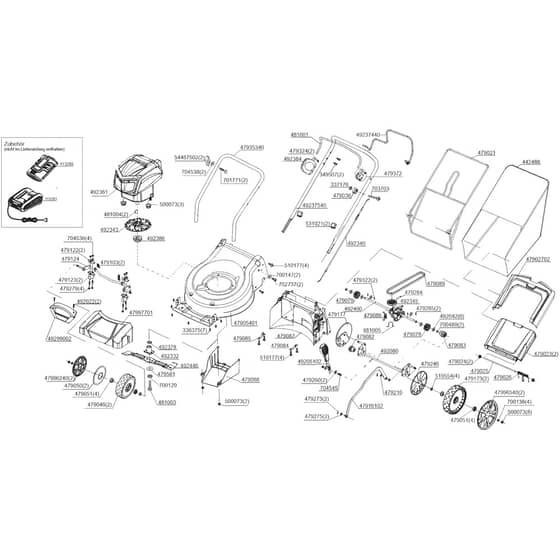

AL-KO Energy Flex 46.9 Li SP - 113690 - Main Assembly - Parts Diagram

from 3.2022

Be the first to review this product

0 product questions

	Part No.	Details
336375	AK336375 Available to backorder	Screw 14mm	£0.68 £0.57
337176	AK337176 Available to backorder	Nut M6 Nylock	£1.18 £0.98
349507	AK349507 Available to backorder	Screw 25mm	£0.68 £0.57
442488	AK47902201 Available to backorder	Fabric Bag	£34.64 £28.87
479021	AK479021 Available to backorder	Bag Frame	£29.04 £24.20
479024	AK479024 Available to backorder	Plug For Flap	£3.16 £2.63
479025	AK479025 Available to backorder	Flap Rod	£4.44 £3.70
479026	AK479026 Available to backorder	Key Spring	£3.80 £3.17
479036	AK474669 In stock	Use Ak474669	£4.61 £3.84
479046	AK479046 Available to backorder	Wheel 200	£22.80 £19.00
479050	AK479050 Available to backorder	Cover Front Wheel Inner 200	£4.44 £3.70
479051	AK479051 Available to backorder	Wheel Bearing	£3.22 £2.68
479078	AK479078 Available to backorder	Sprocket Left	£20.90 £17.42
479079	AK479079 Available to backorder	Right Pinion	£20.90 £17.42
479082	AK479082 Available to backorder	Bearing Bushing Rt Right	£3.16 £2.63
479083	AK479083 Available to backorder	Bearing Bushing Rt Left	£3.80 £3.17
479084	AK479084 Available to backorder	Shutter Angle Left	£1.90 £1.58
479085	AK479085 Available to backorder	Shutter Angle Right	£3.80 £3.17
479086	AK479086 Available to backorder	Spring	£4.00 £3.33
479087	AK479087 Available to backorder	Rear	£36.10 £30.08
479088	AK479088 Available to backorder	Belt Cover	£16.10 £13.42
479089	AK479089 Available to backorder	Drive Belt	£18.44 £15.37
479103	AK479103 Available to backorder	Spring - Front Axle	£2.22 £1.85
479122	AK479122 Available to backorder	Axle Bush Top	£3.88 £3.23
479123	AK479123 Available to backorder	Axle Bracket Bottom	£3.16 £2.63
479124	AK479124 Available to backorder	Front Axle	£22.80 £19.00
479173	AK479173 Available to backorder	Rear Wheel 280	£36.10 £30.08
479177	AK479177 Available to backorder	Cover Rear Wheel Inner Right 280	£8.24 £6.87
479210	AK479210 Available to backorder	Washer Height Rod	£0.68 £0.57
479246	AK479246 Available to backorder	Guard Left 280	£8.24 £6.87
479260	AK479260 Available to backorder	Disc 8	£1.26 £1.05
479273	AK705322 Available to backorder	Use Ak705322	£0.68 £0.57
479275	AK701627 Available to backorder	Use Ak701627	£1.36 £1.13
479279	AK479279 Available to backorder	Bolt M6x65	£1.44 £1.20
479284	AK479284 Available to backorder	Roll Pin	£0.84 £0.70
479285	AK479285 Available to backorder	Ratchet Pin	£1.76 £1.47
479322	AK479322 Available to backorder	Pin	£1.18 £0.98
479324	AK479324 Available to backorder	Screw	£1.18 £0.98
479372	AK479372 Available to backorder	Counter Bearing Shift Bar	£6.96 £5.80
479581	AK479581 Available to backorder	Washer	£1.36 £1.13
481001	AK481001 Available to backorder	Shift Bar	£16.46 £13.72
481003	AK481003 Available to backorder	Knife Screw	£3.16 £2.63
481004	AK481004 Available to backorder	Disc Spring	£1.26 £1.05
481005	AK481005 Available to backorder	Clip	£0.80 £0.67
492022	AK492022 Available to backorder	Screw	£1.26 £1.05
492042	AK492042 Available to backorder	Shim	£1.18 £0.98
492080	AK492080 Available to backorder	Rear Axle 4705	£36.10 £30.08
492332	AK492332 Available to backorder	Knife Holder 42.9 Sp	£17.10 £14.25
492340	AK492340 Available to backorder	Drive Cable	£10.04 £8.37
492343	AK492343 Available to backorder	Fan	£7.84 £6.53
492345	AK492345 Available to backorder	Pulley Transmission	£10.76 £8.97
492378	AK492378 Available to backorder	Disc	£2.54 £2.12
492384	AK492384 Available to backorder	Switch 42.9 - 46.9	£25.88 £21.57
492386	AK492386 Available to backorder	Pulley	£11.30 £9.42
492400	AK492400 Available to backorder	Transmission	£54.46 £45.38
492446	AK492446 Available to backorder	Blade	£25.10 £20.92
500073	AK500073 In stock	Nut	£1.28 £1.07
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
531021	AK342887 Available to backorder	Use Ak342887	£2.22 £1.85
700129	AK700129 Available to backorder	Spring Washer	£1.10 £0.92
700138	AK704538 In stock	Washer M8	£0.98 £0.82
700147	AK703451 Available to backorder	Ak700147	£3.26 £2.72
700489	AK700489 In stock	Circlip	£0.78 £0.65
701771	AK701771 Available to backorder	Screw	£1.52 £1.27
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
47996240	AK47996240 Available to backorder	Wheel Cap	£5.42 £4.52
49299002	AK49299002 Available to backorder	Ak49299002	£15.68 £13.07
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.94 £2.45
