AL-KO Energy Flex 46.5 Li SP - 119707 - Main Assembly: from 3.2018

Name: AL-KO Energy Flex 46.5 Li SP - 119707 - Main Assembly: from 3.2018
SKU: AK119707_1_from_3_2018-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Energy Flex 46.5 Li SP - 119707 - Main Assembly: from 3.2018

Description

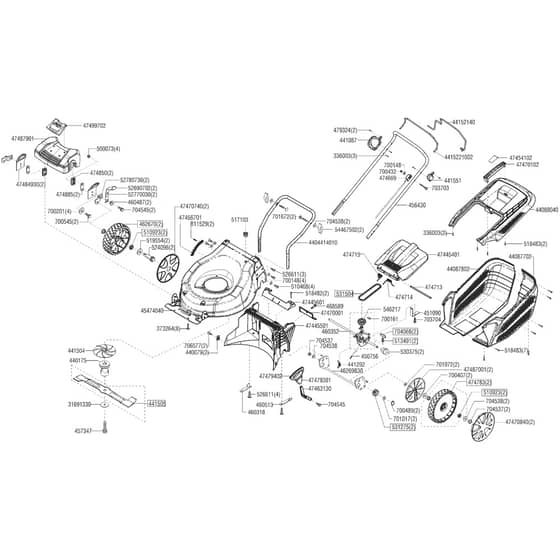

AL-KO Energy Flex 46.5 Li SP - 119707 - Main Assembly - Parts Diagram

from 3.2018

Be the first to review this product

0 product questions

	Part No.	Details
52690702	AK526907 Available to backorder	Knob	£3.06 £2.55
11529	AKB11529 Available to backorder	Screw 20mm	£5.42 £4.52
336003	AK336003 Available to backorder	Screw 20mm	£0.84 £0.70
373264	AK373264 Available to backorder	Screw 16mm	£0.70 £0.58
440079	AK440079 Available to backorder	Nut	£1.20 £1.00
440175	AK440175 Available to backorder	Blade Boss 22mm	£21.04 £17.53
441087	AK442062 Available to backorder	Use Ak442062	£31.54 £26.28
441292	AK495369 In stock	Spring	£6.08 £5.07
441504	AK441504 Available to backorder	Fan	£11.88 £9.90
441505	AK441505 Available to backorder	Blade - 46.5 Li Moweo	£30.40 £25.33
441551	AK441551 Available to backorder	Lever Bracket	£70.32 £58.60
450756	AK450756 In stock	Gearbox Cable	£22.42 £18.68
451090	AK451090 Available to backorder	Bracket	£1.86 £1.55
456430	AK456430 Available to backorder	Top Handle	£35.10 £29.25
457347	AK457347 Available to backorder	Bolt 3/8 Unf - 68	£2.94 £2.45
460318	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
460352	AK460352 Available to backorder	Gearbox C/W Pulley	£76.58 £63.82
460513	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
462670	AK462670 In stock	Front Wheel - 200mm	£22.80 £19.00
468589	AK468589 Available to backorder	Screw	£0.68 £0.57
474669	AK474669 In stock	Cable Holder	£4.61 £3.84
474713	AK474713 Available to backorder	Bar	£1.86 £1.55
474714	AK455308 Available to backorder	Spring	£5.60 £4.67
474783	AK474783 Available to backorder	Rear Wheel	£24.32 £20.27
474850	AK474850 Available to backorder	Nut Holder	£1.10 £0.92
474885	AK474885 Available to backorder	Spacer	£2.36 £1.97
479324	AK479324 Available to backorder	Screw	£1.18 £0.98
500073	AK500073 In stock	Nut	£1.28 £1.07
510468	AK510468 Available to backorder	Screw M6x16	£0.96 £0.80
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
513491	AK513491 In stock	Spring	£0.78 £0.65
517103	AK517103 Available to backorder	Cable Grommet	£1.68 £1.40
518482	AK518482 Available to backorder	Screw 18mm	£0.84 £0.70
518483	AK518483 Available to backorder	Screw St4 x 35mm	£0.84 £0.70
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
524096	AK524096 In stock	Wheel Bolt	£3.34 £2.78
526611	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
531504	AK531504 In stock	Belt	£17.68 £14.73
546217	AK546217 Available to backorder	Pulley	£14.16 £11.80
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700201	AK700201 Available to backorder	Grip Washer M8	£0.77 £0.64
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700489	AK700489 In stock	Circlip	£0.78 £0.65
700545	AK700545 Available to backorder	Bolt M8x16	£0.68 £0.57
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
704068	AK704068 In stock	Pawl	£0.80 £0.67
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
706577	AK706577 Available to backorder	Screw 12mm	£0.70 £0.58
31691330	AK31691330 Available to backorder	Washer	£2.70 £2.25
44087702	AK455636 Available to backorder	Box Bottom L/H	£21.10 £17.58
44087802	AK455635 Available to backorder	Box Bottom R/H	£20.90 £17.42
44088040	AK4408801014 Available to backorder	Grassbox Top	£22.90 £19.08
44152140	AK44152140 Available to backorder	Drive Lever	£16.14 £13.45
45474040	AK45474040 Available to backorder	Housing	£60.72 £50.60
46269830	AK46269830 Available to backorder	Rear Axle	£41.41 £34.51
47445401	AK47445401 Available to backorder	Grass Flap - Black	£15.95 £13.29
47445501	AK47445501 Available to backorder	Rear Frame	£35.76 £29.80
47445601	AK47445601 Available to backorder	Cover - Black	£5.78 £4.82
47454102	AK47454102 Available to backorder	Cover	£1.62 £1.35
47456701	AK47456701 Available to backorder	Hoc Bracket	£4.62 £3.85
47463130	AK47463130 In stock	Hoc Lever	£6.88 £5.73
47470001	AK47470001 Available to backorder	Flap	£3.48 £2.90
47470102	AK47470102 Available to backorder	Handle	£4.92 £4.10
47470740	AK46267340 Available to backorder	Use Ak46267340	£3.05 £2.54
47470840	AK46267440 Available to backorder	Hub Cap	£7.50 £6.25
47479301	AK454736 Available to backorder	Use Ak454736	£6.88 £5.73
47484930	AK47484930 Available to backorder	Quadrant	£4.90 £4.08
47487001	AK47487001 Available to backorder	Cover	£3.48 £2.90
47487901	AK47487901 Available to backorder	Front Panel	£17.58 £14.65
47499702	AK47499702 Available to backorder	Plate	£5.78 £4.82
52770030	AK52770030 Available to backorder	Height Adj.	£6.62 £5.52
52780730	AK52780730 Available to backorder	Bracket	£4.67 £3.89
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.94 £2.45
2147483647	AK4415221002 Available to backorder	Switch Lever	£22.90 £19.08
2147483647	AK4404414010 Available to backorder	Nla - Underbar 46-51 B-Br Rosil Rework	£23.74 £19.78
