AL-KO Energy Flex 42.9 Li - 113688 - Main Assembly: 2.2019 - 2.2021

Description

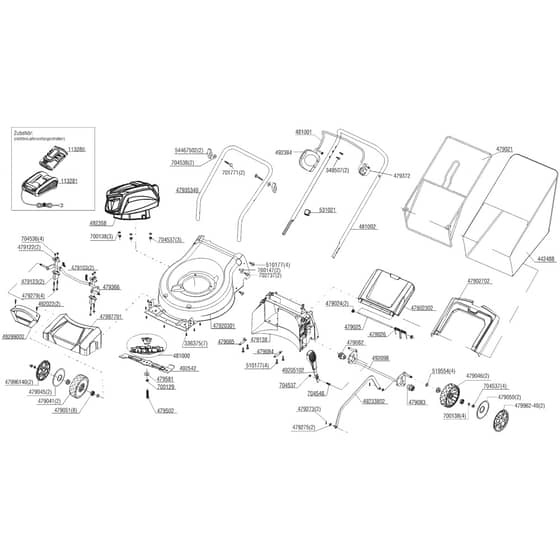

AL-KO Energy Flex 42.9 Li - 113688 - Main Assembly - Parts Diagram

2.2019 - 2.2021

Be the first to review this product

0 product questions

	Part No.	Details
336375	AK336375 Available to backorder	Screw 14mm	£0.68 £0.57
349507	AK349507 Available to backorder	Screw 25mm	£0.68 £0.57
442488	AK47902201 Available to backorder	Fabric Bag	£34.64 £28.87
479021	AK479021 Available to backorder	Bag Frame	£29.04 £24.20
479024	AK479024 Available to backorder	Plug For Flap	£3.16 £2.63
479025	AK479025 Available to backorder	Flap Rod	£4.44 £3.70
479026	AK479026 Available to backorder	Key Spring	£3.80 £3.17
479041	AK479041 Available to backorder	Front Wheel 175	£34.84 £29.03
479045	AK479045 Available to backorder	Cover Front Wheel Inner 175	£6.34 £5.28
479046	AK479046 Available to backorder	Wheel 200	£22.80 £19.00
479050	AK479050 Available to backorder	Cover Front Wheel Inner 200	£4.44 £3.70
479051	AK479051 Available to backorder	Wheel Bearing	£3.22 £2.68
479082	AK479082 Available to backorder	Bearing Bushing Rt Right	£3.16 £2.63
479083	AK479083 Available to backorder	Bearing Bushing Rt Left	£3.80 £3.17
479084	AK479084 Available to backorder	Shutter Angle Left	£1.90 £1.58
479085	AK479085 Available to backorder	Shutter Angle Right	£3.80 £3.17
479103	AK479103 Available to backorder	Spring - Front Axle	£2.22 £1.85
479122	AK479122 Available to backorder	Axle Bush Top	£3.88 £3.23
479123	AK479123 Available to backorder	Axle Bracket Bottom	£3.16 £2.63
479138	AK479138 Available to backorder	Rear	£47.50 £39.58
479273	AK705322 Available to backorder	Use Ak705322	£0.68 £0.57
479275	AK701627 Available to backorder	Use Ak701627	£1.36 £1.13
479279	AK479279 Available to backorder	Bolt M6x65	£1.44 £1.20
479366	AK479366 Available to backorder	Axle Front 42.9	£26.60 £22.17
479372	AK479372 Available to backorder	Counter Bearing Shift Bar	£6.96 £5.80
479502	AK479502 Available to backorder	Knife Screw 3/8"-24Unf-2B	£3.16 £2.63
479581	AK479581 Available to backorder	Washer	£1.36 £1.13
481000	AK481000 Available to backorder	Fan	£11.86 £9.88
481001	AK481001 Available to backorder	Shift Bar	£16.46 £13.72
492022	AK492022 Available to backorder	Screw	£1.26 £1.05
492098	AK492098 Available to backorder	Rear Axle 42.9	£33.56 £27.97
492384	AK492384 Available to backorder	Switch 42.9 - 46.9	£25.88 £21.57
492542	AK492542 Available to backorder	Blade	£39.52 £32.93
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
531021	AK342887 Available to backorder	Use Ak342887	£2.22 £1.85
700129	AK700129 Available to backorder	Spring Washer	£1.10 £0.92
700138	AK704538 In stock	Washer M8	£0.98 £0.82
700147	AK703451 Available to backorder	Ak700147	£3.26 £2.72
701771	AK701771 Available to backorder	Screw	£1.52 £1.27
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704546	AK704546 Available to backorder	Screw M8x20	£0.72 £0.60
47996140	AK47996140 Available to backorder	Wheel Cap	£7.82 £6.52
49299002	AK49299002 Available to backorder	Ak49299002	£15.68 £13.07
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.94 £2.45
