AL-KO Energy Flex 42.5 Li - 119705 - Main Assembly: 6.2015 - 10.2015

Name: AL-KO Energy Flex 42.5 Li - 119705 - Main Assembly: 6.2015 - 10.2015
SKU: AK119705_1_6_2015_10_2015-group
Price: 0.68 GBP
Availability: InStock

Part No. AK119705_1_6_2015_10_2015-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Energy Flex 42.5 Li - 119705 - Main Assembly: 6.2015 - 10.2015

Description

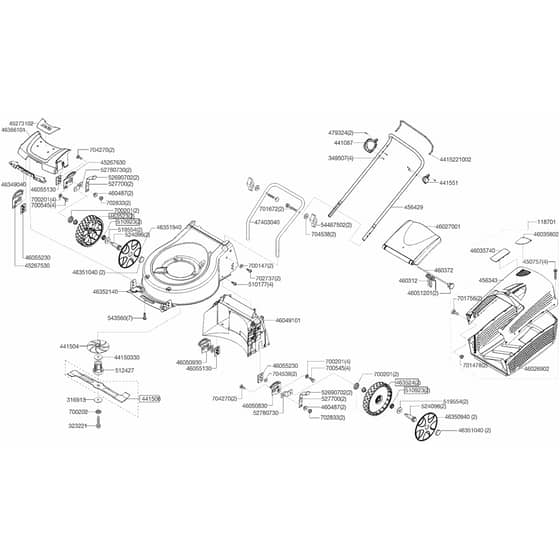

AL-KO Energy Flex 42.5 Li - 119705 - Main Assembly - Parts Diagram

6.2015 - 10.2015

	Part No.	Details
52690702	AK526907 Available to backorder	Knob	£3.18 £2.65
118701	AK118701 Available to backorder	Grass Box Complete Black	£79.20 £66.00
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
323221	AK457347 Available to backorder	Bolt	£3.20 £2.67
349507	AK349507 Available to backorder	Screw 25mm	£0.82 £0.68
441087	AK442062 Available to backorder	Use Ak442062	£32.64 £27.20
441504	AK441504 Available to backorder	Fan	£12.24 £10.20
441506	AK441506 Available to backorder	Blade - 42.5 Li Moweo	£27.48 £22.90
441551	AK441551 Available to backorder	Lever Bracket	£72.72 £60.60
450757	AK450757 Available to backorder	Screw 20mm	£1.01 £0.84
456429	AK456429 Available to backorder	Top Handle	£49.92 £41.60
460312	AK460312 In stock	Spring	£6.84 £5.70
460372	AK460372 In stock	Rod	£1.88 £1.57
463523	AK463523 In stock	Front Wheel - 180mm	£19.64 £16.37
463524	AK463524 Available to backorder	Rear Wheel Assy	£21.48 £17.90
479324	AK479324 Available to backorder	Screw	£1.42 £1.18
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
512427	AK512427 Available to backorder	Blade Boss 22mm	£17.28 £14.40
519554	AK519554 In stock	Spacer	£1.55 £1.29
524096	AK524096 In stock	Wheel Bolt	£3.41 £2.84
527700	AK52770030 Available to backorder	Use Ak52770030	£7.20 £6.00
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
700147	AK703451 In stock	Ak700147	£1.03 £0.86
700201	AK700201 Available to backorder	Grip Washer M8	£0.88 £0.73
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701672	AK701672 In stock	Screw M8x45	£1.72 £1.43
701756	AK701756 Available to backorder	Screw M5x10	£0.82 £0.68
702737	AK702737 In stock	Screw St4.8x19mm	£1.14 £0.95
702833	AK704537 In stock	Use Ak704537	£1.15 £0.96
704270	AK704270 Available to backorder	Screw M8x25	£1.01 £0.84
704538	AK704538 In stock	Washer M8	£1.09 £0.91
44150330	AK441503 Available to backorder	Use Ak441503	£8.28 £6.90
45267530	AK45267530 Available to backorder	Height Quadrant	£7.32 £6.10
45267630	AK45267630 Available to backorder	Height Quadrant	£7.32 £6.10
45273102	AK45273102 Available to backorder	Cover Alko Text( Ak45273140)	£5.52 £4.60
46026902	AK46026902 Available to backorder	Grass Box (Red)	£24.24 £20.20
46027001	AK46027001 Available to backorder	Grassbox Flap	£15.00 £12.50
46035740	AK46035740 Available to backorder	Grass Top Cover	£1.25 £1.04
46035802	AK46035801 Available to backorder	Cover - Red	£1.39 £1.16
46049101	AK46049101 Available to backorder	Casing	£30.48 £25.40
46050830	AK46050830 Available to backorder	Quadrant	£7.92 £6.60
46050930	AK46050930 Available to backorder	Quadrant	£6.12 £5.10
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.50 £1.25
46055130	AK46055130 Available to backorder	Wheel Bracket	£6.48 £5.40
46055230	AK46055230 Available to backorder	Wheel Bracket	£7.08 £5.90
46349040	AK46349040 Available to backorder	Plate	£10.32 £8.60
46350940	AK46350940 Available to backorder	Hub Cap	£2.77 £2.31
46351040	AK46351040 Available to backorder	Cap	£0.89 £0.74
46351940	AK46351940 Available to backorder	Wheel Cap - 150mm	£2.53 £2.11
46352140	AK4635211014 Available to backorder	Housing Silver	£78.36 £65.30
46366101	AK46366101 Available to backorder	Front Part	£25.08 £20.90
47403040	AK47403040 Available to backorder	Lower Handle	£24.24 £20.20
52780730	AK52780730 In stock	Bracket	£5.39 £4.49
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.95 £2.46
2147483647	AK4415221002 Available to backorder	Switch Lever	£23.64 £19.70
