AL-KO Easy-Mow 4800 H Pro - 121341 - Main Assembly: from 5.2007

Name: AL-KO Easy-Mow 4800 H Pro - 121341 - Main Assembly: from 5.2007
SKU: AK121341_1_from_5_2007-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Easy-Mow 4800 H Pro - 121341 - Main Assembly: from 5.2007

Description

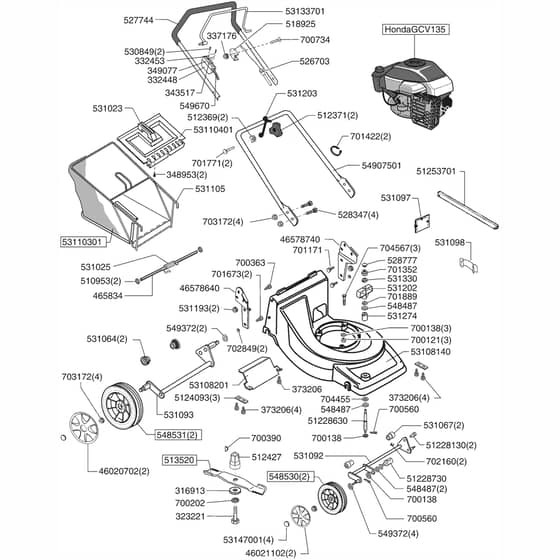

AL-KO Easy-Mow 4800 H Pro - 121341 - Main Assembly - Parts Diagram

from 5.2007

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
332453	AK332453 Available to backorder	Grip	£2.04 £1.70
337176	AK337176 Available to backorder	Nut M6 Nylock	£1.18 £0.98
348953	AK373264 Available to backorder	Use Ak373264	£0.70 £0.58
373206	AK373702 Available to backorder	Use Ak373702	£2.94 £2.45
465834	AK465834 Available to backorder	Rod	£10.50 £8.75
510953	AK510953 Available to backorder	Fastener M6	£0.84 £0.70
512369	AK512369 Available to backorder	Spacer	£1.18 £0.98
512371	AK544675 Available to backorder	Use Ak544675	£2.78 £2.32
512427	AK512427 Available to backorder	Blade Boss 22mm	£16.76 £13.97
513520	AK470836 Available to backorder	Use Ak470836	£33.68 £28.07
518925	AK474669 In stock	Cable Holder	£4.61 £3.84
526703	AK525769 In stock	Use Ak525769	£22.72 £18.93
528347	AK704128 Available to backorder	Use Ak704128	£3.16 £2.63
528777	AK528777 Available to backorder	Cap	£1.18 £0.98
530849	AK349507 Available to backorder	Use Ak349507	£0.68 £0.57
531025	AK531552 Available to backorder	Use Ak531552	£4.24 £3.53
531097	AK531097 Available to backorder	Cover Plate	£9.72 £8.10
531193	AK704537 In stock	Use Ak704537	£1.04 £0.87
531203	AK526901 Available to backorder	Use Ak526901	£2.84 £2.37
531330	AK700426 Available to backorder	Use Ak700426	£0.84 £0.70
548487	AK701770 Available to backorder	Use Ak701770	£0.70 £0.58
548530	AK548530 Available to backorder	Front Wheel	£20.16 £16.80
548531	AK548531 Available to backorder	No Longer Available	£21.72 £18.10
549372	AK700407 Available to backorder	Use Ak700407	£2.76 £2.30
549670	AK451849 In stock	Throttle Cable	£21.92 £18.27
700138	AK704538 In stock	Washer M8	£0.98 £0.82
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700363	AK704545 In stock	Use Ak704545	£0.86 £0.72
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700560	AK701983 Available to backorder	Use Ak701983	£0.70 £0.58
700734	AK700734 Available to backorder	Washer	£1.04 £0.87
701171	AK701171 Available to backorder	Screw M8x30	£0.84 £0.70
701352	AK701352 Available to backorder	Nut	£0.84 £0.70
701673	AK701673 Available to backorder	Screw M6x25	£0.94 £0.78
701771	AK701771 Available to backorder	Screw	£1.52 £1.27
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
702160	AK702160 Available to backorder	E-Clip	£1.02 £0.85
702849	AK704536 Out of stock	Nut M6	£0.97 £0.81
703172	AK500073 In stock	Use Ak500073	£1.28 £1.07
46020702	AK46020720 Available to backorder	Use Ak46020720	£2.56 £2.13
46021102	AK46021101 Available to backorder	Use Ak46021104	£2.40 £2.00
46578640	AK46578640 Available to backorder	Rh Bracket	£24.60 £20.50
46578740	AK46578740 Available to backorder	Bracket - L/H	£7.82 £6.52
53147001	AK53147001 Available to backorder	Wheel Cap Black	£0.84 £0.70
54907501	AK52700740 Available to backorder	Use Ak52700740	£32.58 £27.15
