AL-KO Easy-Mow 4710 HW - 119090 - Main Assembly: 4.2008 - 11.2008

Description

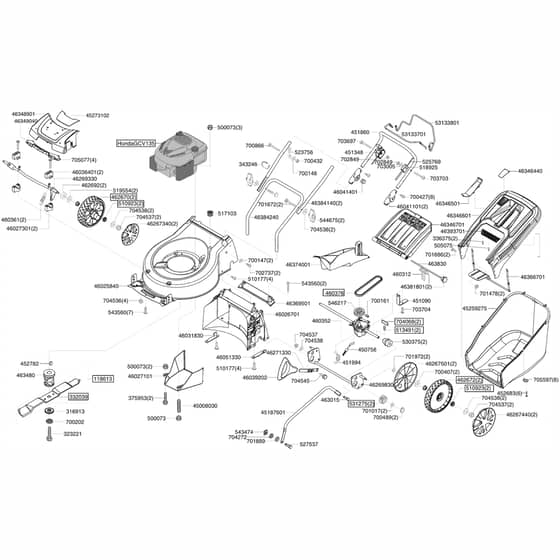

AL-KO Easy-Mow 4710 HW - 119090 - Main Assembly - Parts Diagram

4.2008 - 11.2008

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
332039	AK440125 In stock	Blade 18"	£39.98 £33.32
336375	AK336375 Available to backorder	Screw 14mm	£0.68 £0.57
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
375953	AK375953 Available to backorder	Screw M8x40	£2.32 £1.93
450756	AK450756 In stock	Gearbox Cable	£22.42 £18.68
451090	AK451090 Available to backorder	Bracket	£1.86 £1.55
451348	AK531828 Available to backorder	Use Ak531828	£26.21 £21.84
451994	AK451994 In stock	Spring	£2.47 £2.06
452683	AK336003 Available to backorder	Screw	£0.84 £0.70
452782	AK452782 Available to backorder	Key 3/16 x 5/8 In	£2.02 £1.68
460312	AK460312 Available to backorder	Spring	£6.56 £5.47
460352	AK460352 Available to backorder	Gearbox C/W Pulley	£76.58 £63.82
460361	AK460361 Available to backorder	Spring	£2.03 £1.69
460376	AK460376 In stock	Belt	£17.82 £14.85
462670	AK462670 In stock	Front Wheel - 200mm	£22.80 £19.00
462672	AK474783 Available to backorder	Use Ak470784	£24.32 £20.27
462692	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
463015	AK463015 Available to backorder	Pin	£1.86 £1.55
463830	AK463830 Available to backorder	Bar	£1.92 £1.60
500073	AK500073 In stock	Nut	£1.28 £1.07
505075	AK505075 Available to backorder	Screw 15mm	£1.12 £0.93
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
513491	AK513491 In stock	Spring	£0.78 £0.65
517103	AK517103 Available to backorder	Cable Grommet	£1.68 £1.40
518925	AK474669 In stock	Cable Holder	£4.61 £3.84
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
525769	AK525769 In stock	Opc Cable	£22.72 £18.93
527537	AK527537 In stock	Pin	£2.94 £2.45
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543474	AK543474 In stock	Circlip	£0.78 £0.65
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
544675	AK544675 Available to backorder	Wingnut M8 - Black	£2.78 £2.32
546217	AK546217 Available to backorder	Pulley	£14.16 £11.80
700147	AK703451 Available to backorder	Washer	£3.26 £2.72
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700427	AK700427 Available to backorder	Screw 12mm	£0.89 £0.74
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700489	AK700489 In stock	Circlip	£0.78 £0.65
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701686	AK701686 Available to backorder	Screw M5x16	£0.84 £0.70
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
702849	AK704536 Out of stock	Nut M6	£0.97 £0.81
703697	AK703697 Available to backorder	Screw M6x55	£0.96 £0.80
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
704068	AK704068 In stock	Pawl	£0.80 £0.67
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
705077	AK705077 Available to backorder	Screw M6x60	£1.02 £0.85
705597	AK705597 Available to backorder	Clip	£0.84 £0.70
45008030	AK450080 Available to backorder	Use Ak450080	£1.60 £1.33
45187601	AK45187602 Available to backorder	Connecting Rod	£16.80 £14.00
45259275	AK456010 Available to backorder	Use Ak46381601	£38.66 £32.22
45273102	AK45273102 Available to backorder	Cover Alko Text( Ak45273140)	£5.28 £4.40
46025840	AK46025840 Available to backorder	Housing - No Side Discharge	£79.64 £66.37
46026701	AK46026701 In stock	Rear Frame	£30.30 £25.25
46027101	AK46027101 In stock	Belt Cover	£13.86 £11.55
46027301	AK46027301 Available to backorder	Bearing	£2.36 £1.97
46031830	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
46036401	AK46036401 Available to backorder	Axle Block	£2.20 £1.83
46039202	AK46039202 Available to backorder	Red Handle Height Adj	£7.92 £6.60
46041101	AK46041101 Available to backorder	Handlebar Coupling - Button	£10.68 £8.90
46051330	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
46267340	AK46267340 Available to backorder	Wheel Cap - 200mm	£3.05 £2.54
46267440	AK46267440 Available to backorder	Wheel Cap	£7.50 £6.25
46267501	AK46267501 Available to backorder	Back Plate	£4.28 £3.57
46269330	AK46269330 Available to backorder	Front Axle	£37.99 £31.66
46269830	AK46269830 Available to backorder	Rear Axle	£41.41 £34.51
46271330	AK46271330 In stock	Lever	£14.32 £11.93
46346440	AK46346401 Available to backorder	Use Ak46346401	£1.04 £0.87
46346501	AK46346540 Available to backorder	Use Ak46346540	£4.94 £4.12
46346601	AK46346601 Available to backorder	Upper Grass Box Black	£24.04 £20.03
46348901	AK46348901 Available to backorder	Cover	£12.72 £10.60
46349040	AK46349040 Available to backorder	Plate	£10.00 £8.33
46366701	AK46366701 Available to backorder	Bag Frame	£40.72 £33.93
46369501	AK46369501 Available to backorder	Cover	£5.94 £4.95
46374001	AK46374001 Available to backorder	Mulch Wedge - 46cm	£17.46 £14.55
46381801	AK46051201 Available to backorder	Use Ak46051201	£1.32 £1.10
46384140	AK46384140 Available to backorder	Handle	£12.24 £10.20
46384240	AK46384240 Available to backorder	Lower Handle	£23.44 £19.53
46393701	AK46393702 Available to backorder	Cover	£3.62 £3.02
53133801	AK53133840 Available to backorder	Drive Handle Use Ak53133840	£15.92 £13.27
