AL-KO Easy 4.60 SP-B - 114015 - Main Assembly

Name: AL-KO Easy 4.60 SP-B - 114015 - Main Assembly
SKU: AK114015_1-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Easy 4.60 SP-B - 114015 - Main Assembly

Description

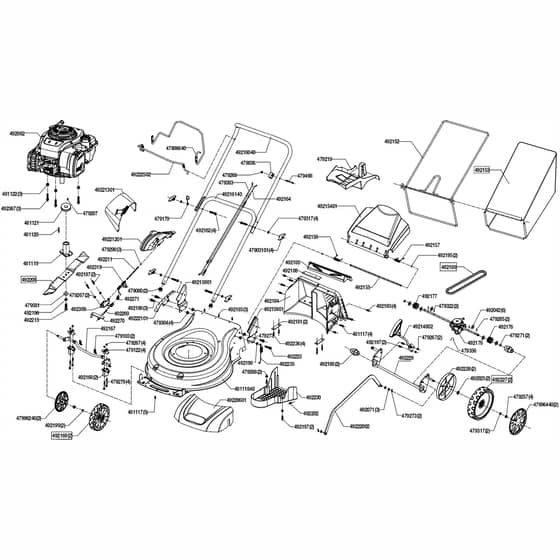

AL-KO Easy 4.60 SP-B - 114015 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
479036	AK474669 In stock	Use Ak474669	£4.61 £3.84
479080	AK479080 Available to backorder	Handle Plug	£13.72 £11.43
479103	AK479103 Available to backorder	Spring - Front Axle	£2.22 £1.85
479122	AK479122 Available to backorder	Axle Bush Top	£3.88 £3.23
479179	AK526901 Available to backorder	Use Ak526901	£2.84 £2.37
479219	AK47921901 Available to backorder	Use Ak47921901	£19.02 £15.85
479257	AK704537 In stock	Use Ak704537	£1.04 £0.87
479267	AK479267 Available to backorder	Nut	£0.84 £0.70
479268	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
479271	AK700489 In stock	Use Ak700489	£0.78 £0.65
479273	AK705322 Available to backorder	Use Ak705322	£0.68 £0.57
479279	AK479279 Available to backorder	Bolt M6x65	£1.44 £1.20
479285	AK479285 Available to backorder	Ratchet Pin	£1.76 £1.47
479287	AK479287 Available to backorder	Wedge 4x6.5x16	£1.26 £1.05
479290	AK479290 Available to backorder	Clip	£0.70 £0.58
479304	AK479304 Available to backorder	Flange Nut M8	£1.52 £1.27
479317	AK704538 In stock	Use Ak704538	£0.98 £0.82
479322	AK479322 Available to backorder	Pin	£1.18 £0.98
479356	AK479356 Available to backorder	Cable Holder	£1.26 £1.05
479383	AK479383 Available to backorder	Cable Brake	£12.66 £10.55
479498	AK479498 Available to backorder	Screw	£0.88 £0.73
479581	AK479581 Available to backorder	Washer	£1.36 £1.13
481117	AK481117 Available to backorder	Screw St5x16F	£1.26 £1.05
481119	AK481119 Available to backorder	Knife Holder	£20.90 £17.42
481120	AK481120 Available to backorder	Adjusting Spring	£1.90 £1.58
481121	AK481121 Available to backorder	Pulley Cutter Shaft	£8.86 £7.38
481122	AK481122 Available to backorder	Nut M 8	£1.26 £1.05
492025	AK492025 Available to backorder	Wavy Washer	£0.70 £0.58
492042	AK492042 Available to backorder	Shim	£1.18 £0.98
492071	AK492071 Available to backorder	Washer Height Rod	£0.68 £0.57
492152	AK492152 Available to backorder	Grass Bag Frame	£29.36 £24.47
492153	AK492326 Available to backorder	Use Ak492326	£31.94 £26.62
492155	AK492155 Available to backorder	Hinge Grass Flap	£4.26 £3.55
492156	AK492156 Available to backorder	Flap Spring Rh	£3.56 £2.97
492157	AK492157 Available to backorder	Flap Spring Lh	£3.56 £2.97
492162	AK492162 Available to backorder	Bolt - Hand Nut	£1.20 £1.00
492164	AK492164 Available to backorder	Drive Cable	£38.08 £31.73
492167	AK492167 Available to backorder	Front Axle	£17.82 £14.85
492168	AK492168 Available to backorder	Axle Bush Lower	£3.08 £2.57
492169	AK492169 Available to backorder	Wheel Assembly	£20.38 £16.98
492176	AK492176 Available to backorder	Pinion Lh	£12.88 £10.73
492177	AK492177 Available to backorder	Pinion Rh	£12.88 £10.73
492180	AK492180 Available to backorder	Bush - Rear Axle	£2.94 £2.45
492181	AK492181 Available to backorder	Plate	£3.56 £2.97
492184	AK492184 Available to backorder	Rear Insert	£30.88 £25.73
492185	AK492185 Available to backorder	Rear Cover	£8.64 £7.20
492186	AK492186 Available to backorder	Anit-Grass Plate	£33.54 £27.95
492188	AK492188 Available to backorder	Belt	£18.00 £15.00
492193	AK492193 Available to backorder	Screw	£157.00 £130.83
492195	AK492195 Available to backorder	Washer	£0.70 £0.58
492196	AK492196 Available to backorder	Spring Washer	£0.70 £0.58
492197	AK492197 Available to backorder	Bolt B Grade M6x14	£2.03 £1.69
492198	AK492198 Available to backorder	Screw	£1.62 £1.35
492199	AK492199 Available to backorder	Washer	£0.70 £0.58
492202	AK492202 Available to backorder	Screw	£0.84 £0.70
492208	AK492208 Available to backorder	Blade	£35.40 £29.50
492211	AK492211 Available to backorder	Side Discharge Axle	£3.88 £3.23
492215	AK492215 Available to backorder	Blade Bolt	£5.64 £4.70
492223	AK492223 Available to backorder	Screw	£1.36 £1.13
492227	AK492227 Available to backorder	Rear Wheel	£29.66 £24.72
492228	AK492228 Available to backorder	Dust Cover	£5.42 £4.52
492229	AK492229 Available to backorder	Rear Axle	£25.76 £21.47
492230	AK492230 Available to backorder	Belt Cover	£11.68 £9.73
492235	AK492235 Available to backorder	Spring - Rear Axle	£2.14 £1.78
492236	AK492236 Available to backorder	Screw	£1.04 £0.87
492269	AK492269 Available to backorder	Pivot	£5.70 £4.75
492270	AK492270 Available to backorder	Retaining Clip	£27.22 £22.68
492271	AK492271 Available to backorder	Flap Spring Sd	£2.36 £1.97
492309	AK492309 Available to backorder	Bracket	£5.28 £4.40
492319	AK492319 Available to backorder	Flap Spring Sd	£2.88 £2.40
492367	AK492367 Available to backorder	Screw M8x30	£1.26 £1.05
47903101	AK544675 Available to backorder	Use Ak544675	£2.78 £2.32
47906640	AK47906640 Available to backorder	Drive Lever	£17.64 £14.70
47996240	AK47996240 Available to backorder	Wheel Cap	£5.42 £4.52
47996440	AK47996440 Available to backorder	Wheel Cap	£6.42 £5.35
49214602	AK49214602 Available to backorder	Height Lever	£12.42 £10.35
49215401	AK49215401 Available to backorder	Rear Flap	£18.66 £15.55
49215801	AK49215801 Available to backorder	Fixer Left	£7.56 £6.30
49215901	AK49215901 Available to backorder	Fixer Right	£7.56 £6.30
49216040	AK49216040 Available to backorder	Top Handle	£32.58 £27.15
49216140	AK49216140 Available to backorder	Lower Handle	£62.83 £52.36
49220601	AK49220601 Available to backorder	Front Cover	£18.32 £15.27
49221201	AK49221201 Available to backorder	Side Cover	£6.70 £5.58
49221301	AK49221301 Available to backorder	Discharge Chute	£13.96 £11.63
49222002	AK49222002 Available to backorder	Connecting Rod	£15.24 £12.70
49222101	AK49222101 Available to backorder	Height Quadrant	£38.30 £31.92
49222502	AK49222502 Available to backorder	Opc Lever	£14.60 £12.17
