AL-KO Easy 4.20 P-S - 113794 - Covers

Name: AL-KO Easy 4.20 P-S - 113794 - Covers
SKU: AK113794_1-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

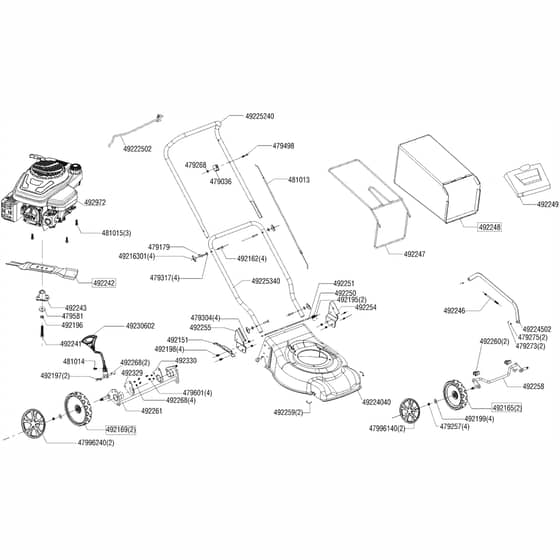

AL-KO Easy 4.20 P-S - 113794 - Covers - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
479036	AK474669 In stock	Use Ak474669	£4.61 £3.84
479179	AK526901 Available to backorder	Use Ak526901	£2.84 £2.37
479257	AK704537 In stock	Use Ak704537	£1.04 £0.87
479268	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
479273	AK705322 Available to backorder	Use Ak705322	£0.68 £0.57
479275	AK701627 Available to backorder	Use Ak701627	£1.36 £1.13
479304	AK479304 Available to backorder	Flange Nut M8	£1.52 £1.27
479317	AK704538 In stock	Use Ak704538	£0.98 £0.82
479498	AK479498 Available to backorder	Screw	£0.88 £0.73
479581	AK479581 Available to backorder	Washer	£1.36 £1.13
479601	AK479601 Available to backorder	Screw M6x12	£1.10 £0.92
481013	AK481013 Available to backorder	Opc Cable	£33.28 £27.73
481015	AK481015 Available to backorder	Screw M8x28	£1.26 £1.05
492151	AK492151 Available to backorder	Height Quadrant	£12.88 £10.73
492162	AK492162 Available to backorder	Bolt - Hand Nut	£1.20 £1.00
492165	AK492165 In stock	Front Wheel	£16.91 £14.09
492169	AK492169 Available to backorder	Wheel Assembly	£20.38 £16.98
492195	AK492195 Available to backorder	Washer	£0.70 £0.58
492196	AK492196 Available to backorder	Spring Washer	£0.70 £0.58
492197	AK492197 Available to backorder	Bolt B Grade M6x14	£2.03 £1.69
492198	AK492198 Available to backorder	Screw	£1.62 £1.35
492199	AK492199 Available to backorder	Washer	£0.70 £0.58
492241	AK492241 Available to backorder	Blade Bolt	£2.68 £2.23
492242	AK492242 Available to backorder	Blade	£26.18 £21.82
492243	AK492243 Available to backorder	Blade Boss	£12.52 £10.43
492246	AK492246 Available to backorder	Clip Spring Connecting Rod	£5.08 £4.23
492247	AK492247 Available to backorder	Grass Bag Frame	£30.56 £25.47
492248	AK492248 Available to backorder	Grass Bag	£32.58 £27.15
492249	AK492249 Available to backorder	Rear Flap	£17.30 £14.42
492250	AK492250 Available to backorder	Flap Spring	£1.52 £1.27
492251	AK492251 Available to backorder	Rod	£3.42 £2.85
492254	AK492254 Available to backorder	Left Fixer	£12.88 £10.73
492255	AK492255 Available to backorder	Right Fixer	£12.88 £10.73
492259	AK492259 Available to backorder	Spring Clip	£0.78 £0.65
492260	AK492260 Available to backorder	Bush Front Axle	£53.18 £44.32
492261	AK492261 Available to backorder	Rear Axle	£52.76 £43.97
492268	AK492268 Available to backorder	Nut M6	£1.04 £0.87
492329	AK492329 Available to backorder	Fixed Plate Right Rear Axle	£2.74 £2.28
492330	AK492330 Available to backorder	Fixed Plate Left Rear Axle	£2.74 £2.28
47996140	AK47996140 Available to backorder	Wheel Cap	£7.82 £6.52
47996240	AK47996240 Available to backorder	Wheel Cap	£5.42 £4.52
49216301	AK49216301 Available to backorder	Hand Nut	£5.78 £4.82
49222502	AK49222502 Available to backorder	Opc Lever	£14.60 £12.17
49224040	AK49224040 Available to backorder	Deck Comp Assembly	£69.40 £57.83
49224502	AK49224502 Available to backorder	Connecting Rod	£15.60 £13.00
49225240	AK49225240 Available to backorder	Top Handle	£31.22 £26.02
49225340	AK49225340 Available to backorder	Lower Handle	£30.18 £25.15
49230602	AK49230602 Available to backorder	Height Lever	£13.50 £11.25
