AL-KO Dynamic 2200 S - 104997 - Main Assembly: from 6.2005

Name: AL-KO Dynamic 2200 S - 104997 - Main Assembly: from 6.2005
SKU: AK104997_1_from_6_2005-group
Price: 0.48 GBP
Availability: InStock

Part No. AK104997_1_from_6_2005-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Dynamic 2200 S - 104997 - Main Assembly: from 6.2005

Description

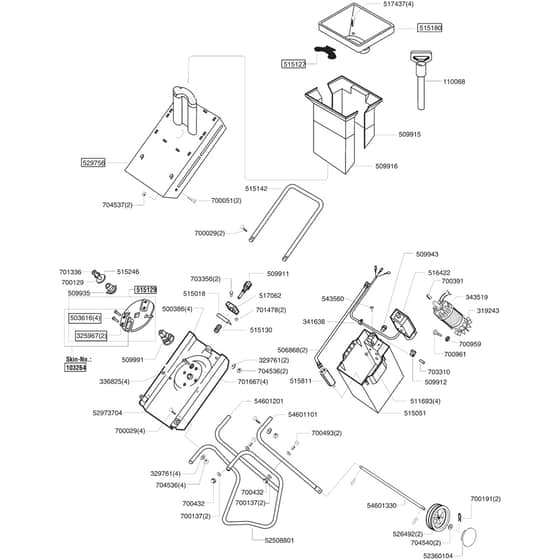

AL-KO Dynamic 2200 S - 104997 - Main Assembly - Parts Diagram

from 6.2005

	Part No.	Details
325967	AK517828 Available to backorder	Use Ak517828	£13.56 £11.30
329761	AK329761 Available to backorder	Curved Washer	£1.76 £1.47
336825	AK336825 Available to backorder	Screw	£1.34 £1.12
341638	AK341638 Available to backorder	Clip	£1.01 £0.84
500386	AK450417 In stock	Use Ak450417	£0.84 £0.70
503616	AK503616 In stock	Blade Screw	£1.55 £1.29
509911	AK509911 Available to backorder	Handscrew	£5.64 £4.70
509935	AK509935 Available to backorder	Retainer	£7.20 £6.00
509943	AK509943 Available to backorder	Connector	£1.97 £1.64
511693	AK468878 Available to backorder	Use Ak468878	£0.86 £0.72
515018	AK515018 Available to backorder	Bracket	£3.14 £2.62
515051	AK515051 Available to backorder	Housing	£23.52 £19.60
515130	AK515130 Available to backorder	Spring	£1.86 £1.55
515246	AK51524630 In stock	Use Ak51524630	£1.90 £1.58
515811	AK515811 Available to backorder	Capacitor 25Uf	£26.88 £22.40
526492	AK548530 Available to backorder	Use Ak548530	£20.40 £17.00
529756	AK529756 Available to backorder	Cover	£88.56 £73.80
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
700029	AK700029 Available to backorder	Screw	£0.84 £0.70
700051	AK700051 Available to backorder	Screw M8x20	£0.82 £0.68
700129	AK700129 Available to backorder	Spring Washer	£1.32 £1.10
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700191	AK700191 Available to backorder	Pin	£0.58 £0.48
700391	AK700391 Available to backorder	Keyway	£1.27 £1.06
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700493	AK700493 Available to backorder	Bolt	£1.42 £1.18
700959	AK700959 Available to backorder	Washer	£0.84 £0.70
700961	AK700961 Available to backorder	Screw	£0.84 £0.70
701336	AK701336 Available to backorder	Bolt 10x35	£1.68 £1.40
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701667	AK701667 Available to backorder	Washer	£0.84 £0.70
703310	AK703310 Available to backorder	Pin	£1.01 £0.84
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704540	AK704540 Available to backorder	Washer M12	£0.84 £0.70
52360104	AK52360104 Available to backorder	Wheel Cap Yellow	£2.42 £2.02
52973704	AK52973704 Available to backorder	Housing	£61.92 £51.60
54601201	AK54601201 Available to backorder	Tube	£20.40 £17.00
54601330	AK54601330 Available to backorder	Axle	£12.48 £10.40
