AL-KO Concord T20-102 HDE - 118327 - Grass Box: 10.2003 - 12.2004

Name: AL-KO Concord T20-102 HDE - 118327 - Grass Box: 10.2003 - 12.2004
SKU: AK118327_7_10_2003_12_2004-group
Price: 0.66 GBP
Availability: InStock

Part No. AK118327_7_10_2003_12_2004-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord T20-102 HDE - 118327 - Grass Box: 10.2003 - 12.2004

Description

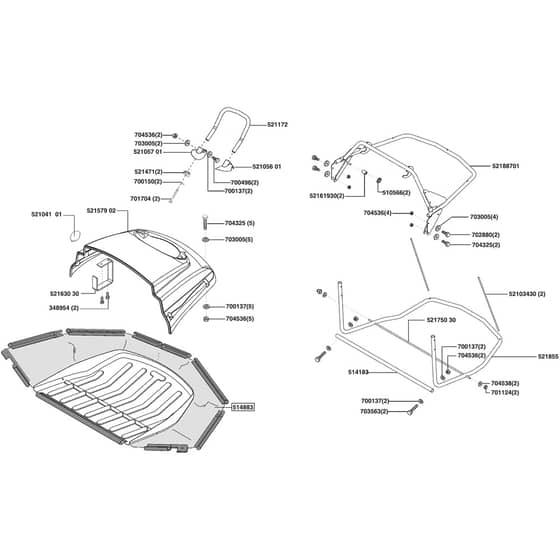

AL-KO Concord T20-102 HDE - 118327 - Grass Box - Parts Diagram

10.2003 - 12.2004

	Part No.	Details
510566	AK510566 Available to backorder	Fastener 8mm	£1.42 £1.18
514183	AK514183 In stock	Bar	£14.16 £11.80
514883	AK476627 Available to backorder	Use Ak476627	£101.52 £84.60
521172	AK521172 In stock	Supporting Handle T102 - Nut Ak514320	Was £38.08 £31.73 Special Price £25.13 £20.94
521471	AK521471 Available to backorder	Spacer	£1.70 £1.42
521855	AK521855 Available to backorder	Tube	£36.24 £30.20
700137	AK700137 In stock	Washer M6	£1.08 £0.90
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700496	AK700496 In stock	Screw	£0.86 £0.72
701124	AK701124 Available to backorder	Dome Nut M8	£0.80 £0.67
701704	AK701704 In stock	Screw M8x60	£1.58 £1.32
702880	AK700866 Available to backorder	Use Ak700866	£0.89 £0.74
703005	AK700148 In stock	Washer M6	£0.86 £0.72
703563	AK703563 Available to backorder	Screw M6x45	£0.84 £0.70
704325	AK700553 In stock	Use Ak700553	£0.79 £0.66
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704538	AK704538 In stock	Washer M8	£1.09 £0.91
52103430	AK52103430 Available to backorder	Spacer	£7.92 £6.60
52104101	AK52104101 Available to backorder	Plug	£2.34 £1.95
52105601	AK52105601 Available to backorder	Holder	Was £12.36 £10.30 Special Price £8.64 £7.20
52105701	AK52105701 Available to backorder	Cap Kit	Was £12.36 £10.30 Special Price £8.64 £7.20
52157902	AK52157902 In stock	Box Cover	£95.52 £79.60
52161930	AK52161930 Available to backorder	Spacer	£3.72 £3.10
52163030	AK52163030 Available to backorder	Bracket	£77.16 £64.30
52175030	AK52175030 Available to backorder	Rod	£10.68 £8.90
52188701	AK52188701 Available to backorder	Tube	£127.20 £106.00
