AL-KO Concord T15-102 HD - 118247 - Grass Box: before 6.2002

Name: AL-KO Concord T15-102 HD - 118247 - Grass Box: before 6.2002
SKU: AK118247_7_before_6_2002-group
Price: 0.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord T15-102 HD - 118247 - Grass Box: before 6.2002

Description

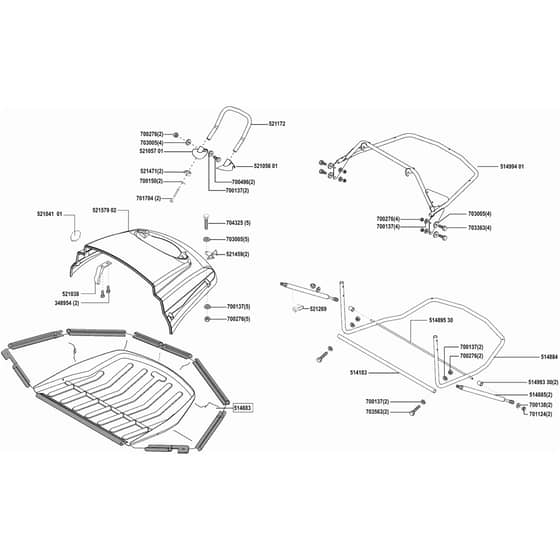

AL-KO Concord T15-102 HD - 118247 - Grass Box - Parts Diagram

before 6.2002

Be the first to review this product

0 product questions

	Part No.	Details
514183	AK514183 Available to backorder	Bar	£15.14 £12.62
514883	AK476627 Available to backorder	Use Ak476627	£102.02 £85.02
514884	AK514884 Available to backorder	Lower Box Pipe	£38.80 £32.33
514885	AK514885 In stock	Gas Strut Assy	£54.08 £45.07
521172	AK521172 In stock	Supporting Handle T102 - Nut Ak514320	£38.08 £31.73
521269	AK468886 Available to backorder	Use Ak468886	£3.20 £2.67
521459	AK521459 In stock	Clip	£1.55 £1.29
521471	AK521471 In stock	Spacer	£1.55 £1.29
700137	AK700137 In stock	Washer M6	£0.97 £0.81
700138	AK704538 In stock	Washer M8	£0.98 £0.82
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700496	AK700496 In stock	Screw	£0.78 £0.65
701124	AK701124 Available to backorder	Dome Nut M8	£0.66 £0.55
701704	AK701704 In stock	Screw M8x60	£1.44 £1.20
703005	AK700148 In stock	Washer M6	£0.79 £0.66
703363	AK703363 Available to backorder	Screw	£0.68 £0.57
703563	AK703563 Available to backorder	Screw M6x45	£0.77 £0.64
704325	AK700553 In stock	Use Ak700553	£0.72 £0.60
51489530	AK51489530 Available to backorder	Box Strut T102	£8.64 £7.20
51499330	AK51499330 Available to backorder	Sleeve	£6.78 £5.65
51499401	AK49308301 Available to backorder	Upper Frame T102	£94.22 £78.52
52104101	AK52104101 In stock	Plug	£2.34 £1.95
52105601	AK52105601 In stock	Holder	£13.09 £10.91
52105701	AK52105701 In stock	Cap Kit	£13.09 £10.91
52157902	AK52157902 In stock	Box Cover	£102.94 £85.78
