AL-KO Concord T14-85 HD - 110821 - Body Work And Seat: 8.2001 - 1.2002

Name: AL-KO Concord T14-85 HD - 110821 - Body Work And Seat: 8.2001 - 1.2002
SKU: AK110821_1_8_2001_1_2002-group
Price: 0.58 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord T14-85 HD - 110821 - Body Work And Seat: 8.2001 - 1.2002

Description

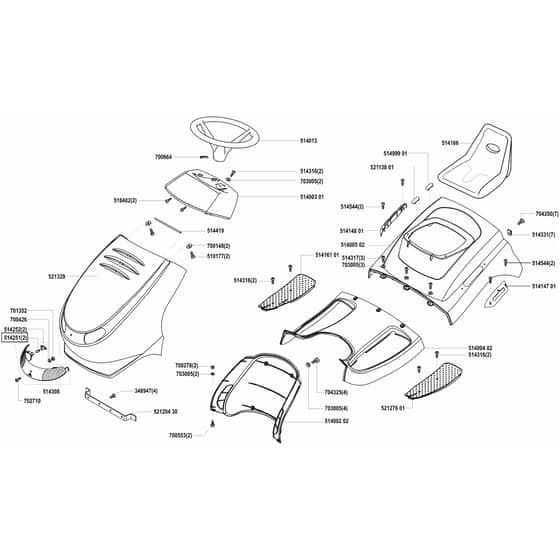

AL-KO Concord T14-85 HD - 110821 - Body Work And Seat - Parts Diagram

8.2001 - 1.2002

Be the first to review this product

0 product questions

	Part No.	Details
348947	AK470375 Available to backorder	Screw	£0.70 £0.58
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
514013	AK514013 Available to backorder	Steering Wheel	£57.02 £47.52
514166	AK514166 Available to backorder	Seat	£118.54 £98.78
514251	AK521528 Available to backorder	Use Ak521528	£11.68 £9.73
514252	AK514252 Available to backorder	Bulb Holder	£8.78 £7.32
514316	AK514316 Available to backorder	Screw	£1.18 £0.98
514317	AK514317 Available to backorder	Screw	£1.28 £1.07
514331	AK514331 Available to backorder	Nut	£1.20 £1.00
514544	AK514544 Available to backorder	Screw	£0.84 £0.70
518482	AK518482 Available to backorder	Screw 18mm	£0.84 £0.70
521329	AK514568 Available to backorder	Use Ak464706	£300.96 £250.80
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700426	AK700426 Available to backorder	Washer M4	£0.84 £0.70
700553	AK700553 In stock	Screw M6x40	£0.72 £0.60
700664	AK700664 Available to backorder	Pin	£1.62 £1.35
701352	AK701352 Available to backorder	Nut	£0.84 £0.70
702710	AK702710 Available to backorder	Screw	£0.70 £0.58
704350	AK468569 Available to backorder	Use Ak468569	£1.25 £1.04
51400202	AK51400202 Available to backorder	Lower Section	£65.50 £54.58
51400301	AK521084 Available to backorder	Use Ak521084	£39.04 £32.53
51400402	AK51400402 Available to backorder	Panel	£77.18 £64.32
51400502	AK52142502 Available to backorder	Use Ak52142502	£92.44 £77.03
51414701	AK521164 Available to backorder	Use Ak521164	£21.28 £17.73
51414801	AK521085 Available to backorder	Use Ak521085	£15.92 £13.27
51499901	AK51499901 Available to backorder	Cap	£1.74 £1.45
52113801	AK52113801 Available to backorder	Cap	£1.86 £1.55
52120430	AK52120430 Available to backorder	Bracket	£9.50 £7.92
52127601	AK52127601 Available to backorder	Foot Matt L/H	£20.86 £17.38
