AL-KO Concord T13-102 SP - 118179 - Cutterdeck: from 1.2002

Description

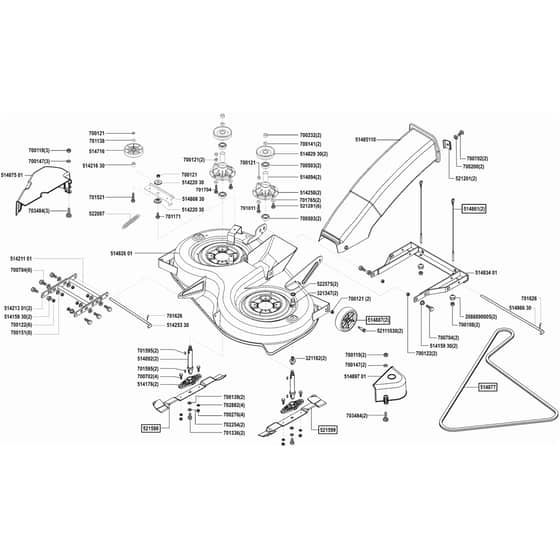

AL-KO Concord T13-102 SP - 118179 - Cutterdeck - Parts Diagram

from 1.2002

Be the first to review this product

0 product questions

	Part No.	Details
321182	AK321182 Available to backorder	Jet	£3.55 £2.96
321347	AK321347 Available to backorder	Hose Connector	£7.70 £6.42
514092	AK452585 In stock	Use Ak452585	£102.60 £85.50
514094	AK514094 Available to backorder	Spacer	£10.82 £9.02
514176	AK514176 In stock	Blade Boss	£24.16 £20.13
514716	AK464454 Available to backorder	Use Ak464454	£30.43 £25.36
514861	AK514861 Available to backorder	Lift Cable	£8.38 £6.98
514877	AK514877 Available to backorder	Deck Belt - (Twin Blade)	£92.42 £77.02
514887	AK514887 Available to backorder	Deck Wheel	£17.52 £14.60
521201	AK521201 Available to backorder	Disc	£1.44 £1.20
521281	AK458568 In stock	Screw - Self Tapping	£2.03 £1.69
521598	AK521207 Available to backorder	Use Ak521207	£48.86 £40.72
521599	AK521208 Available to backorder	Use Ak521208	£48.86 £40.72
522087	AK522087 In stock	Spring	£8.69 £7.24
522575	AK522575 Available to backorder	O-Ring	£1.46 £1.22
700108	AK704533 Available to backorder	Nut - M8	£0.68 £0.57
700119	AK700119 Available to backorder	Nut M5	£1.86 £1.55
700121	AK704537 In stock	Use Ak704537	£1.04 £0.87
700122	AK703813 Available to backorder	Use Ak703813	£0.68 £0.57
700139	AK704539 Available to backorder	Washer M10	£0.70 £0.58
700141	AK702541 Available to backorder	Use Ak702541	£0.68 £0.57
700147	AK703451 Available to backorder	Washer	£3.26 £2.72
700151	AK700151 Available to backorder	Washer M10	£0.70 £0.58
700200	AK700200 Available to backorder	Washer	£0.68 £0.57
700232	AK702801 Available to backorder	Nut When Nil Use Ak702801	£3.24 £2.70
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700503	AK476634 Available to backorder	Use Ak476634	£9.89 £8.24
700702	AK700702 In stock	Screw M6x25	£0.91 £0.76
700704	AK700704 Available to backorder	Screw M10x30	£1.50 £1.25
701011	AK701011 Available to backorder	Screw M8x50	£1.46 £1.22
701138	AK706592 Available to backorder	Use Ak706592	£12.78 £10.65
701171	AK701171 Available to backorder	Screw M8x30	£0.84 £0.70
701336	AK701336 Available to backorder	Bolt 10x35	£1.52 £1.27
701521	AK701521 Available to backorder	Screw M8x40	£1.24 £1.03
701595	AK701595 In stock	Key	£1.28 £1.07
701626	AK701626 Available to backorder	R Clip	£1.04 £0.87
701704	AK701704 In stock	Screw M8x60	£1.44 £1.20
701765	AK700201 Available to backorder	Washer M8	£0.77 £0.64
702254	AK702254 Available to backorder	Washer M10 (Alt Use Ak700202)	£0.98 £0.82
702882	AK700137 In stock	Use Ak700137	£0.97 £0.81
703484	AK703484 Available to backorder	Screw M5x16	£0.79 £0.66
51415930	AK51415930 Available to backorder	Spacer	£2.46 £2.05
51421101	AK46113601 Available to backorder	Use Ak46113601	£33.08 £27.57
51421301	AK51421301 Available to backorder	Height Adjuster	£12.20 £10.17
51421630	AK514216 Available to backorder	Use Ak514216	£2.72 £2.27
51422030	AK514220 Available to backorder	Use Ak514220	£4.58 £3.82
51425330	AK51425330 Available to backorder	Bar/Rod	£16.18 £13.48
51482601	AK51482601 Available to backorder	Cutter Deck 102cm - Rear Discharge	£319.68 £266.40
51482930	AK521451 In stock	Use Ak521451	£46.61 £38.84
51483401	AK51483401 Available to backorder	Suspension Device - Rear Deck	£52.56 £43.80
51485110	AK51496710 Available to backorder	Use Ak51496710	£86.18 £71.82
51486630	AK51486630 Available to backorder	Rod	£18.42 £15.35
51486830	AK514868 Available to backorder	Use Ak514868	£6.86 £5.72
51487501	AK51487501 Available to backorder	Pulley Guard 102cm Deck	£13.18 £10.98
51489701	AK51489701 Available to backorder	Cover	£7.84 £6.53
52111030	AK521110 In stock	Wheel Bolt	£7.87 £6.56
2088890005	AK468923 Available to backorder	Use Ak468923	£5.00 £4.17
