AL-KO Concord T12-85 - 110725 - Main Body

Name: AL-KO Concord T12-85 - 110725 - Main Body
SKU: AK110725_1-group
Price: 0.64 GBP
Availability: InStock

Part No. AK110725_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord T12-85 - 110725 - Main Body

Description

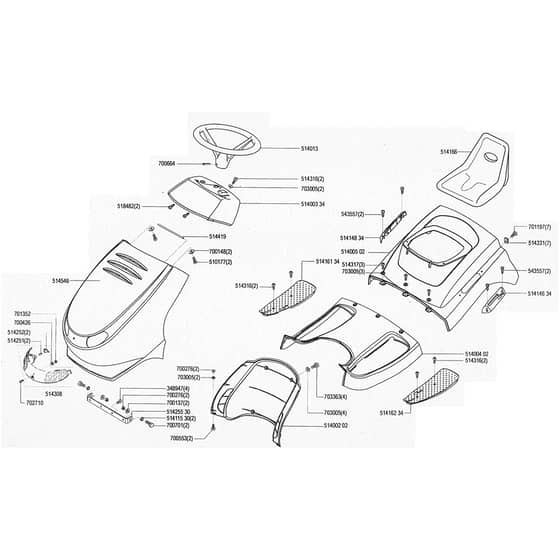

AL-KO Concord T12-85 - 110725 - Main Body - Parts Diagram

	Part No.	Details
348947	AK470375 Available to backorder	Screw	£0.86 £0.72
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
514013	AK514013 Available to backorder	Steering Wheel	£59.04 £49.20
514166	AK514166 Available to backorder	Seat	£119.16 £99.30
514251	AK521528 Available to backorder	Use Ak521528	£12.12 £10.10
514252	AK514252 Available to backorder	Bulb Holder	£9.12 £7.60
514316	AK514316 Available to backorder	Screw	£1.42 £1.18
514317	AK514317 Available to backorder	Screw	£1.54 £1.28
514331	AK514331 Available to backorder	Nut	£1.44 £1.20
514546	AK514568 Available to backorder	Use Ak464706	£312.00 £260.00
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
543557	AK514544 Available to backorder	Use Ak514544	£1.01 £0.84
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
700426	AK700426 Available to backorder	Washer M4	£1.01 £0.84
700553	AK700553 In stock	Screw M6x40	£0.79 £0.66
700664	AK700664 Available to backorder	Pin	£1.76 £1.47
700701	AK700701 Available to backorder	Screw M6x25	£0.77 £0.64
701197	AK701197 Available to backorder	Screw	£0.86 £0.72
701352	AK701352 Available to backorder	Nut	£1.01 £0.84
702710	AK702710 Available to backorder	Screw	£0.84 £0.70
703363	AK703363 Available to backorder	Screw	£0.82 £0.68
51400202	AK51400202 Available to backorder	Lower Section	£67.80 £56.50
51400334	AK521084 Available to backorder	Use Ak521084	£40.44 £33.70
51400402	AK51400402 Available to backorder	Panel	£79.80 £66.50
51400502	AK52142502 Available to backorder	Use Ak52142502	£95.64 £79.70
51411530	AK51411530 Available to backorder	Spacer	£1.76 £1.47
51414634	AK521086 Available to backorder	Use Ak521086	£16.44 £13.70
51414834	AK521085 Available to backorder	Use Ak521085	£16.44 £13.70
