AL-KO Concord T11-75 - 110724 - Fuel Tank & Handles

Name: AL-KO Concord T11-75 - 110724 - Fuel Tank & Handles
SKU: AK110724_6-group
Price: 0.4 GBP
Availability: InStock

Part No. AK110724_6-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord T11-75 - 110724 - Fuel Tank & Handles

Description

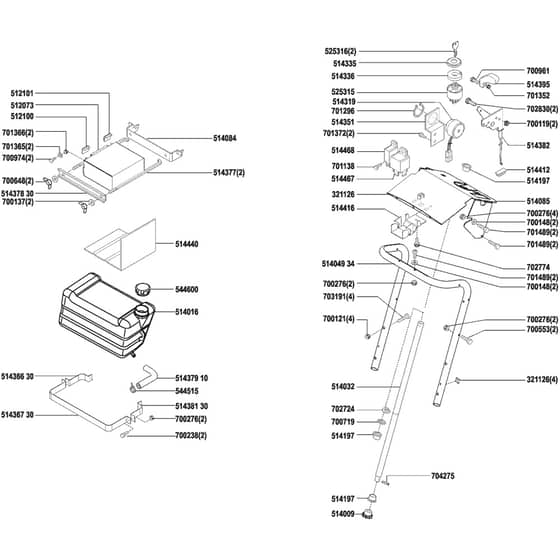

AL-KO Concord T11-75 - 110724 - Fuel Tank & Handles - Parts Diagram

	Part No.	Details
321126	AK321126 Available to backorder	Nut	£1.01 £0.84
512073	AK494458VA Available to backorder	Use Ak451000	£126.48 £105.40
512100	AK512100 Available to backorder	Clip	£4.44 £3.70
514009	AK51400930 In stock	Use Ak51400930	£23.99 £19.99
514016	AK457706 Available to backorder	Use Ak521794	£70.80 £59.00
514032	AK51403230 Available to backorder	Use Ak51403230	£33.36 £27.80
514084	AK514084 Available to backorder	Battery Bracket	£23.88 £19.90
514197	AK514197 In stock	Bushing	£4.61 £3.84
514319	AK458562 Available to backorder	Buzzer	£18.48 £15.40
514335	AK514335 Available to backorder	Ignition Lock Nut	£3.10 £2.58
514336	AK514336 Available to backorder	Spacer	£5.28 £4.40
514351	AK514351 Available to backorder	Bracket	£3.84 £3.20
514377	AK514377 Available to backorder	Rod	£3.24 £2.70
514382	AK514382 In stock	Cable - Single Cylinder	£21.72 £18.10
514395	AK473491 Available to backorder	Use Ak473491	£5.04 £4.20
514412	AK514412 Available to backorder	Plug	£1.86 £1.55
514416	AK514416 Available to backorder	Plate	£6.36 £5.30
514468	AK514468 Available to backorder	Starter	£30.12 £25.10
525315	AK525315 Available to backorder	Ignition Switch	£32.32 £26.93
525316	AK525316 In stock	Ignition Key - Delta Type	£5.23 £4.36
544515	AK544515 Available to backorder	Clip	£0.84 £0.70
544600	AK544600 In stock	Tank Cap	£9.95 £8.29
700119	AK700119 Available to backorder	Nut M5	£1.85 £1.54
700121	AK704537 In stock	Use Ak704537	£1.15 £0.96
700137	AK700137 Available to backorder	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
700553	AK700553 In stock	Screw M6x40	£0.79 £0.66
700648	AK700648 Available to backorder	Wingnut	£1.01 £0.84
700719	AK700719 Available to backorder	Washer 22mm	£1.66 £1.38
700961	AK700961 Available to backorder	Screw	£0.84 £0.70
701138	AK706592 In stock	Use Ak706592	£0.96 £0.80
701296	AK701296 Available to backorder	Circlip	£1.01 £0.84
701352	AK701352 Available to backorder	Nut	£1.01 £0.84
701365	AK701365 Available to backorder	Washer	£0.48 £0.40
701372	AK701372 Available to backorder	Screw	£0.84 £0.70
701489	AK703363 Available to backorder	Use Ak703363	£0.82 £0.68
702724	AK702724 In stock	E-Clip	£0.48 £0.40
702774	AK700555 Available to backorder	Use Ak700555	£0.82 £0.68
702830	AK702830 Available to backorder	Screws	£0.84 £0.70
703191	AK705614 Available to backorder	Use Ak705614	£1.01 £0.84
704275	AK704275 In stock	Roll Pin	£1.08 £0.90
51404934	AK514049 Available to backorder	Use Ak514049	£34.56 £28.80
51437910	AK51437910 Available to backorder	Fuel Line	£8.88 £7.40
