AL-KO Concord 4700 BRA - 118225 - Deck: 9.2002 - 8.2003

Name: AL-KO Concord 4700 BRA - 118225 - Deck: 9.2002 - 8.2003
SKU: AK118225_2_9_2002_8_2003-group
Price: 0.68 GBP
Availability: InStock

Part No. AK118225_2_9_2002_8_2003-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord 4700 BRA - 118225 - Deck: 9.2002 - 8.2003

Description

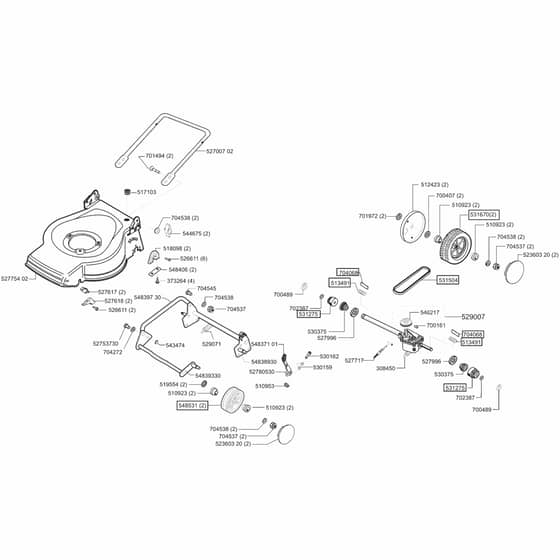

AL-KO Concord 4700 BRA - 118225 - Deck - Parts Diagram

9.2002 - 8.2003

	Part No.	Details
308450	AK308450 Available to backorder	Spring	£3.72 £3.10
373264	AK373264 Available to backorder	Screw 16mm	£0.89 £0.74
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
510953	AK510953 Available to backorder	Fastener M6	£1.01 £0.84
513491	AK513491 In stock	Spring	£0.88 £0.73
517103	AK517103 Available to backorder	Cable Grommet	£1.92 £1.60
519554	AK519554 In stock	Spacer	£1.55 £1.29
526611	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
527617	AK527617 Available to backorder	Bracket	£2.35 £1.96
527618	AK527618 Available to backorder	Bracket	£2.38 £1.98
527717	AK450756 In stock	Use Ak450756	£21.64 £18.03
529007	AK529007 Available to backorder	Gearbox	£116.40 £97.00
529071	AK529071 Available to backorder	Extension Spring	£4.20 £3.50
530159	AK530159 Available to backorder	Spring	£3.24 £2.70
530162	AK530162 Available to backorder	Pop Rivet	£1.25 £1.04
530375	AK530375 Available to backorder	Bush	£9.36 £7.80
531275	AK531275 Available to backorder	Pinion	£15.72 £13.10
531504	AK531504 In stock	Belt	£16.79 £13.99
531670	AK527845 Available to backorder	Use Ak527845	£25.56 £21.30
543474	AK543474 In stock	Circlip	£0.88 £0.73
544675	AK544675 Available to backorder	Wingnut M8 - Black	£3.04 £2.53
546217	AK546217 Available to backorder	Pulley	£14.40 £12.00
548406	AK548406 Available to backorder	Plate	£2.80 £2.33
548531	AK548531 Available to backorder	No Longer Available	£22.44 £18.70
700161	AK705986 Available to backorder	Roll Pin	£1.54 £1.28
700407	AK700407 Available to backorder	Washer M12	£0.84 £0.70
700489	AK700489 In stock	Circlip	£0.89 £0.74
701494	AK701494 Available to backorder	Bolt	£0.84 £0.70
701972	AK701972 Available to backorder	Washer 13mm	£0.82 £0.68
702387	AK702387 Available to backorder	Washer M10	£0.84 £0.70
704068	AK704068 In stock	Pawl	£0.88 £0.73
704272	AK704272 In stock	Washer 8mm	£1.09 £0.91
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704545	AK704545 In stock	Screw M8x25	£1.03 £0.86
52360320	AK52360320 Available to backorder	Wheel Cap	£3.96 £3.30
52700702	AK52700740 Available to backorder	Use Ak52700740	£33.72 £28.10
52753730	AK527537 In stock	Use Ak527537	£2.95 £2.46
54837101	AK54837101 Available to backorder	Grip	£6.48 £5.40
