AL-KO Concord 4700 BR - 118224 - Deck: 8.2003 - 9.2004

Name: AL-KO Concord 4700 BR - 118224 - Deck: 8.2003 - 9.2004
SKU: AK118224_2_8_2003_9_2004-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord 4700 BR - 118224 - Deck: 8.2003 - 9.2004

Description

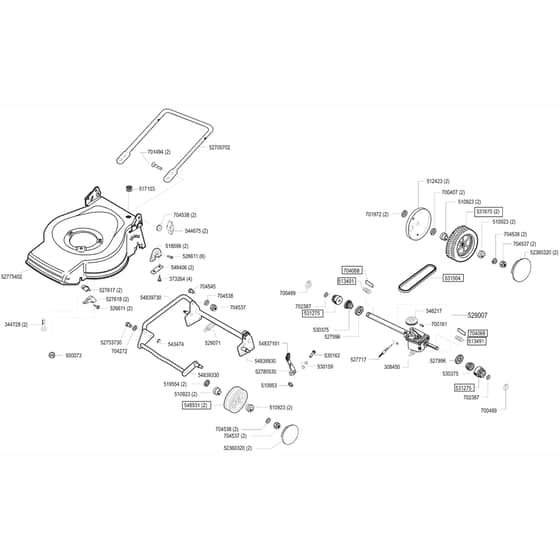

AL-KO Concord 4700 BR - 118224 - Deck - Parts Diagram

8.2003 - 9.2004

Be the first to review this product

0 product questions

	Part No.	Details
308450	AK308450 Available to backorder	Spring	£3.62 £3.02
344728	AK344728 Available to backorder	Ak344728	£1.70 £1.42
373264	AK373264 Available to backorder	Screw 16mm	£0.70 £0.58
500073	AK500073 In stock	Nut	£1.28 £1.07
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
510953	AK510953 Available to backorder	Fastener M6	£0.84 £0.70
513491	AK513491 In stock	Spring	£0.78 £0.65
517103	AK517103 Available to backorder	Cable Grommet	£1.68 £1.40
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
526611	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
527617	AK527617 Available to backorder	Bracket	£2.16 £1.80
527618	AK527618 Available to backorder	Bracket	£2.18 £1.82
527717	AK450756 In stock	Use Ak450756	£22.42 £18.68
529007	AK529007 Available to backorder	Gearbox	£121.26 £101.05
529071	AK529071 Available to backorder	Extension Spring	£4.08 £3.40
530159	AK530159 Available to backorder	Spring	£3.08 £2.57
530162	AK530162 Available to backorder	Pop Rivet	£1.04 £0.87
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
531504	AK531504 In stock	Belt	£17.68 £14.73
531670	AK527845 Available to backorder	Use Ak527845	£24.72 £20.60
543474	AK543474 In stock	Circlip	£0.78 £0.65
544675	AK544675 Available to backorder	Wingnut M8 - Black	£2.78 £2.32
546217	AK546217 Available to backorder	Pulley	£14.16 £11.80
548406	AK548406 Available to backorder	Plate	£2.56 £2.13
548531	AK548531 Available to backorder	No Longer Available	£21.72 £18.10
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700489	AK700489 In stock	Circlip	£0.78 £0.65
701494	AK701494 Available to backorder	Bolt	£0.70 £0.58
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702387	AK702387 Available to backorder	Washer M10	£0.70 £0.58
704068	AK704068 In stock	Pawl	£0.80 £0.67
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
52360320	AK52360320 Available to backorder	Wheel Cap	£3.82 £3.18
52700702	AK52700740 Available to backorder	Use Ak52700740	£32.58 £27.15
52753730	AK527537 In stock	Use Ak527537	£2.94 £2.45
54837101	AK54837101 Available to backorder	Grip	£6.22 £5.18
