AL-KO Concord 4000 - 110637 - Main Assembly

Name: AL-KO Concord 4000 - 110637 - Main Assembly
SKU: AK110637_1-group
Price: 0.58 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord 4000 - 110637 - Main Assembly

Description

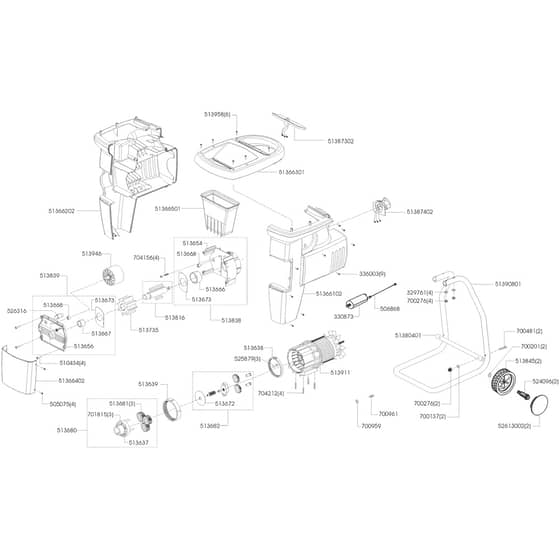

AL-KO Concord 4000 - 110637 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
329761	AK329761 Available to backorder	Curved Washer	£1.62 £1.35
330873	9409 In stock	Condenser 16Mf D36	£7.44 £6.20
336003	AK336003 Available to backorder	Screw 20mm	£0.84 £0.70
505075	AK505075 Available to backorder	Screw 15mm	£1.12 £0.93
510434	AK525779 Available to backorder	Use Ak525779	£1.18 £0.98
513637	AK450427 Available to backorder	Use Ak450427	£63.12 £52.60
513638	AK513638 Available to backorder	Inner Ring	£34.12 £28.43
513639	AK513639 Available to backorder	Outer Ring	£44.96 £37.47
513654	AK513838 Available to backorder	Use Ak513838	£55.64 £46.37
513667	AK513667 Available to backorder	Bush	£13.58 £11.32
513668	AK513668 Available to backorder	Spacer	£3.22 £2.68
513672	AK513672 Available to backorder	Disc	£4.26 £3.55
513673	AK513673 Available to backorder	Strip	£3.22 £2.68
513681	AK513928 Available to backorder	Use Ak513928	£32.72 £27.27
513682	AK513682 Available to backorder	Small Bearing Assy	£61.74 £51.45
513816	AK529907 Available to backorder	Use Ak529907	£44.96 £37.47
513845	AK527823 Available to backorder	Use Ak527823	£18.98 £15.82
513958	AK513958 Available to backorder	Screw	£1.18 £0.98
524096	AK524096 In stock	Wheel Bolt	£3.34 £2.78
526316	AK52631630 Available to backorder	Use Ak52631630	£6.96 £5.80
700137	AK700137 In stock	Washer M6	£0.97 £0.81
700201	AK700201 Available to backorder	Grip Washer M8	£0.77 £0.64
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700481	AK700706 Available to backorder	Coach Bolt	£1.18 £0.98
700959	AK700959 Available to backorder	Washer	£0.70 £0.58
700961	AK700961 Available to backorder	Screw	£0.70 £0.58
704156	AK704156 Available to backorder	Screw	£0.96 £0.80
704212	AK704212 Available to backorder	Grubscrew	£4.04 £3.37
51366102	AK51366102 Available to backorder	Housing L/H	£73.30 £61.08
51366202	AK529303 Available to backorder	Use Ak529303	£42.60 £35.50
51366301	AK52630801 Available to backorder	Use Ak52630801	£33.26 £27.72
51366501	AK51366501 Available to backorder	Hopper	£43.04 £35.87
51387302	AK51387302 Available to backorder	Plate	£80.26 £66.88
51387402	AK51387401 Available to backorder	Use Ak51387401	£22.06 £18.38
51390801	AK51390801 Available to backorder	Frame	£30.02 £25.02
