AL-KO Comfort T850 - 118754 - Body Work And Seat: 8.2005 - 2.2006

Description

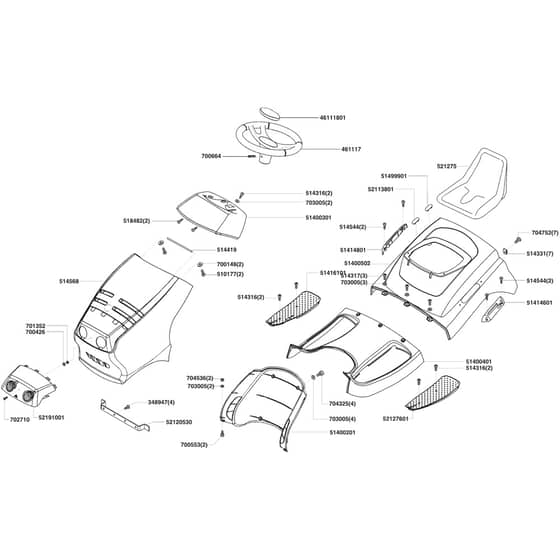

AL-KO Comfort T850 - 118754 - Body Work And Seat - Parts Diagram

8.2005 - 2.2006

Be the first to review this product

0 product questions

	Part No.	Details
348947	AK470375 Available to backorder	Screw	£0.70 £0.58
461117	AK461117 Available to backorder	Steering Wheel	£44.96 £37.47
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
514316	AK514316 Available to backorder	Screw	£1.18 £0.98
514317	AK514317 Available to backorder	Screw	£1.28 £1.07
514331	AK514331 Available to backorder	Nut	£1.20 £1.00
514544	AK514544 Available to backorder	Screw	£0.84 £0.70
514568	AK514568 Available to backorder	Bonnet	£300.96 £250.80
518482	AK518482 Available to backorder	Screw 18mm	£0.84 £0.70
521275	AK514166 Available to backorder	Use Ak514166	£118.54 £98.78
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700426	AK700426 Available to backorder	Washer M4	£0.84 £0.70
700553	AK700553 In stock	Screw M6x40	£0.72 £0.60
700664	AK700664 Available to backorder	Pin	£1.62 £1.35
701352	AK701352 Available to backorder	Nut	£0.84 £0.70
702710	AK702710 Available to backorder	Screw	£0.70 £0.58
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704752	AK468569 Available to backorder	Use Ak468569	£1.25 £1.04
46111801	AK46111802 Available to backorder	Cap	£4.16 £3.47
51400201	AK51400201 Available to backorder	Panel	£65.50 £54.58
51400301	AK521084 Available to backorder	Use Ak521084	£39.04 £32.53
51400401	AK46176201 Available to backorder	Use Ak46176201	£72.10 £60.08
51400502	AK52142502 Available to backorder	Use Ak52142502	£92.44 £77.03
51414601	AK521086 Available to backorder	Use Ak521086	£15.92 £13.27
51414801	AK521085 Available to backorder	Use Ak521085	£15.92 £13.27
51499901	AK51499901 Available to backorder	Cap	£1.74 £1.45
52113801	AK52113801 Available to backorder	Cap	£1.86 £1.55
52120530	AK52120530 Available to backorder	Bracket > When Nil Nla	£8.48 £7.07
52127601	AK52127601 Available to backorder	Foot Matt L/H	£20.86 £17.38
