AL-KO Comfort T750 - 118522 - Engine: from 11.2003

Name: AL-KO Comfort T750 - 118522 - Engine: from 11.2003
SKU: AK118522_4_from_11_2003-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort T750 - 118522 - Engine: from 11.2003

Description

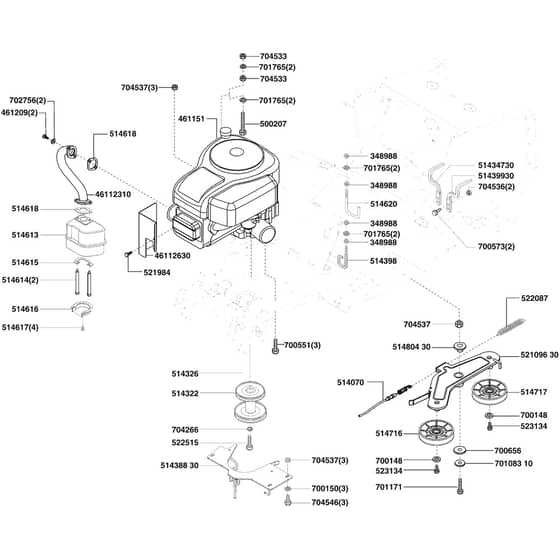

AL-KO Comfort T750 - 118522 - Engine - Parts Diagram

from 11.2003

Be the first to review this product

0 product questions

	Part No.	Details
348988	AK692795 Available to backorder	Nut	£1.18 £0.98
461209	AK461209 Available to backorder	Screw	£1.44 £1.20
514070	AK514070 Available to backorder	Tractor Clutch Cable	£30.43 £25.36
514322	AK514322 Available to backorder	Pulley	£68.30 £56.92
514326	AK514326 Available to backorder	Key	£1.52 £1.27
514398	AK514398 Available to backorder	Guide	£3.56 £2.97
514616	AK51461610 Available to backorder	Use Ak51461610	£9.34 £7.78
514617	AK51461710 Available to backorder	Use Ak51461710	£1.30 £1.08
514618	AK51461810 Available to backorder	Use Ak51461810	£2.36 £1.97
514620	AK514620 Available to backorder	Retaining Bracket	£12.38 £10.32
514716	AK464454 Available to backorder	Use Ak464454	£30.43 £25.36
514717	AK464455 Available to backorder	Use Ak464455	£36.54 £30.45
521984	AK521984 Available to backorder	Screw	£0.70 £0.58
522087	AK522087 In stock	Spring	£8.69 £7.24
522515	AK522515 Available to backorder	Screw 3/8Unf x 30	£7.68 £6.40
523134	AK523134 Available to backorder	Screw M6x12 St	£0.68 £0.57
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700551	AK703891 Available to backorder	Use Ak500071	£3.90 £3.25
700573	AK706086 Available to backorder	Use Ak706086	£0.70 £0.58
700656	AK705284 Available to backorder	Use Ak705284	£3.34 £2.78
701171	AK701171 Available to backorder	Screw M8x30	£0.84 £0.70
701765	AK700201 Available to backorder	Washer M8	£0.77 £0.64
702756	AK702756 Available to backorder	Tooth Lock Washer	£0.70 £0.58
704266	AK705615 Available to backorder	Use Ak705615	£0.72 £0.60
704533	AK704533 Available to backorder	Nut	£0.68 £0.57
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704546	AK704546 Available to backorder	Screw M8x20	£0.72 £0.60
46112310	AK46112310 Available to backorder	Elbow	£36.96 £30.80
46112630	AK46112630 Available to backorder	Plate	£21.38 £17.82
51434730	AK514347 Available to backorder	Use Ak514347	£7.90 £6.58
51438830	AK51438830 Available to backorder	Plate	£72.04 £60.03
51439930	AK514399 Available to backorder	Use Ak514399	£9.52 £7.93
51480430	AK51480430 Available to backorder	Spacer	£2.88 £2.40
52109630	AK52109630 Available to backorder	Pulley Arm	£49.52 £41.27
70108310	AK701083 Available to backorder	Use Ak701083	£0.68 £0.57
