AL-KO Comfort T750 - 118328 - Grass Box: 4.2004 - 10.2004

Name: AL-KO Comfort T750 - 118328 - Grass Box: 4.2004 - 10.2004
SKU: AK118328_7_4_2004_10_2004-group
Price: 0.68 GBP
Availability: InStock

Part No. AK118328_7_4_2004_10_2004-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort T750 - 118328 - Grass Box: 4.2004 - 10.2004

Description

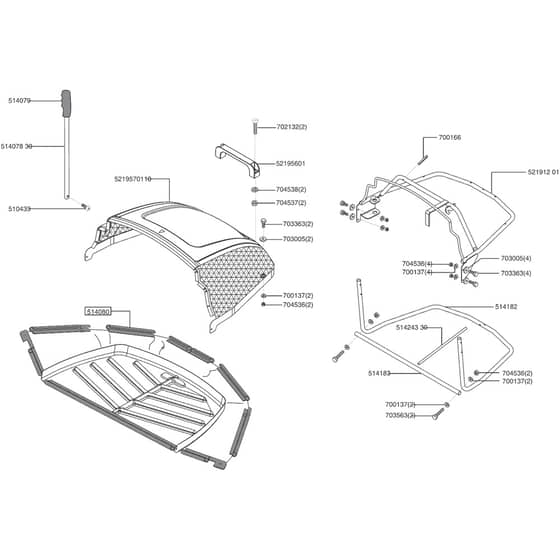

AL-KO Comfort T750 - 118328 - Grass Box - Parts Diagram

4.2004 - 10.2004

	Part No.	Details
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.70 £1.42
514079	AK514079 Available to backorder	Grip	£8.64 £7.20
514080	AK514080 Available to backorder	Grassbox Bottom	£88.68 £73.90
514182	AK514182 Available to backorder	Rear Frame	£27.60 £23.00
514183	AK514183 In stock	Bar	£14.16 £11.80
700137	AK700137 In stock	Washer M6	£1.08 £0.90
700166	AK700166 Available to backorder	Pin	£1.46 £1.22
702132	AK702132 Available to backorder	Screw	£1.01 £0.84
703005	AK700148 In stock	Washer M6	£0.86 £0.72
703363	AK703363 Available to backorder	Screw	£0.82 £0.68
703563	AK703563 Available to backorder	Screw M6x45	£0.84 £0.70
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
51407830	AK51407830 Available to backorder	Lever	£14.28 £11.90
51424330	AK51424330 Available to backorder	Bar	£7.56 £6.30
52191201	AK52191201 Available to backorder	No Longer Available - Frame	£74.64 £62.20
52195601	AK52195601 Available to backorder	Grip	£23.76 £19.80
2147483647	AK52195701 Available to backorder	Use Ak52195701	£96.48 £80.40
