AL-KO Comfort T13-93.7 HD - 127416 - Transmission: 2.2019 - 6.2019

Name: AL-KO Comfort T13-93.7 HD - 127416 - Transmission: 2.2019 - 6.2019
SKU: AK127416_4_2_2019_6_2019-group
Price: 0.4 GBP
Availability: InStock

Part No. AK127416_4_2_2019_6_2019-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort T13-93.7 HD - 127416 - Transmission: 2.2019 - 6.2019

Description

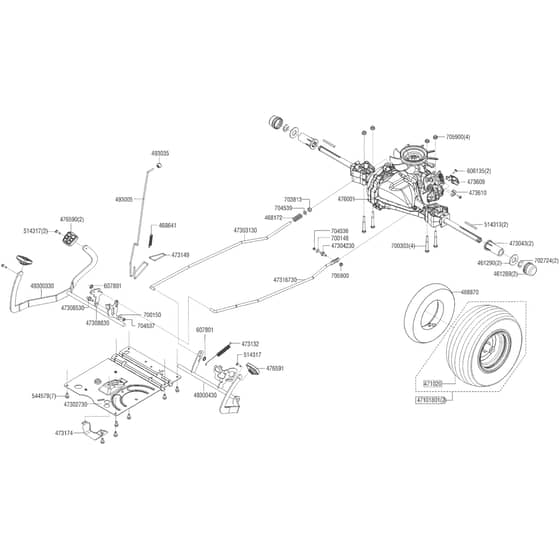

AL-KO Comfort T13-93.7 HD - 127416 - Transmission - Parts Diagram

2.2019 - 6.2019

	Part No.	Details
461289	AK461289 In stock	Cap	£5.39 £4.49
461290	AK461290 Available to backorder	Washer	£2.24 £1.87
468172	AK468172 Available to backorder	Spring Brake	£1.25 £1.04
468641	AK468641 In stock	Spring	£1.97 £1.64
468870	AK468870 Available to backorder	Tube	£34.20 £28.50
471020	AK471020 Available to backorder	Tire	£91.68 £76.40
473043	AK473043 Available to backorder	Bush	£4.92 £4.10
473132	AK473132 Available to backorder	Return Spring	£3.96 £3.30
473149	AK473149 Available to backorder	Brake	£2.22 £1.85
473174	AK473174 Available to backorder	Steering Column Bracket	£2.69 £2.24
473609	AK473609 Available to backorder	Case	£1.66 £1.38
473610	AK473610 Available to backorder	Clamp	£1.01 £0.84
476001	AK476001 Available to backorder	Nla - Gear Box	£502.68 £418.90
476590	AK476590 Available to backorder	Pedal Rubber	£3.36 £2.80
493005	AK493005 Available to backorder	Brake Linkage	£15.60 £13.00
493035	AK493035 Available to backorder	Knob	£5.28 £4.40
514313	AK514313 In stock	Key	£1.54 £1.28
514317	AK514317 Available to backorder	Screw	£1.54 £1.28
544578	AK544578 Available to backorder	Screw	£1.76 £1.47
607801	AK607801 Available to backorder	Washer	£0.82 £0.68
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700303	AK703926 Available to backorder	Use Ak703926	£1.76 £1.47
702724	AK702724 In stock	E-Clip	£0.48 £0.40
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.84 £0.70
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704539	AK704539 Available to backorder	Washer	£0.78 £0.65
705900	AK705900 Available to backorder	Nut	£0.84 £0.70
47101801	AK47101801 Available to backorder	Rear Wheel	£202.56 £168.80
47302730	AK47302730 Available to backorder	Steering Plate	£50.04 £41.70
47304230	AK47304230 Available to backorder	Screw	£4.32 £3.60
47308530	AK473085 Available to backorder	Bolt	£5.28 £4.40
47308830	AK47308830 Available to backorder	Bracket	£12.96 £10.80
49300330	AK49300330 Available to backorder	Pedal Rocker Arm	£62.64 £52.20
49300430	AK49300430 Available to backorder	Pedal Arm	£46.92 £39.10
