AL-KO Comfort T13-93.7 HD - 127416 - Deck Lift: 4.2018 - 2.2019

Description

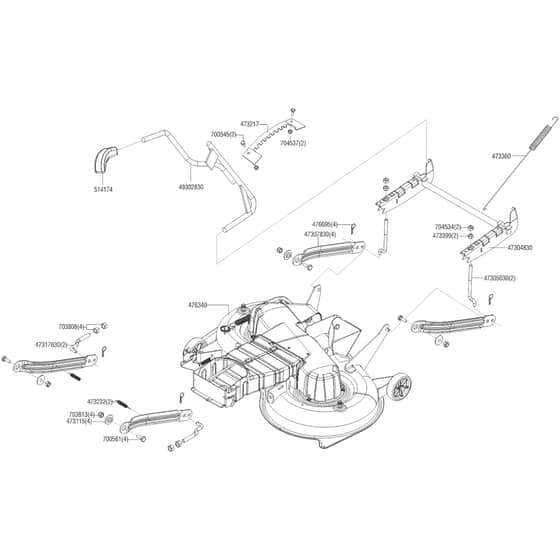

AL-KO Comfort T13-93.7 HD - 127416 - Deck Lift - Parts Diagram

4.2018 - 2.2019

Be the first to review this product

0 product questions

	Part No.	Details
473115	AK473115 Available to backorder	Bearing	£2.54 £2.12
473217	AK473217 Available to backorder	Screening Adj	£7.52 £6.27
473232	AK473232 Available to backorder	Spring Front Black	£2.66 £2.22
473360	AK473360 Available to backorder	Spring	£7.86 £6.55
473399	AK473399 Available to backorder	Pivot Nut M10 Domed	£2.02 £1.68
476340	AK476340 Available to backorder	Deck 95cm Complete Deck	£577.20 £481.00
476695	AK476695 In stock	Connector R-Clip	£0.90 £0.75
514174	AK514174 Available to backorder	Knob	£8.84 £7.37
700545	AK700545 Available to backorder	Bolt M8x16	£0.68 £0.57
700561	AK700561 Available to backorder	Screw M10x25	£1.18 £0.98
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.68 £0.57
704534	AK704534 Available to backorder	Nut M10	£0.68 £0.57
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
47305030	AK47305030 Available to backorder	Deck Hanger	£10.02 £8.35
47307830	AK47307830 Available to backorder	Swingarm	£14.00 £11.67
47317630	AK47317630 Available to backorder	Arm	£7.36 £6.13
49302830	AK49302830 Available to backorder	Deck Lift Lever	£41.56 £34.63
