AL-KO Comfort T13-93.7 HD - 127416 - Deck Lift: 11.2017 - 04.2018

Name: AL-KO Comfort T13-93.7 HD - 127416 - Deck Lift: 11.2017 - 04.2018
SKU: AK127416_5_11_2017_04_2018-group
Price: 0.68 GBP
Availability: InStock

Part No. AK127416_5_11_2017_04_2018-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort T13-93.7 HD - 127416 - Deck Lift: 11.2017 - 04.2018

Description

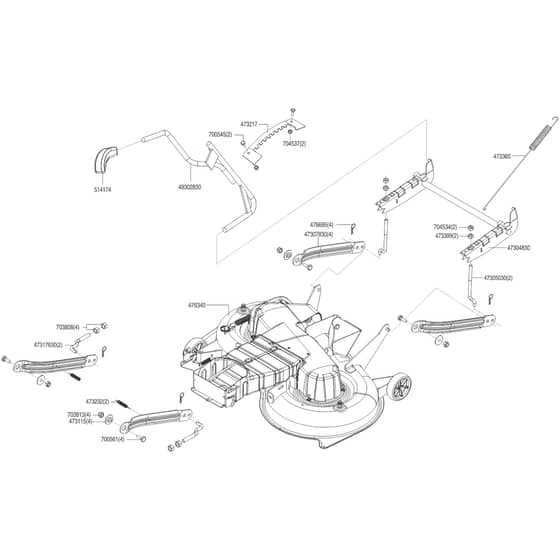

AL-KO Comfort T13-93.7 HD - 127416 - Deck Lift - Parts Diagram

11.2017 - 04.2018

	Part No.	Details
473115	AK473115 Available to backorder	Bearing	£2.75 £2.29
473217	AK473217 Available to backorder	Screening Adj	£8.04 £6.70
473232	AK473232 Available to backorder	Spring Front Black	£2.96 £2.47
473360	AK473360 Available to backorder	Spring	£8.52 £7.10
473399	AK473399 Available to backorder	Pivot Nut M10 Domed	£2.21 £1.84
476340	AK476340 Available to backorder	Deck 95cm Complete Deck	£519.06 £432.55
476695	AK476695 In stock	Connector R-Clip	£1.02 £0.85
514174	AK514174 Available to backorder	Knob	£9.12 £7.60
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700561	AK700561 Available to backorder	Screw M10x25	£1.42 £1.18
703813	AK703813 Available to backorder	Nut - Check For Unf 10x1 Order Ak706018	£0.84 £0.70
704534	AK704534 Available to backorder	Nut M10	£0.82 £0.68
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
47305030	AK47305030 Available to backorder	Deck Hanger	£8.76 £7.30
47307830	AK47307830 Available to backorder	Swingarm	£14.52 £12.10
47317630	AK47317630 Available to backorder	Arm	£6.84 £5.70
49302830	AK49302830 Available to backorder	Deck Lift Lever	£42.96 £35.80
