AL-KO Comfort T13-93.7 HD - 127416 - Collector: 4.2018 - 2.2019

Name: AL-KO Comfort T13-93.7 HD - 127416 - Collector: 4.2018 - 2.2019
SKU: AK127416_8_4_2018_2_2019-group
Price: 0.68 GBP
Availability: InStock

Part No. AK127416_8_4_2018_2_2019-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort T13-93.7 HD - 127416 - Collector: 4.2018 - 2.2019

Description

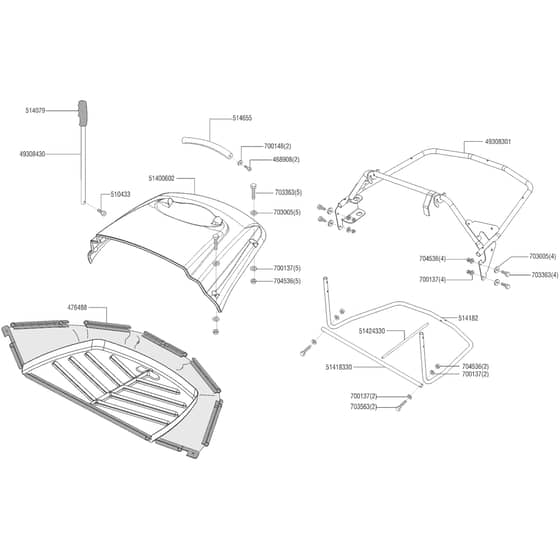

AL-KO Comfort T13-93.7 HD - 127416 - Collector - Parts Diagram

4.2018 - 2.2019

	Part No.	Details
468908	AK468908 Available to backorder	Bolt	£0.82 £0.68
476488	AK476488 Available to backorder	Solo Lower Box	£88.68 £73.90
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.70 £1.42
514079	AK514079 Available to backorder	Grip	£8.64 £7.20
514182	AK514182 Available to backorder	Rear Frame	£27.60 £23.00
514655	AK514655 Available to backorder	Handle	£8.64 £7.20
700137	AK700137 In stock	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
703363	AK703363 Available to backorder	Screw	£0.82 £0.68
703563	AK703563 Available to backorder	Screw M6x45	£0.84 £0.70
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
49308301	AK49308301 Available to backorder	Box Frame	£97.44 £81.20
49308430	AK49308430 In stock	Box Lever	£12.24 £10.20
51400602	AK51400602 Available to backorder	Red Box Cover	£87.60 £73.00
51418330	AK514183 In stock	Use Ak514183	£14.16 £11.80
51424330	AK51424330 Available to backorder	Bar	£7.56 £6.30
