AL-KO Comfort T1000 - 118329 - Body Work And Seat: 10.2003 - 4.2004

Name: AL-KO Comfort T1000 - 118329 - Body Work And Seat: 10.2003 - 4.2004
SKU: AK118329_1_10_2003_4_2004-group
Price: 0.66 GBP
Availability: InStock

Part No. AK118329_1_10_2003_4_2004-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort T1000 - 118329 - Body Work And Seat: 10.2003 - 4.2004

Description

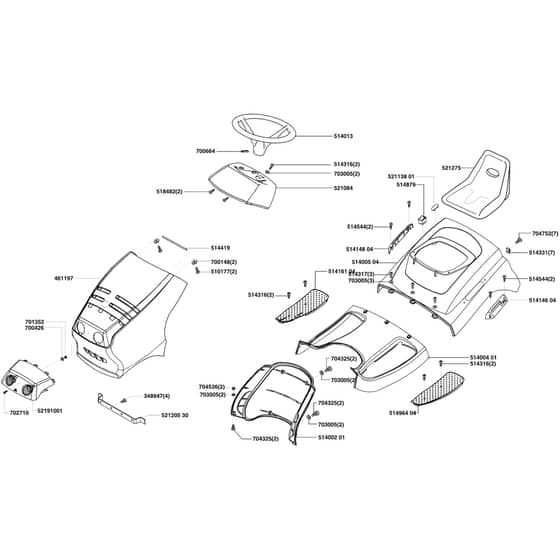

AL-KO Comfort T1000 - 118329 - Body Work And Seat - Parts Diagram

10.2003 - 4.2004

	Part No.	Details
348947	AK470375 Available to backorder	Screw	£0.86 £0.72
461197	AK461197 Available to backorder	Bonnet - Yellow	£160.44 £133.70
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
514013	AK514013 Available to backorder	Steering Wheel	£59.04 £49.20
514316	AK514316 Available to backorder	Screw	£1.42 £1.18
514317	AK514317 Available to backorder	Screw	£1.54 £1.28
514331	AK514331 Available to backorder	Nut	£1.44 £1.20
514544	AK514544 Available to backorder	Screw	£1.01 £0.84
514879	AK514879 In stock	Switch - Latching	£43.63 £36.36
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
521084	AK521084 Available to backorder	Dashboard	£40.44 £33.70
521275	AK514166 Available to backorder	Use Ak514166	£119.16 £99.30
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700426	AK700426 Available to backorder	Washer M4	£1.01 £0.84
700664	AK700664 Available to backorder	Pin	£1.76 £1.47
701352	AK701352 Available to backorder	Nut	£1.01 £0.84
702710	AK702710 Available to backorder	Screw	£0.84 £0.70
704325	AK700553 In stock	Use Ak700553	£0.79 £0.66
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704752	AK468569 Available to backorder	Use Ak468569	£1.48 £1.23
51400201	AK51400201 Available to backorder	Panel	£67.80 £56.50
51400401	AK46176201 Available to backorder	Use Ak46176201	£74.64 £62.20
51400504	AK52142504 Available to backorder	Use Ak52142504	£103.56 £86.30
51414604	AK521086 Available to backorder	Use Ak521086	£16.44 £13.70
51414804	AK521085 Available to backorder	Use Ak521085	£16.44 £13.70
51496404	AK51496401 Available to backorder	Use Ak51496401	£19.08 £15.90
52113801	AK52113801 Available to backorder	Cap	£2.03 £1.69
52120530	AK52120530 Available to backorder	Bracket > When Nil Nla	£8.76 £7.30
