AL-KO Comfort T10 - 118264 - Engine: before 12.2001

Description

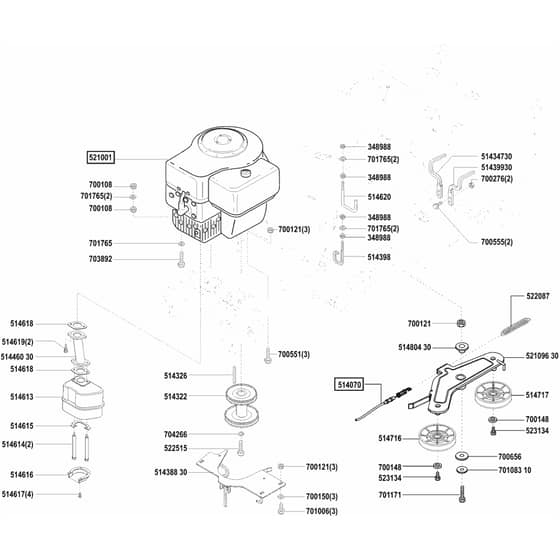

AL-KO Comfort T10 - 118264 - Engine - Parts Diagram

before 12.2001

	Part No.	Details
348988	AK692795 Available to backorder	Nut	£1.42 £1.18
514070	AK514070 Available to backorder	Tractor Clutch Cable	£28.44 £23.70
514322	AK514322 Available to backorder	Pulley	£70.68 £58.90
514326	AK514326 Available to backorder	Key	£1.66 £1.38
514398	AK514398 Available to backorder	Guide	£3.72 £3.10
514616	AK51461610 Available to backorder	Use Ak51461610	£9.72 £8.10
514617	AK51461710 Available to backorder	Use Ak51461710	£1.56 £1.30
514618	AK51461810 Available to backorder	Use Ak51461810	£2.58 £2.15
514620	AK514620 Available to backorder	Retaining Bracket	£12.84 £10.70
514716	AK464454 In stock	Use Ak464454	£28.84 £24.03
514717	AK464455 Available to backorder	Use Ak464455	£34.68 £28.90
522087	AK522087 In stock	Spring	£8.21 £6.84
522515	AK522515 Available to backorder	Screw 3/8Unf x 30	£7.80 £6.50
523134	AK523134 Available to backorder	Screw M6x12 St	£0.82 £0.68
700108	AK704533 Available to backorder	Nut - M8	£0.82 £0.68
700121	AK704537 In stock	Use Ak704537	£1.15 £0.96
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
700551	AK703891 Available to backorder	Use Ak500071	£4.08 £3.40
700555	AK700555 Available to backorder	Bolt	£0.82 £0.68
700656	AK705284 In stock	Use Ak705284	£3.88 £3.23
701006	AK704546 Available to backorder	Use Ak704546	£0.79 £0.66
701171	AK701171 Available to backorder	Screw M8x30	£1.01 £0.84
701765	AK700201 Available to backorder	Washer M8	£0.88 £0.73
703892	AK703892 Available to backorder	Screw	£3.23 £2.69
704266	AK705615 Available to backorder	Use Ak705615	£0.86 £0.72
51434730	AK514347 Available to backorder	Use Ak514347	£8.16 £6.80
51438830	AK51438830 Available to backorder	Plate	£74.52 £62.10
51439930	AK514399 Available to backorder	Use Ak514399	£9.84 £8.20
51480430	AK51480430 Available to backorder	Spacer	£3.14 £2.62
52109630	AK52109630 Available to backorder	Pulley Arm	£51.24 £42.70
70108310	AK701083 Available to backorder	Use Ak701083	£0.82 £0.68
