AL-KO Comfort T10 - 118264 - Body Work And Seat: before 12.2001

Description

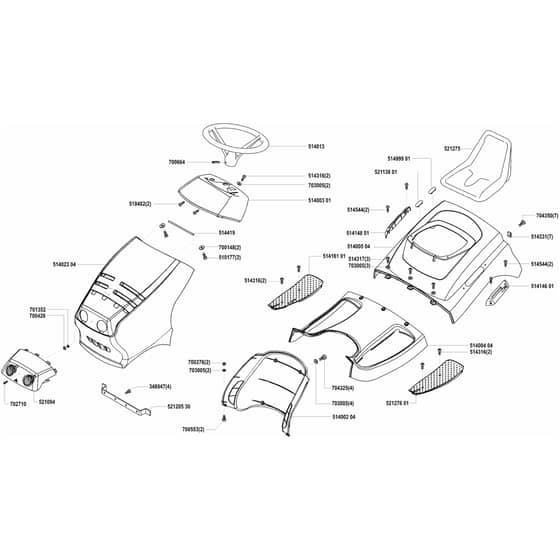

AL-KO Comfort T10 - 118264 - Body Work And Seat - Parts Diagram

before 12.2001

	Part No.	Details
348947	AK470375 Available to backorder	Screw	£0.86 £0.72
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
514013	AK514013 Available to backorder	Steering Wheel	£59.04 £49.20
514316	AK514316 Available to backorder	Screw	£1.42 £1.18
514317	AK514317 Available to backorder	Screw	£1.54 £1.28
514331	AK514331 Available to backorder	Nut	£1.44 £1.20
514544	AK514544 Available to backorder	Screw	£1.01 £0.84
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
521275	AK514166 Available to backorder	Use Ak514166	£119.16 £99.30
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700276	AK704536 Out of stock	Use Ak704536	£1.13 £0.94
700426	AK700426 Available to backorder	Washer M4	£1.01 £0.84
700553	AK700553 In stock	Screw M6x40	£0.79 £0.66
700664	AK700664 Available to backorder	Pin	£1.76 £1.47
701352	AK701352 Available to backorder	Nut	£1.01 £0.84
702710	AK702710 Available to backorder	Screw	£0.84 £0.70
704350	AK468569 Available to backorder	Use Ak468569	£1.48 £1.23
51400204	AK51400204 Available to backorder	Hood Bracket	£74.04 £61.70
51400301	AK521084 Available to backorder	Use Ak521084	£40.44 £33.70
51400404	AK51400404 Available to backorder	Front Middle Bracket	£99.96 £83.30
51400504	AK52142504 Available to backorder	Use Ak52142504	£103.56 £86.30
51402304	AK51402304 Available to backorder	Hood	£136.68 £113.90
51414601	AK521086 Available to backorder	Use Ak521086	£16.44 £13.70
51414801	AK521085 Available to backorder	Use Ak521085	£16.44 £13.70
51499901	AK51499901 Available to backorder	Cap	£1.90 £1.58
52113801	AK52113801 Available to backorder	Cap	£2.03 £1.69
52120530	AK52120530 Available to backorder	Bracket > When Nil Nla	£8.76 £7.30
52127601	AK52127601 Available to backorder	Foot Matt L/H	£21.60 £18.00
