AL-KO Comfort 468 SP-A Bio - 119835 - Main Assembly: 11.2017 - 2.2019

Name: AL-KO Comfort 468 SP-A Bio - 119835 - Main Assembly: 11.2017 - 2.2019
SKU: AK119835_1_11_2017_2_2019-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort 468 SP-A Bio - 119835 - Main Assembly: 11.2017 - 2.2019

Description

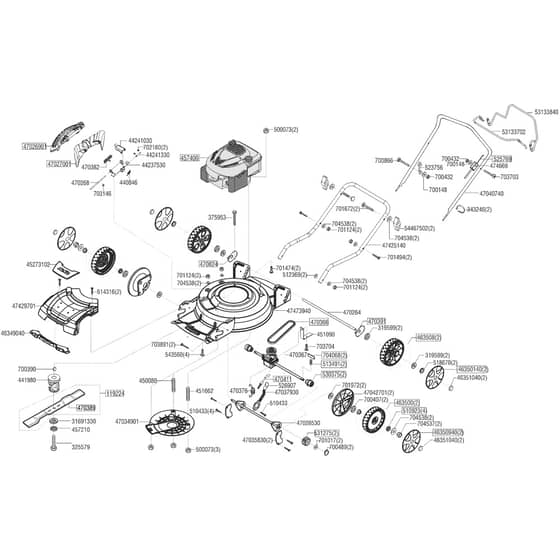

AL-KO Comfort 468 SP-A Bio - 119835 - Main Assembly - Parts Diagram

11.2017 - 2.2019

Be the first to review this product

0 product questions

	Part No.	Details
119224	AK119224 Available to backorder	Knife	£53.68 £44.73
319599	AK319599 Available to backorder	Washer	£1.10 £0.92
325579	AK457346 Available to backorder	Use Ak457346	£2.26 £1.88
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
375953	AK375953 Available to backorder	Screw M8x40	£2.32 £1.93
440846	AK440846 Available to backorder	Spring	£2.36 £1.97
441980	AK441980 Available to backorder	Blade Boss 22.2mm	£19.48 £16.23
450080	AK450080 Available to backorder	Grubscrew	£1.60 £1.33
451090	AK451090 Available to backorder	Bracket	£1.86 £1.55
451662	AK451662 Available to backorder	Bar Stud M8x55	£1.52 £1.27
457210	AK457210 Available to backorder	Nla - Washer	£0.84 £0.70
463500	AK463500 Available to backorder	Rear Drive Wheel	£23.94 £19.95
463508	AK463524 Available to backorder	Use Ak463524	£20.36 £16.97
470264	AK470264 Available to backorder	Axle	£7.88 £6.57
470268	AK47026830 Available to backorder	Bearing Rod Side Door	£5.74 £4.78
470366	AK470366 Available to backorder	Belt	£14.40 £12.00
470367	AK470367 Available to backorder	Gearbox	£121.26 £101.05
470376	AK470376 Available to backorder	Spring	£4.48 £3.73
470382	AK470382 Available to backorder	Spring	£5.28 £4.40
470389	AK470389 Available to backorder	Blade	£33.68 £28.07
470391	AK470391 Available to backorder	Spring Lh	£2.94 £2.45
470411	AK470411 Available to backorder	Cable	£21.20 £17.67
470824	AK470824 Available to backorder	Spring Rh	£2.94 £2.45
474669	AK474669 In stock	Cable Holder	£4.61 £3.84
500073	AK500073 In stock	Nut	£1.28 £1.07
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.66 £1.38
512369	AK512369 Available to backorder	Spacer	£1.18 £0.98
513491	AK513491 In stock	Spring	£0.78 £0.65
514316	AK514316 Available to backorder	Nla - Screw	£1.18 £0.98
518670	AK518670 Available to backorder	Washer 12mm	£1.50 £1.25
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
525769	AK525769 In stock	Opc Cable	£22.72 £18.93
526907	AK526907 Available to backorder	Black Knob	£3.06 £2.55
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700489	AK700489 In stock	Circlip	£0.78 £0.65
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701124	AK701124 Available to backorder	Dome Nut M8	£0.66 £0.55
701474	AK701474 Available to backorder	Screw	£0.70 £0.58
701494	AK701494 Available to backorder	Bolt	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702160	AK702160 Available to backorder	E-Clip	£1.02 £0.85
703146	AK703146 Available to backorder	Clip	£0.68 £0.57
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
703891	AK703891 Available to backorder	Screw	£3.90 £3.25
704068	AK704068 In stock	Pawl	£0.80 £0.67
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
31691330	AK31691330 Available to backorder	Washer	£2.70 £2.25
45273102	AK45273102 Available to backorder	Cover Alko Text( Ak45273140)	£5.28 £4.40
46349040	AK46349040 Available to backorder	Plate	£10.00 £8.33
46350140	AK46350140 Available to backorder	Wheel Cap	£2.82 £2.35
46350940	AK46350940 Available to backorder	Hub Cap	£2.54 £2.12
46351040	AK46351040 Available to backorder	Cap	£0.86 £0.72
47026530	AK47026530 Available to backorder	Rocker Arm Speed Front Delay	£26.44 £22.03
47026901	AK47026901 Available to backorder	Cover	£7.62 £6.35
47027001	AK47027001 In stock	Cover	£14.32 £11.93
47034901	AK47034901 Available to backorder	Plate	£8.64 £7.20
47035830	AK47035830 Available to backorder	Transmission Bracket	£8.64 £7.20
47037930	AK47037930 Available to backorder	Lever	£12.74 £10.62
47040740	AK47040740 Available to backorder	Upper Handle	£27.14 £22.62
47042701	AK47042701 Available to backorder	Back Plate	£3.74 £3.12
47425140	AK47425140 Available to backorder	Lower Handle	£33.60 £28.00
47429701	AK47429701 Available to backorder	Front Part	£17.82 £14.85
47473940	AK47473940 Available to backorder	Mulch Deck 460	£137.58 £114.65
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
53133840	AK53133840 Available to backorder	Drive Handle - Silver	£15.92 £13.27
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.94 £2.45
