AL-KO Comfort 468 P-A Bio - 119836 - Main Assembly: from 3.2019

Name: AL-KO Comfort 468 P-A Bio - 119836 - Main Assembly: from 3.2019
SKU: AK119836_1_from_3_2019-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort 468 P-A Bio - 119836 - Main Assembly: from 3.2019

Description

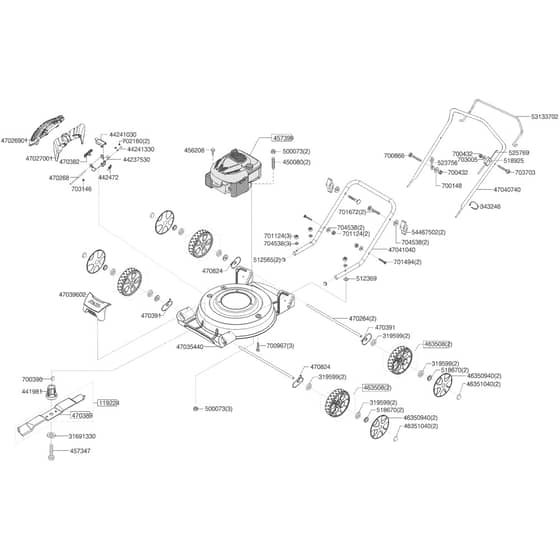

AL-KO Comfort 468 P-A Bio - 119836 - Main Assembly - Parts Diagram

from 3.2019

Be the first to review this product

0 product questions

	Part No.	Details
119224	AK119224 Available to backorder	Knife	£53.68 £44.73
319599	AK319599 Available to backorder	Washer	£1.10 £0.92
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
441981	AK441981 Available to backorder	Blade Boss 22mm	£19.86 £16.55
442472	AK442472 Available to backorder	Spring	£3.84 £3.20
450080	AK450080 Available to backorder	Grubscrew	£1.60 £1.33
456208	AK456208 Available to backorder	Bolt - Thread Cutting	£1.02 £0.85
457347	AK457347 Available to backorder	Bolt 3/8 Unf - 68	£2.94 £2.45
463508	AK463524 Available to backorder	Use Ak463524	£20.36 £16.97
470264	AK470264 Available to backorder	Axle	£7.88 £6.57
470268	AK47026830 Available to backorder	Bearing Rod Side Door	£5.74 £4.78
470382	AK470382 Available to backorder	Spring	£5.28 £4.40
470389	AK470389 Available to backorder	Blade	£33.68 £28.07
470391	AK470391 Available to backorder	Spring Lh	£2.94 £2.45
470824	AK470824 Available to backorder	Spring Rh	£2.94 £2.45
500073	AK500073 In stock	Nut	£1.28 £1.07
512369	AK512369 Available to backorder	Spacer	£1.18 £0.98
512565	AK512565 Available to backorder	Plug	£0.74 £0.62
518670	AK518670 Available to backorder	Washer 12mm	£1.50 £1.25
518925	AK474669 In stock	Cable Holder	£4.61 £3.84
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
525769	AK525769 In stock	Opc Cable	£22.72 £18.93
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
700967	AK700967 Available to backorder	Screw	£1.18 £0.98
701124	AK701124 Available to backorder	Dome Nut M8	£0.66 £0.55
701494	AK701494 Available to backorder	Bolt	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
702160	AK702160 Available to backorder	E-Clip	£1.02 £0.85
703146	AK703146 Available to backorder	Clip	£0.68 £0.57
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
704538	AK704538 In stock	Washer M8	£0.98 £0.82
31691330	AK31691330 Available to backorder	Washer	£2.70 £2.25
46350940	AK46350940 Available to backorder	Hub Cap	£2.54 £2.12
46351040	AK46351040 Available to backorder	Cap	£0.86 £0.72
47026901	AK47026901 Available to backorder	Cover	£7.62 £6.35
47027001	AK47027001 In stock	Cover	£14.32 £11.93
47035440	AK47035440 Available to backorder	Deck 46 Premier Bio	£126.54 £105.45
47039602	AK47039602 Available to backorder	Front Al-Ko Logo	£11.82 £9.85
47040740	AK47040740 Available to backorder	Upper Handle	£27.14 £22.62
47041040	AK47041040 Available to backorder	Lower Handle	£26.28 £21.90
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.94 £2.45
