AL-KO Comfort 46 BR - 119309 - Main Assembly: from 6.2011

Name: AL-KO Comfort 46 BR - 119309 - Main Assembly: from 6.2011
SKU: AK119309_1_from_6_2011-group
Price: 0.34 GBP
Availability: InStock

Part No. AK119309_1_from_6_2011-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort 46 BR - 119309 - Main Assembly: from 6.2011

Description

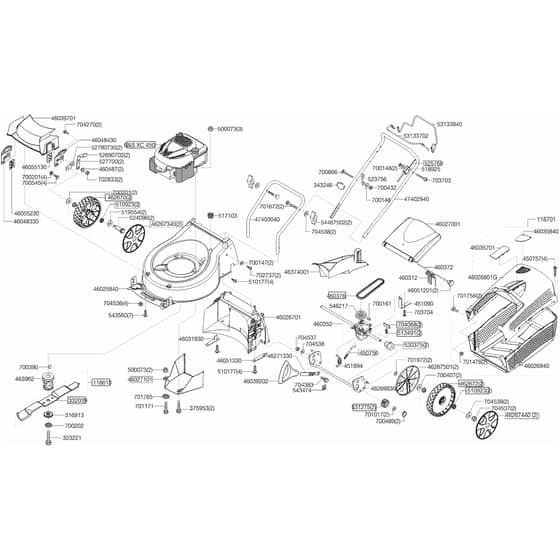

AL-KO Comfort 46 BR - 119309 - Main Assembly - Parts Diagram

from 6.2011

	Part No.	Details
52690702	AK526907 Available to backorder	Knob	£3.18 £2.65
118701	AK118701 Available to backorder	Grass Box Complete Black	£79.20 £66.00
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
323221	AK457347 Available to backorder	Bolt	£3.20 £2.67
332039	AK440125 In stock	Blade 18"	£38.66 £32.22
343246	AK523982 Available to backorder	Use Ak523982	£0.41 £0.34
375953	AK375953 In stock	Screw M8x40	£2.36 £1.97
450756	AK450756 In stock	Gearbox Cable	£21.64 £18.03
450757	AK450757 Available to backorder	Screw 20mm	£1.01 £0.84
451090	AK451090 Available to backorder	Bracket	£1.86 £1.55
451994	AK451994 In stock	Spring	£2.52 £2.10
460312	AK460312 In stock	Spring	£6.84 £5.70
460352	AK460352 In stock	Gearbox C/W Pulley	£72.62 £60.52
460372	AK460372 In stock	Rod	£1.88 £1.57
460376	AK460376 In stock	Belt	£17.16 £14.30
462670	AK462670 In stock	Front Wheel - 200mm	£21.88 £18.23
462672	AK474783 Available to backorder	Use Ak470784	£23.16 £19.30
463962	AK463962 Out of stock	Blade Holder - 22mm	£21.48 £17.90
500073	AK500073 In stock	Nut	£1.48 £1.23
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
513491	AK513491 In stock	Spring	£0.88 £0.73
517103	AK517103 Available to backorder	Cable Grommet	£1.92 £1.60
518925	AK474669 In stock	Cable Holder	£4.36 £3.63
519554	AK519554 In stock	Spacer	£1.55 £1.29
523756	AK523756 In stock	Guide	£2.57 £2.14
524096	AK524096 In stock	Wheel Bolt	£3.41 £2.84
525769	AK525769 In stock	Opc Cable	£21.64 £18.03
527700	AK52770030 Available to backorder	Use Ak52770030	£7.20 £6.00
530375	AK530375 Available to backorder	Bush	£9.36 £7.80
531275	AK531275 Available to backorder	Pinion	£15.72 £13.10
543474	AK543474 In stock	Circlip	£0.88 £0.73
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
546217	AK546217 Available to backorder	Pulley	£14.40 £12.00
700147	AK703451 In stock	Washer	£1.03 £0.86
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700161	AK705986 Available to backorder	Roll Pin	£1.54 £1.28
700201	AK700201 Available to backorder	Washer M8	£0.88 £0.73
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700407	AK700407 Available to backorder	Washer M12	£0.84 £0.70
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700489	AK700489 In stock	Circlip	£0.89 £0.74
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700866	AK700866 Available to backorder	Screw M6x30	£0.89 £0.74
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.84 £0.70
701171	AK701171 Available to backorder	Screw M8x30	£1.01 £0.84
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701672	AK701672 In stock	Screw M8x45	£1.72 £1.43
701756	AK701756 Available to backorder	Screw M5x10	£0.82 £0.68
701972	AK701972 Available to backorder	Washer 13mm	£0.82 £0.68
702737	AK702737 In stock	Screw St4.8x19mm	£1.14 £0.95
702833	AK704537 In stock	Use Ak704537	£1.15 £0.96
703703	AK703703 Available to backorder	Screw	£1.01 £0.84
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.82 £0.68
704068	AK704068 In stock	Pawl	£0.88 £0.73
704270	AK704270 Available to backorder	Screw M8x25	£1.01 £0.84
704383	AK704383 Available to backorder	Screw M8x22	£0.82 £0.68
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704538	AK704538 In stock	Washer M8	£1.09 £0.91
46025840	AK46025840 Available to backorder	Housing - No Side Discharge	£81.60 £68.00
46026701	AK46026701 In stock	Rear Frame	£28.72 £23.93
46026940	AK46026901 Available to backorder	Lower Box (Grey)	£27.00 £22.50
46027001	AK46027001 Available to backorder	Grassbox Flap	£15.00 £12.50
46027101	AK46027101 In stock	Belt Cover	£13.31 £11.09
46031830	AK460318 Available to backorder	Bracket R/H	£8.64 £7.20
46035701	AK46035701 Available to backorder	Cover	£1.42 £1.18
46035840	AK46035801 Available to backorder	Use Ak46035801	£1.39 £1.16
46039202	AK46039202 Available to backorder	Red Handle Height Adj	£8.16 £6.80
46039701	AK46026601 Available to backorder	Front Cover	£12.48 £10.40
46048330	AK46048330 Available to backorder	Quadrant	£16.20 £13.50
46048430	AK46048430 Available to backorder	Quadrant	£7.92 £6.60
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.50 £1.25
46051330	AK460513 Available to backorder	Bracket L/H	£9.00 £7.50
46055130	AK46055130 Available to backorder	Wheel Bracket	£6.48 £5.40
46055230	AK46055230 Available to backorder	Wheel Bracket	£7.08 £5.90
46267340	AK46267340 Available to backorder	Wheel Cap - 200mm	£3.24 £2.70
46267440	AK46267440 Available to backorder	Wheel Cap	£7.08 £5.90
46267501	AK46267501 Available to backorder	Back Plate	£4.44 £3.70
46269830	AK46269830 Available to backorder	Rear Axle	£38.88 £32.40
46271330	AK46271330 Available to backorder	Lever	£12.12 £10.10
46374001	AK46374001 Available to backorder	Mulch Wedge - 46cm	£17.64 £14.70
47402940	AK453818 Available to backorder	Use Ak453818	£52.08 £43.40
47403040	AK47403040 Available to backorder	Lower Handle	£24.24 £20.20
52780730	AK52780730 In stock	Bracket	£5.39 £4.49
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
53133840	AK5313381014 In stock	Drive Handle - Silver (Wnu)	£16.56 £13.80
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.95 £2.46
