AL-KO Comfort 42.0 P-A - 119935 - Main Assembly

Name: AL-KO Comfort 42.0 P-A - 119935 - Main Assembly
SKU: AK119935_1-group
Price: 0.34 GBP
Availability: InStock

Part No. AK119935_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort 42.0 P-A - 119935 - Main Assembly

Description

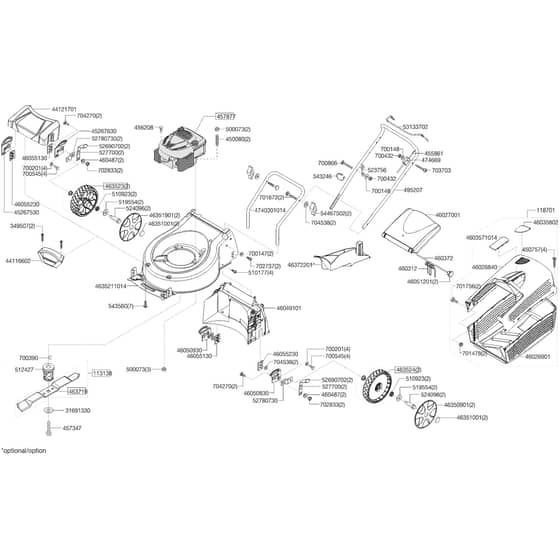

AL-KO Comfort 42.0 P-A - 119935 - Main Assembly - Parts Diagram

	Part No.	Details
52690702	AK526907 Available to backorder	Knob	£3.18 £2.65
113138	AK463719 In stock	Spare Blade -463719- Rm 42 cm	£33.56 £27.97
118701	AK118701 Available to backorder	Grass Box Complete Black	£79.20 £66.00
343246	AK523982 Available to backorder	Use Ak523982	£0.41 £0.34
349507	AK349507 Available to backorder	Screw 25mm	£0.82 £0.68
450080	AK450080 Available to backorder	Grubscrew	£1.74 £1.45
450757	AK450757 Available to backorder	Screw 20mm	£1.01 £0.84
455861	AK455861 In stock	Cable	£21.64 £18.03
456208	AK456208 Available to backorder	Bolt - Thread Cutting	£1.22 £1.02
457347	AK457347 Available to backorder	Bolt 3/8 Unf - 68	£3.20 £2.67
460312	AK460312 In stock	Spring	£6.84 £5.70
460372	AK460372 In stock	Rod	£1.88 £1.57
463523	AK463523 In stock	Front Wheel - 180mm	£19.64 £16.37
463524	AK463524 Available to backorder	Rear Wheel Assy	£21.48 £17.90
474669	AK474669 In stock	Cable Holder	£4.36 £3.63
495207	AK495207 Available to backorder	Handle	£38.28 £31.90
500073	AK500073 In stock	Nut	£1.48 £1.23
510177	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
512427	AK512427 Available to backorder	Blade Boss 22mm	£17.28 £14.40
519554	AK519554 In stock	Spacer	£1.55 £1.29
523756	AK523756 In stock	Guide	£2.57 £2.14
524096	AK524096 In stock	Wheel Bolt	£3.41 £2.84
527700	AK52770030 Available to backorder	Use Ak52770030	£7.20 £6.00
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
700147	AK703451 In stock	Washer	£1.03 £0.86
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700201	AK700201 Available to backorder	Washer M8	£0.88 £0.73
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700866	AK700866 Available to backorder	Screw M6x30	£0.89 £0.74
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701672	AK701672 In stock	Screw M8x45	£1.72 £1.43
701756	AK701756 Available to backorder	Screw M5x10	£0.82 £0.68
702737	AK702737 In stock	Screw St4.8x19mm	£1.14 £0.95
702833	AK704537 In stock	Use Ak704537	£1.15 £0.96
703703	AK703703 Available to backorder	Screw	£1.01 £0.84
704270	AK704270 Available to backorder	Screw M8x25	£1.01 £0.84
704538	AK704538 In stock	Washer M8	£1.09 £0.91
31691330	AK31691330 Available to backorder	Washer	£2.96 £2.47
44116602	AK44116602 Available to backorder	Ak44116602	£9.36 £7.80
44121701	AK44121701 Available to backorder	Cover	£16.08 £13.40
45267530	AK45267530 Available to backorder	Height Quadrant	£7.32 £6.10
45267630	AK45267630 Available to backorder	Height Quadrant	£7.32 £6.10
46026901	AK46026901 Available to backorder	Lower Box (Black)	£27.00 £22.50
46027001	AK46027001 Available to backorder	Grassbox Flap	£15.00 £12.50
46035802	AK46035801 Available to backorder	Cover - Red	£1.39 £1.16
46049101	AK46049101 Available to backorder	Casing	£30.48 £25.40
46050830	AK46050830 Available to backorder	Quadrant	£7.92 £6.60
46050930	AK46050930 Available to backorder	Quadrant	£6.12 £5.10
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.50 £1.25
46055130	AK46055130 Available to backorder	Wheel Bracket	£6.48 £5.40
46055230	AK46055230 Available to backorder	Wheel Bracket	£7.08 £5.90
46350901	AK46350901 Available to backorder	Wheel Cover - Back	£5.40 £4.50
46351001	AK46351040 Available to backorder	Use Ak46351040	£0.89 £0.74
46351901	AK46351901 Available to backorder	Wheel Cover - Front	£5.40 £4.50
46372201	AK46372201 Available to backorder	Mulch Plug	£17.16 £14.30
52780730	AK52780730 In stock	Bracket	£5.39 £4.49
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.95 £2.46
2147483647	AK4740301014 Available to backorder	Lower Handle	£24.36 £20.30
2147483647	AK4635211014 Available to backorder	Housing Anthracite	£78.36 £65.30
2147483647	AK4603571014 Available to backorder	Cover Anthracite	£1.42 £1.18
