AL-KO Comfort 18-103.2 HD - 123016 - Seat: 4.2023 - 11.2023

Description

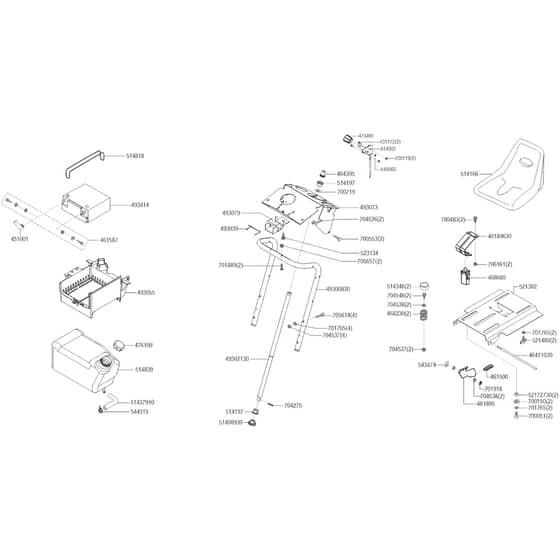

AL-KO Comfort 18-103.2 HD - 123016 - Seat - Parts Diagram

4.2023 - 11.2023

	Part No.	Details
451001	AK451001 Available to backorder	Terminal Cover	£3.72 £3.10
461500	AK461500 Available to backorder	Spring	£4.32 £3.60
461587	AK461587 Available to backorder	Bolts For Battery	£0.84 £0.70
461895	AK461895 Available to backorder	Plate	£16.68 £13.90
464305	AK464305 Available to backorder	Spacer	£6.96 £5.80
468230	AK468230 Available to backorder	Seat Spring	£3.12 £2.60
468680	AK493565 In stock	Switch - Black	£18.50 £15.42
473491	AK473491 Available to backorder	Grip	£5.04 £4.20
476109	AK476109 Available to backorder	Fuel Cap	£6.84 £5.70
493039	AK493039 Available to backorder	Wire Clip	£4.56 £3.80
493055	AK493055 Available to backorder	Battery Box	£15.48 £12.90
493073	AK493073 Available to backorder	Dash Bracket	£39.72 £33.10
493079	AK493079 Available to backorder	Bonnet Catch	£6.36 £5.30
493414	AK494458VA Available to backorder	Battery - 12V/20Ah (Alt Egmb-Lslc22-12)	£126.48 £105.40
514166	AK514166 Available to backorder	Seat	£119.16 £99.30
514197	AK514197 In stock	Bushing	£4.61 £3.84
514346	AK514346 In stock	Cap	£1.69 £1.41
514382	AK514382 In stock	Cable - Single Cylinder	£21.72 £18.10
514818	AK514818 Available to backorder	Rubber Strap F. Battery	£5.28 £4.40
514839	AK457706 Available to backorder	Use Ak521794	£70.80 £59.00
521302	AK521302 Available to backorder	Bracket Without Spring	£26.52 £22.10
521480	AK521480 Available to backorder	Wingnut	£2.21 £1.84
523134	AK523134 Available to backorder	Screw M6x12 St	£0.82 £0.68
543474	AK543474 In stock	Circlip	£0.88 £0.73
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
544515	AK544515 Available to backorder	Clip	£0.84 £0.70
700051	AK700051 Available to backorder	Screw M8x20	£0.82 £0.68
700119	AK700119 Available to backorder	Nut M5	£1.85 £1.54
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700483	AK700483 Available to backorder	Screw M6x12 Din933	£0.82 £0.68
700553	AK700553 In stock	Screw M6x40	£0.79 £0.66
700719	AK700719 Available to backorder	Washer 22mm	£1.66 £1.38
701172	AK701172 Available to backorder	Screw	£0.58 £0.48
701489	AK703363 Available to backorder	Use Ak703363	£0.82 £0.68
701765	AK700201 Available to backorder	Washer M8	£0.88 £0.73
701918	AK701918 Available to backorder	Washer	£1.01 £0.84
704275	AK704275 In stock	Roll Pin	£1.08 £0.90
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
704537	AK704537 In stock	Lock Nut M8	£1.15 £0.96
704538	AK704538 In stock	Washer M8	£1.09 £0.91
704546	AK704546 Available to backorder	Screw M8x20	£0.79 £0.66
705614	AK705614 Available to backorder	Bolt	£1.01 £0.84
705657	AK705657 In stock	Nut M6	£1.37 £1.14
706161	AK706161 Available to backorder	Nut	£0.84 £0.70
46189630	AK46189630 Available to backorder	Spring	£12.12 £10.10
46411030	AK46411030 Available to backorder	Support Rod	£17.04 £14.20
49300830	AK49300830 Available to backorder	Pedestal Frame	£34.44 £28.70
49302130	AK49302130 Available to backorder	Steering Shaft	£43.20 £36.00
51400930	AK51400930 In stock	Pinion	£23.99 £19.99
51437910	AK51437910 Available to backorder	Fuel Line	£8.88 £7.40
52172730	AK52172730 Available to backorder	Spacer	£1.79 £1.49
