AL-KO Comfort 18-103.2 HD - 123016 - Grass Collector: 9.2021 - 11.2022

Name: AL-KO Comfort 18-103.2 HD - 123016 - Grass Collector: 9.2021 - 11.2022
SKU: AK123016_8_9_2021_11_2022-group
Price: 0.68 GBP
Availability: InStock

Part No. AK123016_8_9_2021_11_2022-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort 18-103.2 HD - 123016 - Grass Collector: 9.2021 - 11.2022

Description

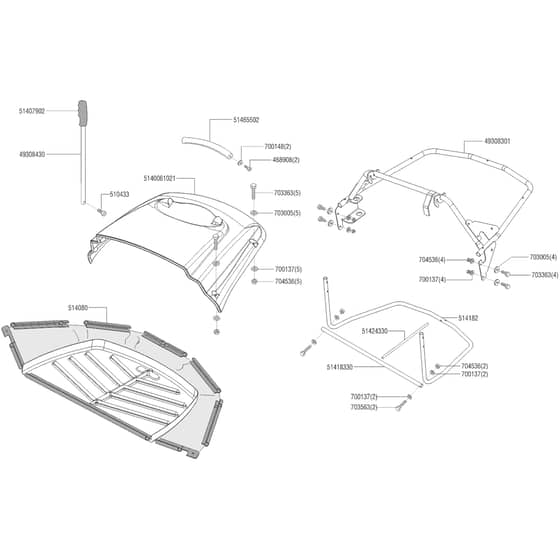

AL-KO Comfort 18-103.2 HD - 123016 - Grass Collector - Parts Diagram

9.2021 - 11.2022

	Part No.	Details
468908	AK468908 Available to backorder	Bolt	£0.82 £0.68
510433	AK510433 Available to backorder	Allen Screw 6x12	£1.70 £1.42
514006	AK51400602 Available to backorder	Top	£87.60 £73.00
514080	AK514080 Available to backorder	Grassbox Bottom	£88.68 £73.90
514182	AK514182 Available to backorder	Rear Frame	£27.60 £23.00
700137	AK700137 In stock	Washer M6	£1.08 £0.90
700148	AK700148 In stock	Washer M6	£0.86 £0.72
703363	AK703363 Available to backorder	Screw	£0.82 £0.68
703563	AK703563 Available to backorder	Screw M6x45	£0.84 £0.70
704536	AK704536 Out of stock	Nut M6	£1.13 £0.94
49308301	AK49308301 Available to backorder	Box Frame	£97.44 £81.20
49308430	AK49308430 In stock	Box Lever	£12.24 £10.20
51407902	AK51407902 Available to backorder	Handle	£8.88 £7.40
51418330	AK514183 In stock	Use Ak514183	£14.16 £11.80
51424330	AK51424330 Available to backorder	Bar	£7.56 £6.30
